Pneumatic filter 3/8 20 EVO series automatic drain : Aignep: ADAJUSA : price
Pneumatic filter 3/8 20 EVO series automatic drain : Aignep: ADAJUSA : price

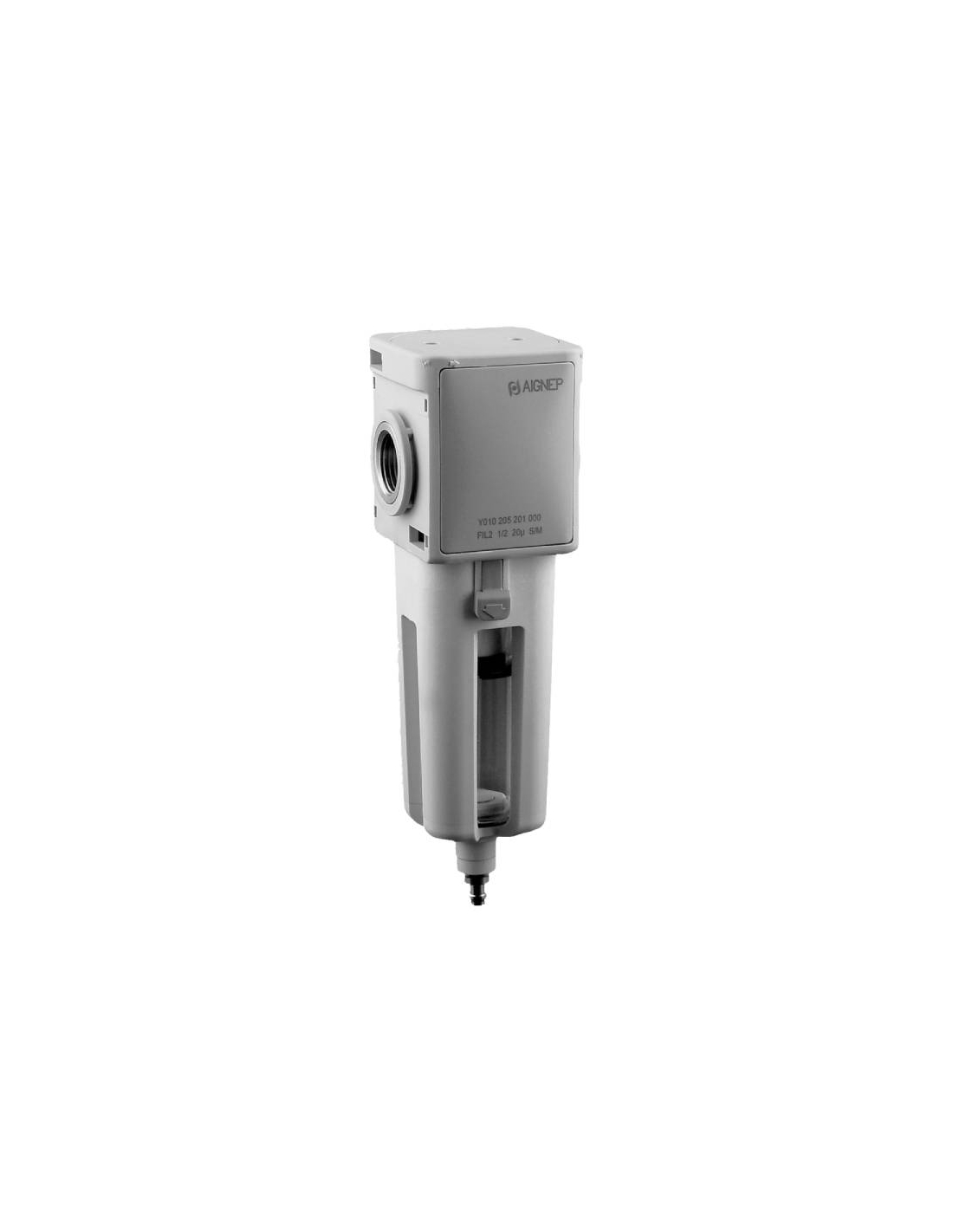

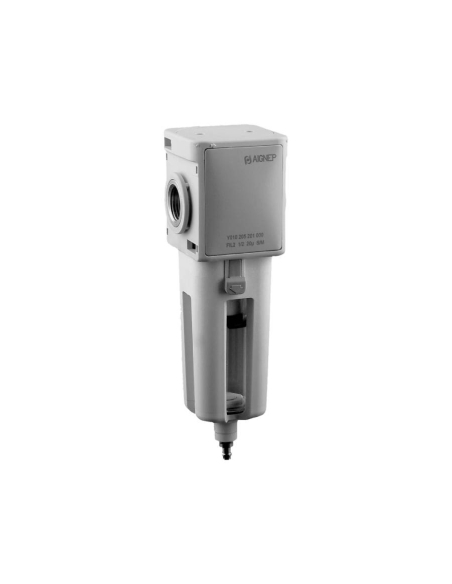

Filter 3/8 20 micron automatic purge size 1 FRL EVO series - Aignep

€54.03 Tax included

44.29 tax excl.

Y010104202000

3/8 filter, with a filtration degree of 20μm and automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor .These filter cups are made of technopolymer with metal endings. Made in Italy.

Series: FRL Evo
Part number: Y010104202000

Simbolo neumatico filtro Adajusa
Logotipo Aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/8 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the aircompressor .Compact size (T1). Automatic drain type, discharges condensate when it reaches the maximum allowable level regardless of operating pressure.

Features:

  • Manufacturer: Aignep
  • Manufacturer's part number: Y010104202000
  • Threaded drive: 3/8"
  • Unit size: size 1.
  • Filtration degree: 20 μm
  • Maximum inlet pressure: 15 bar
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 2500
  • Fluid: Compressed air or other inert gases
  • Cup capacity (condensing) (cm3): 28
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA 2
Gauges and measurement elements

Manometer 40 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP4318012
€5.98 (€4.90 tax excl.)
Pressure gauge diameter 40 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP4318012 Representative image for illustrative purposes,...
Filter-regulator 3/8 T1 Syntesi - Metal work - ADAJUSA
Syntesi regulator filter

Pneumatic filter-regulator 3/8 0-8 bar automatic drain Syntesi series - Metal Work

Metal Work
5613B443
€71.68 (€58.75 tax excl.)
Filter with 3/8 pneumatic pressure regulator, 3/8 maintenance unit for pneumatic applications, automatic drain, compact size (SY1) and regulation range 0-8 kg/cm2, filtration degree of 5 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series: Synthesis Reference:...
Pneumatic regulating filter 1/4 FRL MINI T030003231000 - Aignep | ADAJUSA | price
Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-8 bar series FRL MINI - Aignep

Aignep
T030003231000
€31.20 (€25.57 tax excl.)
Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size and regulation range 0-8 kg/cm2, filtration degree of 20 μm . These filtering groups are manufactured in technopolymer and with metallic terminations. Made in ItalySeries: FRL MiniReference: T030003231000 Representative image...
Pneumatic filter regulator 1/4 semi-automatic drain EVO series - Aignep | ADAJUSA : price
Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-8 bar semi-automatic purge size 1 FRL EVO series - Aignep

Aignep
Y030103231000
€53.42 (€43.79 tax excl.)
Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size (T1) and regulation range 0-8 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy.Series: FRL Evo Reference: Y030103231000 Representative image for...

16 other products in the same category:

Filter-regulator 3/8 T1 Syntesi - Metal work - ADAJUSA
Filter groups of 3/8 FR-L

Pneumatic filter-regulator 3/8 0-8 bar semi-automatic drain Syntesi series - Metal Work

Metal Work
5613B243
€47.28 (€38.75 tax excl.)
Filter with 3/8 pneumatic pressure regulator, 3/8 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) and regulation range 0-8 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Pressure regulator 1/4 0-12 bar technopolymer - Metal Work
Filter groups of 3/8 FR-L

Pressure regulator 3/8 0-12 bar size 2 Syntesi technopolymer - Metal Work

Metal Work
5623R163
€47.63 (€39.04 tax excl.)
3/8 pressure regulator regulation 0-12, size 2, body in technopolymer extreme reliability. Allows stability of the output pressure at the preset pressure. Possibility of fixing through side holes. Padlock locking system. Syntesi Group Reference: 5623R163 Representative image for illustrative purposes, the supplied article will correspond to the...
Filter 3/8 20 RA Size 2 Syntesi Metal Work - ADAJUSA
Filter groups of 3/8 FR-L

Filter 3/8 20 microns automatic drain size 2 Syntesi series - Metal Work

Metal Work
5623F503
€62.78 (€51.46 tax excl.)
3/8 filter, with a filtration degree of 20μm and automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5623F503Representative image for illustrative...

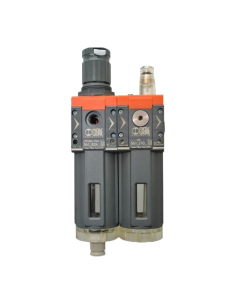

Filter + Lubricator T1 RA Syntesi - Metal Work - ADAJUSA
