Filter 3/8 metallic 20 microns semi-automatic purge New Deal - Metal Work

€45.59 Tax included

37.37 tax excl.

1321006

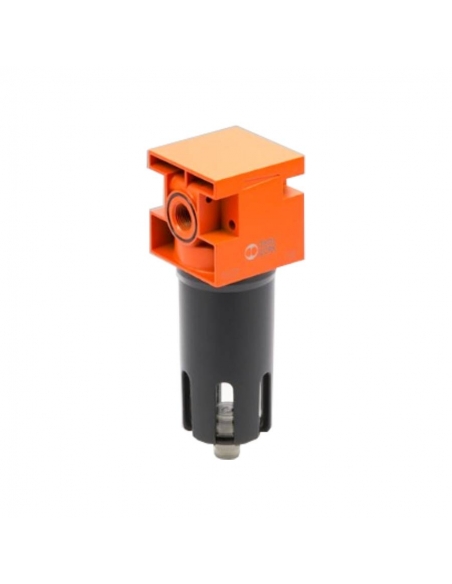

Filter 3/8 metallic  with a filtration degree of 20μm and semi-automatic discharge, for the retention of solid or liquid impurities from the air compressor. These filter cups are made of metal with excellent resistance to corrosion. European manufacturing.

Series: New Deal
Reference: 1321006

metal work logo


Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Metal filter cup, 3/8, with a filtration degree of 20μm to retain solid or liquid impurities from the air compressor. The type of purge is semi-automatic, it discharges when the pressure in the filter approaches zero.

Characteristic:

  • Manufacturer: Metal Work
  • Reference: 1321006 - FIL 3/8 20 RMSA
  • Threaded coupling : 3/8
  • Metal glass with external viewer.
  • RMSA: Manual condensate drain and automatic discharge when pressure is removed.
  • Maximum inlet pressure: 18 bar .
  • Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) : 3100 Nl/min.
  • Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi): 4100 Nl/min.
  • Filtration degree: 20 microns.
  • Maximum temperature at 1 MPa; bar ; 145psi: 50ºC
  • Bowl capacity: 45 cm3

For other sizes and models consult.

dimensiones filtro 3/8 y 1/2

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
