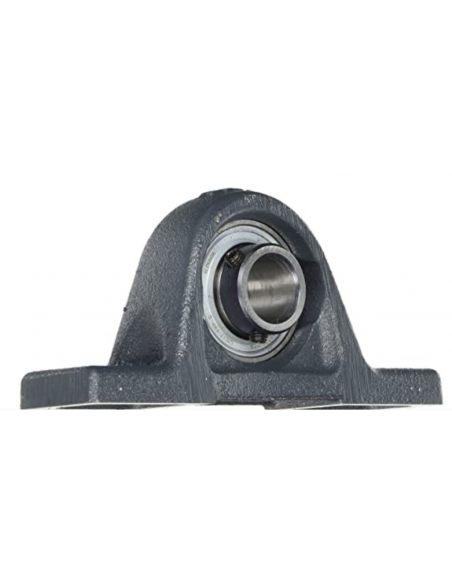

Support with bearing axis 40mm RASEY - INA
Support with bearing axis 40mm RASEY - INA

Support with shaft bearing 40mm RASEY - INA

€58.81 Tax included

€48.60 tax excl.

Cast iron support with inserted RASEY bearing for a 40mm diameter shaft, self-aligning gray cast iron support support with inserted ball bearing, with grub screws on the inner ring, sheet metal seal fitted with a nitrile rubber lip, type R.

Manufacturer: INA - Schaeffler

Reference: RASEY40-XL-N




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Self-aligning support bracket in gray cast iron with insert already assembled, type RASEY40-XL-N, for Ø40mm shaft. Gray cast iron support with self-aligning bearing with grub screws on the inner ring.

The inserted bearing (insert) of balls in steel. These bearings are grooved. Its outer rings have a spherical surface that is free to oscillate on the support track, this oscillation allows self-alignment in the support housing and compensates for any misalignment and eliminates, as much as possible, unwanted stresses between the shaft and the support. The fixing of the bearing to the shaft is carried out by means of two hexagonal Allen screws displaced 120º. Easy assembly and disassembly.

The sealing of the bearing is guaranteed by a gasket made up of a sheet steel washer equipped with a nitrile rubber lip, "R" type seal, the bearing mounts a gasket on each side.

The support is supplied with the bearing already mounted. The supply includes:

  • Support designation ASE08-N
  • Bearing nomination GYE40-XL-KRR-B

Main dimensions:

RASEY bearing dimensions

  • d: 40mm
  • L: 179mm
  • H2: 99mm
  • A: 48mm
  • A1: 30mm
  • B: 49.2mm
  • H: 49.2mm
  • H1: 19mm
  • J: 138.25mm
  • N: 14mm
  • N1: 26mm
  • Q: Rp 1/8
  • S1: 30.2mm

For other references or models consult.



Material for professional use, install in compliance with the regulations in force at the installation site.
