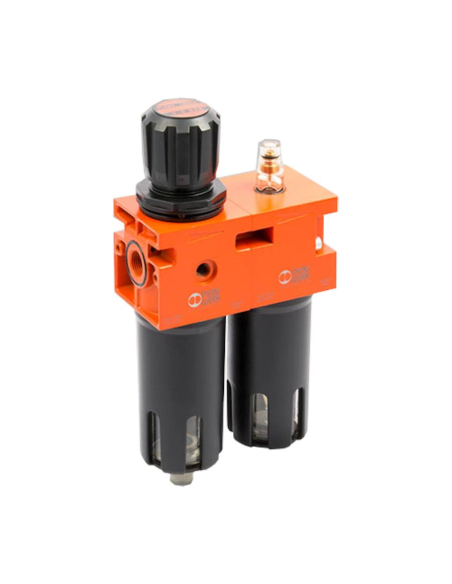

Pneumatic filter group 1/2 regulation 0-16 bar semi-automatic purge New Deal series - Metal Work

Name: Pneumatic filter group 1/2 regulation 0-16 bar semi-automatic purge New Deal series - Metal Work
Brand: Metal Work
SKU: 1426062
Price: 122.9394 EUR
Availability: PreOrder

€122.94 Tax included

€100.77 tax excl.

1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size in 2 modules (FR+L) and regulation range 0-16 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.

Series: New Deal
Reference: 1426062

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size in 2 modules (FR+L).
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum and with plastic tanks with metal protection.
The type of purge is manual and automatic when the pressure is removed.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristic:

Manufacturer: Metal Work
Reference: 1426062
Number of elements: 2 (FR+L).
Thread size: 1/2"
Condensate drain type: RMSA
Metal glass with external viewer.
Built-in overpressure bleed valve.
Adjustment range ( bar ): 0 ÷ 16
Filtration degree ( μm) : 20
Maximum inlet pressure (MPa / bar / psi): 1.8 / 18 / 261
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 1300
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) ( Nl/min): 2200
max temperature at 1MPa; bar ; 145psi ( °C): 50

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
