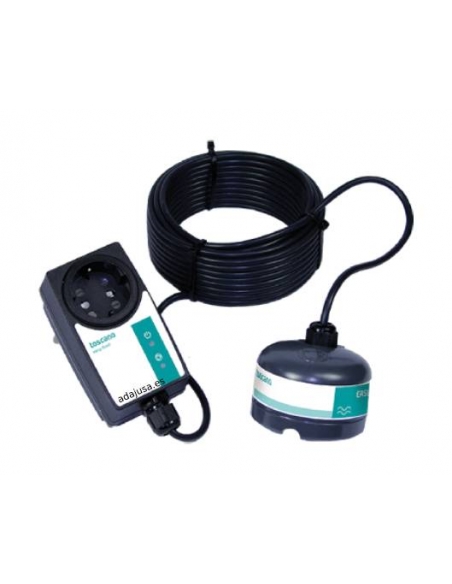

EASY-FLOOD Plug-in Flood Control - Toscano

Plug-in flood level monitor ideal for the total drying of flat surfaces where there is no manhole available to accommodate a pump (garages, basements, laundries, roofs, parking lots, sidewalks, services, etc.). The level probe integrated into the sensor detects a minimum liquid level of 3 mm.

Automatic pumping against water levels above 3 mm to prevent flooding of rooms or premises due to rain, defective pipes or washing machine failures.

100% plug-and-play,allows you to start and stop the pump automatically by means of a timed level probe.

Technical specifications:

• Manufacturer: Toscano

• Reference: EASY-FLOOD
• Signaling: Running pump pilot, voltage pilot
• Control input: Flood sensor with 10m cable
• Output: Base direct plug to pump
• Power supply: 230Vac - 50/60Hz
• Maximum pump intensity: 12A
• Probe voltage: 12Vac
• Probe Sensitivity: Fixed 10Kohm
• Pump start delay (wave protection): Fixed 5 seconds
• Pump disconnection delay time: Fixed 25 seconds
• Cable safety voltage: 12Vac (very low voltage)
• Degree of protection: IP68 (sensor) / IP40 (controller)
• Working temperature: 0ºC to +80ºC
• Insulation class: Class 2 device
• Dimensions: 62x126x73mm
• Weight: 960 gr

Principle of operation:

When the liquid level rises above the sensor, the relay (pump) is connected after a fixed delay of 5 seconds and remains connected until the liquid level drops below the sensor for a fixed delay of 25 seconds. If the liquid level rises above the sensor before the fixed delay of 25 seconds has elapsed, the relay remains connected.



Dimensions:




To expand the information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
