€43.66 Tax included

€35.79 tax excl.

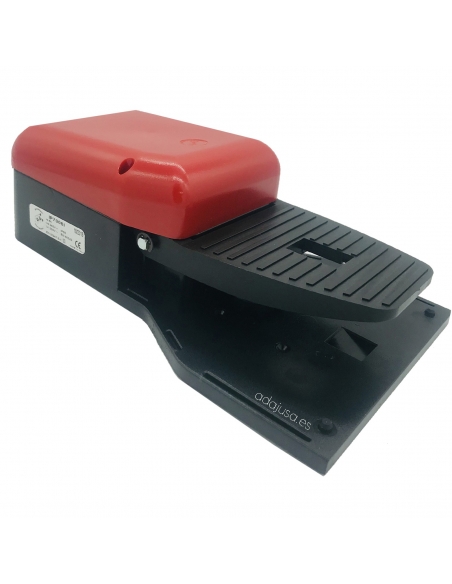

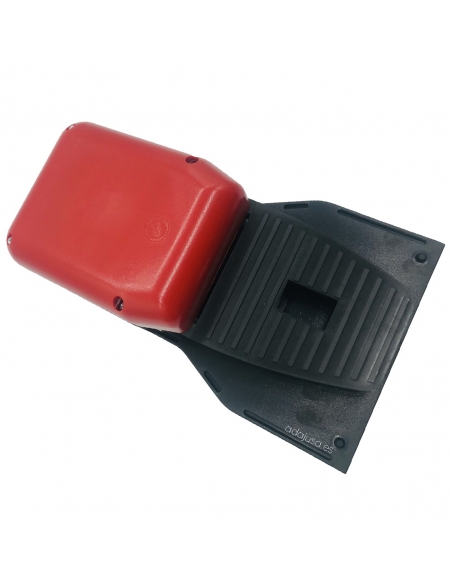

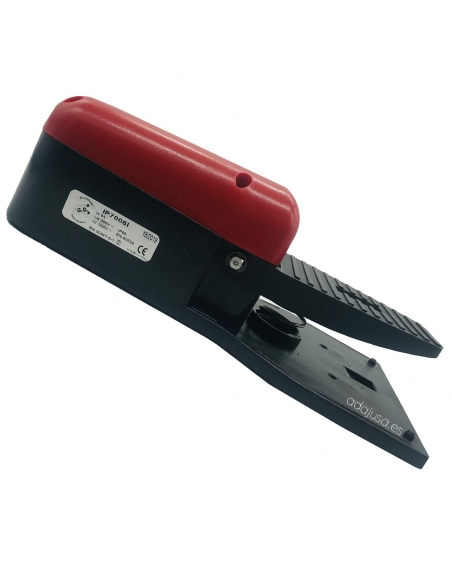

Electric pedal of instant action and without protective cover, made of thermoplastic. 1 no (NA) and another nc (NC).

Pedal switches are used as control switches for machines and equipment when the operator needs to have a free hand.

Color: red (RAL 3020)

Reference: IP7006I

Esquema-electrico-NO-NC

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

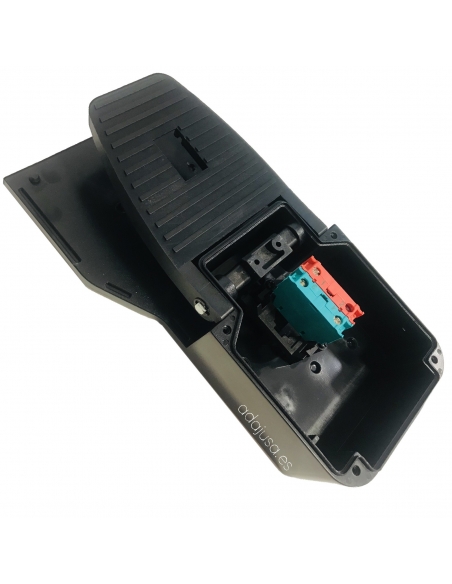

Electric instant action pedal (pushbutton), made of high strength thermoplastic material, for industrial and general applications. The electric pedal incorporates a camera with 2 electrical contacts, one open (NA) and one closed (NC) abrupt rupture.

Pedal switches are used as machine and equipment control switches when the operator needs to have hands-free to perform other functions.

The pedal is instantaneous in action, i.e. the contacts are activated when we activate the pedal with the foot and deactivate when we remove the foot. It also has rubber stops at the base to prevent slipping.

The degree of protection of the electric pedal is IP-65. The pedal switch complies with the machine directive and is CE marked.

In addition, 2 contact beds can be added, open or closed. The maximum number of contacts per pedal is 4.

Feature Summary:

  • Manufacturer: Giovenzana.
  • Reference: IP7006I.
  • Material: Thermoplastic.
  • Color: Garnet (pantone 3020).
  • Contact type: NA+NC.
  • Type of rupture: Brusca.
  • Maximum insulation voltage (Ui): 690V.
  • Nominal thermal current (Ith): 10A.
  • Nominal operating current (In) in AC-15 AC current category:
    • 24Vac: 16A.
    • 48Vac: 12A.
    • 120Vac: 8A.
    • 240Vac: 6A.
    • 400Vac: 4.5A.
    • 440Vac: 3.5A.
    • 500Vac: 1A.
    • 690Vac: 1A.
  • Nominal operating current (In) in category DC-15 DC current:
    • 24Vdc: 2A.
    • 48Vdc: 1.2A.
    • 110Vdc: 0.4A.
    • 220Vdc: 0.25A.
  • Contact resistance:
  • Positivity: Positive opening NC contact.
  • Degree of protection: IP65.
  • Input: 16.5mm.
  • Operating ambient temperature: -25o.. +70oC.
  • Compliance: IEC/EN60947-5-4.

Dimensions:

Dimensiones pedal sin cubierta Giovenzana

Only Giovenzana contact blocks can be added. 2 more contacts can be added to the pedal.

Additional contact references that can be added are:

  • Open contact screw connection: GI-PL004002
  • Closed contact screw connection: GI-PL004001
  • Open spring connection contact: GI-PCW10
  • Closed spring connection contact: GI-PCW01


Material for professional use, install in compliance with the regulations in force at the installation site.
