Hiwin skid size 35 fins precision C or H - ADAJUSA

Linear guideways fins size 35 - Hiwin

Name: Linear guideways fins size 35 - Hiwin
Brand: HIWIN
SKU: HGW35xxx
Price: 97.9172 EUR
Availability: InStock

€97.92 Tax included

€80.26 tax excl.

Linear guideways linear ball bearing and guideway assemblies with flange (fins) HIWIN size 35. Specifically designed for linear positioning systems in applications such as milling machines, lathes, high precision conveying systems .... This series of slides HIWIN consists of four raceways in a 45° arrangement providing the ability to take loads in any direction.

Available part numbers (selectable from the drop down menu are):

HGW35CCC. High load, standard accuracy and light preload
HGW35CCH. High load, high precision and light preload
HGW35CCZAH. High load, high accuracy and medium preload
HGW35HCC. Super high load, standard accuracy and light preload
HGW35HCH. Super high load, high precision and slight preload
HGW35HCZAH. Super high load, high accuracy and medium preload

Part number: HGW35xxx

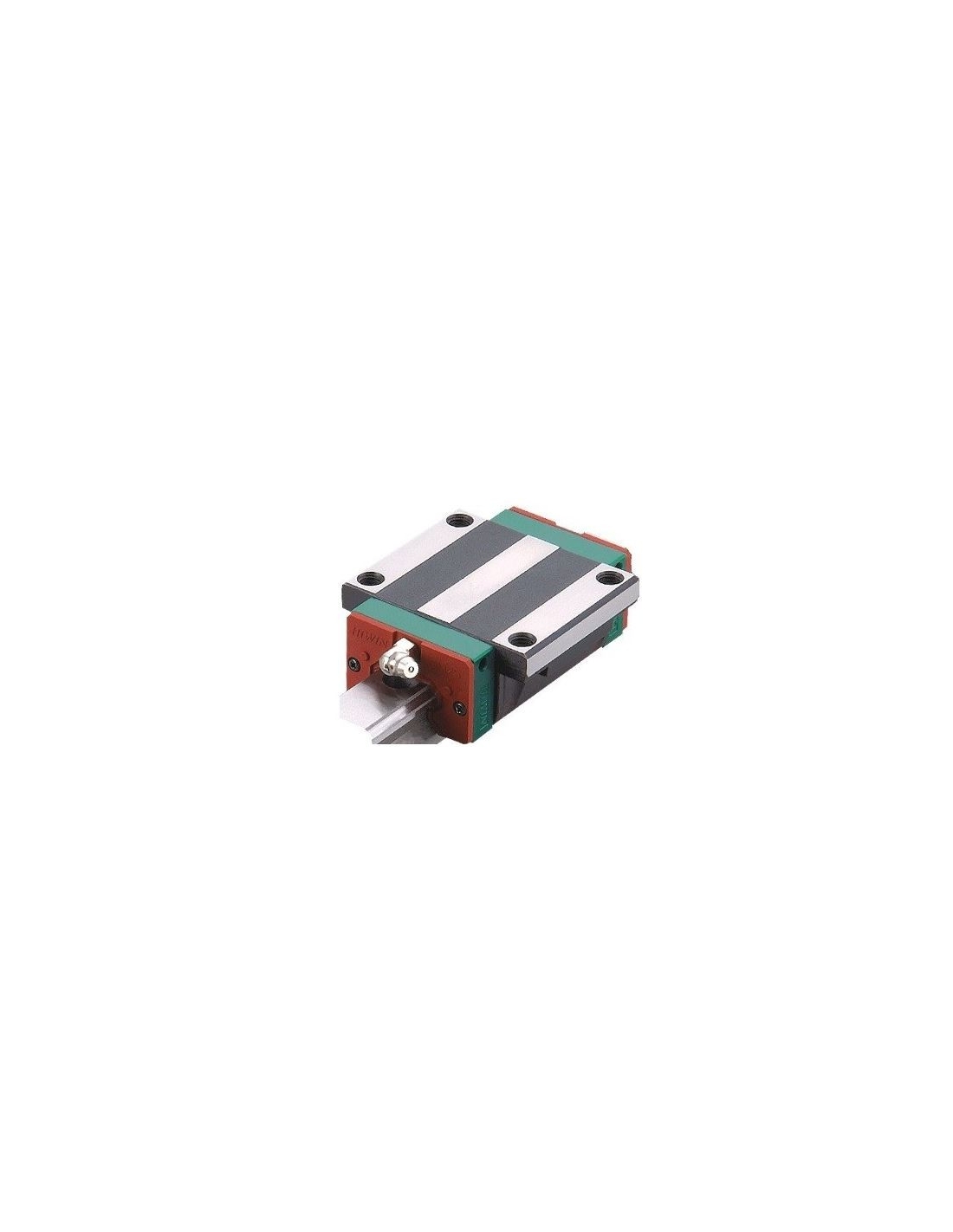

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Precision-Preload

No queries yet, leave the first!

Privacy

Shipments

Returns

HIWIN precision ball bearing slides, square design and size 35, allow high positioning accuracy with very low rolling resistance. Manufactured with four 45° tracks, they can take loads from any direction. Very high load capacity and long service life, allowing high precision movements without producing stick-slip effects. Due to their low coefficient of friction, they allow a high speed of movement.

They are supplied with a grease nipple for easy maintenance. Only minimal lubrication is required. They are supplied with a sealing system consisting of front and bottom seals, to prevent the entry of foreign substances, such as dust particles, chips or any other element, in the ball paths of the slide.

They can be installed in any position, and the fixing is by means of threaded holes on the slide body, or through holes on the slide body.

The slides HIWIN size 35 with flange (fins) are available with C accuracy and Z0 preload, or H accuracy ZA preload.

HG series recommended for: Grinding, milling and drilling machines, lathes, machining centers, wood

Preload Z0: Light preload 0 - 0.02 Cdyn. Constant load direction, low vibration, less precision required

Manufacturer: HIWIN

Manufacturer's reference:
- HGW35-CCC (flanged skid, high load; skid mounting from above or below; Z0 preload; C accuracy)
- HGW35-CCH (flanged skid, high load; skid mounting from above or below; Z0 preload; H accuracy)
- HGW35-CCZAH (flanged skid, high load; skid mounting from above or below; ZA preload; h accuracy)
- HGW35-HCC (flanged skid, super high load; skid mounting from above or below; Z0 preload; C accuracy)
- HGW35-HCH (flanged skid, super high load; skid mounting from above or below; Z0 preload; H accuracy)
- HGW35-HCZAH (flanged skid, super high load; skid mounting from above or below; ZA preload; H accuracy)

Dimensions:

W: 100
B: 82
B1: 9.0
C: 62
L1: CC - 80.0 / HC 105.8
L: CC - 112.4 / HC 138.2
K1: CC - 14.60 / HC 27.50
K2: 7.00
M: M10
G: 12.0
T: 10.1
T1: 18.0
T2: 13.0
H2: 9.00
H3: 12.6
Load capacities (N)
- Cdyn: CC - 49520 / HC 60210
- C0: CC - 69160 / HC 91630
Weight: CC - 1.56 / HC 2.06 kg

For other sizes or executions, please consult us.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information you can download the data sheet by clicking on the tab "Attachments "

catalog-lineal-hiwin

hiwin linear catalog

Download (6.01MB)

Sheet linear guides HGW - HIWIN

Download (137.64KB)
