Digital multimeter A880L CAT III 600V

€57.27 Tax included

46.94 tax excl.

MM78C

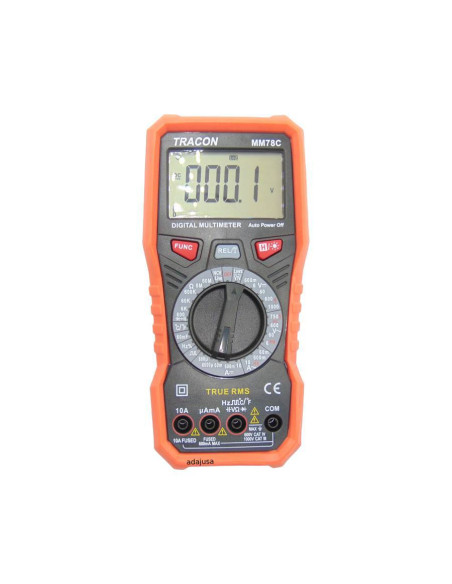

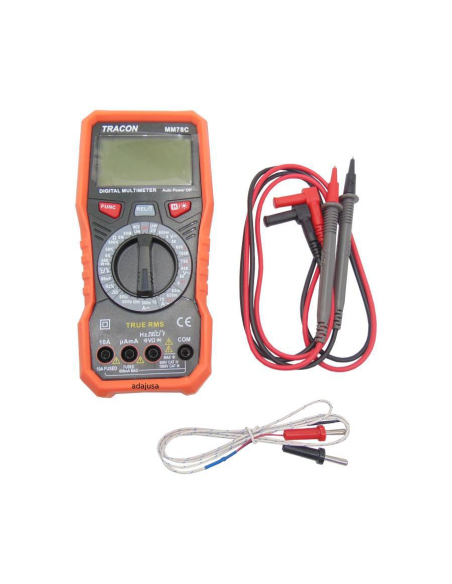

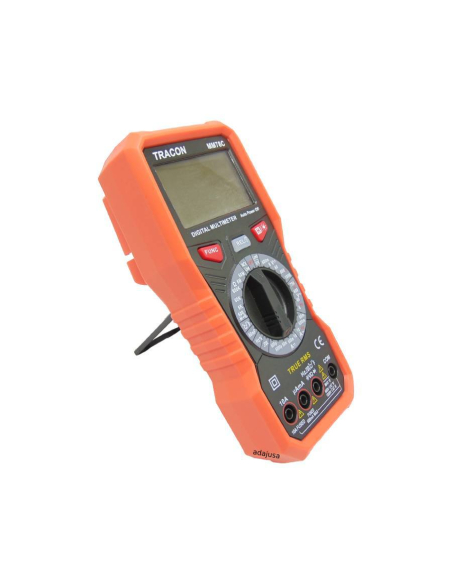

Digital multimeter with True RMS and CAT IV 600V measurement category. It measures voltage, current, resistance, frequency, capacitance, temperature, diode test, continuity and non-contact voltage detection (NVC). It has a large backlit display.

Part No.: MM78C

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!

Digital multimeter with True RMS and CAT IV 600V measurement category. It performs voltage, current, resistance, frequency, capacitance, temperature, diode test, continuity and non-contact voltage (NVC) detection.

Manufacturer/Supplier: Tracon
Part number: MM78C

Technical specifications:

DC Voltage: 600mV, 6V, 60V, 600V, 1000V
AC Voltage: 6V, 60V, 600V, 750V
DC current: 600µA, 6mA, 60mA, 600mA, 6A, 10A
AC current: 60mA, 600mA, 6A, 10A
Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
Frequency: 1Hz - 10MHz
Capacity: 60nfF - 60mF
Temperature: -20°C - 1000°C
Continuity:
Non-contact voltage detection (NVC)
Phase detection
Pulse generator

Other functions and features:

3.5 digit LCD display
Backlit display
Measurement range selection: Manual
HOLD function (data hold)
Relative value
Vac/Vdc automatic identification
Flashlight
Overload indicator
Low battery indicator
Automatic shutdown
Operating temperature: 0 ～ 40°C
Battery: 2 x 1.5V AA (included)
Degree of protection: IP20
Dimensions: 185 × 88 × 54 mm
Weight: 355gr

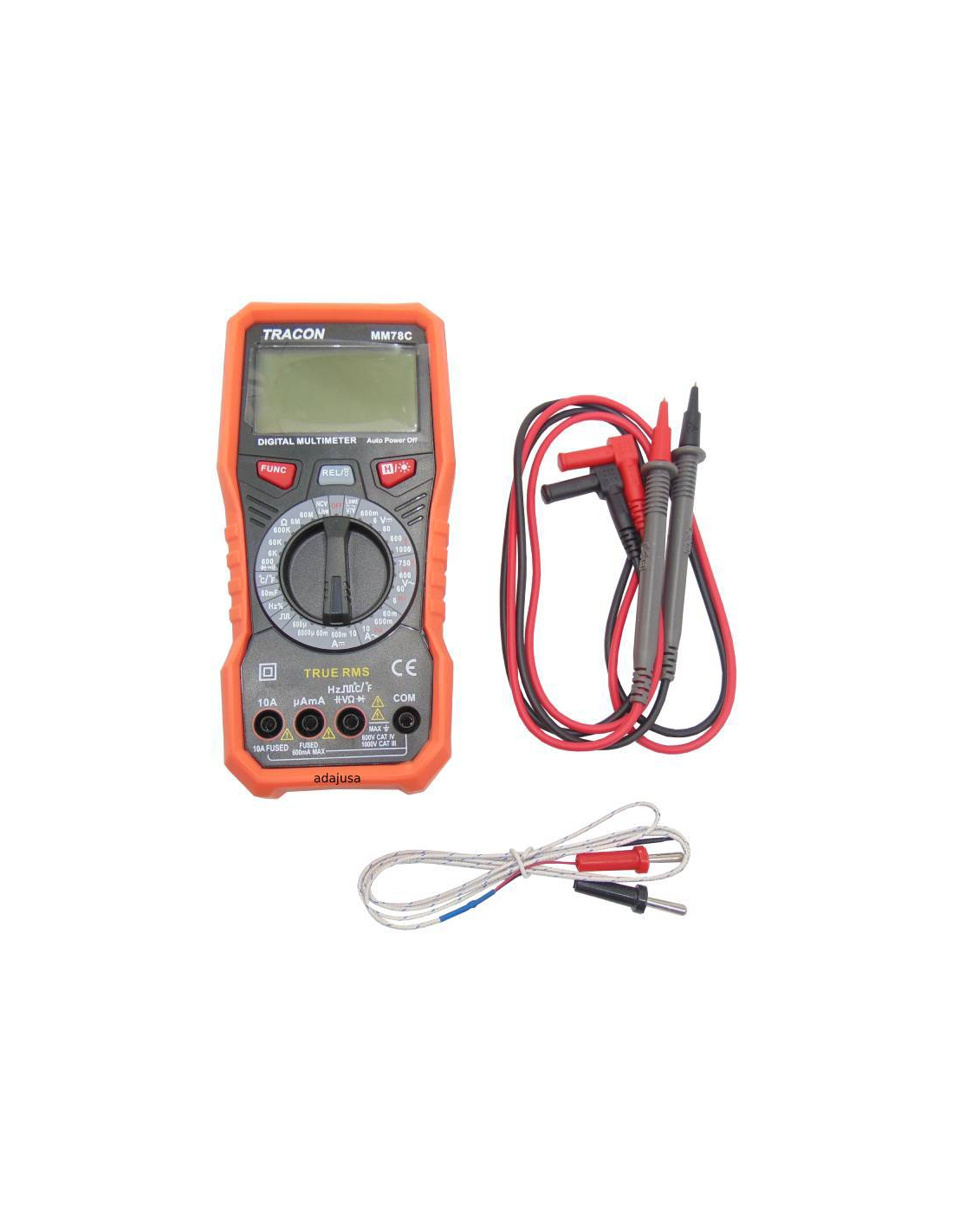

Accessories: Holster, test leads, temperature probe, 9V battery

Manual MM78C EN

MM78C EN Instruction Manual

Download (177.23KB)

MM78C Instruction Manual

Download (3.06MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Three-phase energy meter TEC-400D Toscano / Adajusa

Shipping time: 3-5 days

Electrical material

Three-phase electric power meter TEC-400D din-rail - Toscano

€264.80 (€217.05 tax excl.)

Three-phase 400VAC digital energy meter, din-rail mount.Reference: TEC-400DRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Power supply 30V, 5A PROMAX / ADAJUSA

Power supply 30V, 5A PROMAX / ADAJUSA 2

Material available in 3-5 days

Measuring instruments

Laboratory source 30V, 5A (auxiliary +15V, -15V, +5V, -5V) FA-363C - PROMAX

€761.28 (€624.00 tax excl.)

Power supply with variable output from 0 to 30 V and 0 to 5 A. It includes two additional fixed outputs of 5 V and 15 V, voltages specially chosen to power logic and analog circuits. The FA-363C power supply (power supply) provides a variable output voltage between 0 and 30 V, with a current of up to 5 A. All outputs are fully protected against short...

30A DIN rail ammeter | ADAJUSA

30A DIN rail ammeter | ADAJUSA 2

Measuring instruments

Ammeter 0-30A DIN rail

€11.05 (€9.06 tax excl.)

Analog ammeter for measurements from 0 to 30A in alternating current. DIN rail mounting, 2.5 modules wide. It allows to visualize in a very fast and simple way the value of a current. Part number: AMA-30 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

View

60-500VAC circular 22mm digital panel voltmeter

60-500VAC circular 22mm digital panel voltmeter 2

Measuring instruments

Digital panel voltmeter 24-500Vac circular 22mm

€3.26 (€2.67 tax excl.)

Digital voltmeter for flush-mounted panel mounting, with a mounting diameter of 22 m. The measuring voltage range is 24 to 500 V AC. Available in red, green, and yellow. Red color reference: NYG3-VRGreen color reference: NYG3-VGYellow color reference: NYG3-VY Representative image for illustrative purposes, the item supplied will correspond to the...

Voltmeter 72x72mm moving coil instrument | ADAJUSA : price

Voltmeter 72x72mm moving coil instrument | ADAJUSA : price 2

Measuring instruments

Voltmeter 0-250Vac 72x72

€13.25 (€10.86 tax excl.)

Analog voltmeter with measuring range 0-250 V in alternating voltage. Mounting Rear panel of 72x72mm. It allows to visualize in a very fast and visual way the value of a voltage. Reference: ACVM72-250Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Oscilloscope 60MHz PROMAX / ADAJUSA

Oscilloscope 60MHz PROMAX / ADAJUSA 2

Material available in 3-5 days

Measuring instruments

Oscilloscope OD-606 60MHz - PROMAX

€888.16 (€728.00 tax excl.)

Oscilloscope with 60 MHz bandwidth and real-time sampling rate up to 500 MS/s. With 8" screen and USB 2.0 connectivity, USB for file storage, LAN and RS-232. Reference: OD-606

Ammeter direct measurement 5 A 72x72mm 72x72mm moving coil instrument | ADAJUSA | price

Ammeter direct measurement 5 A 72x72mm 72x72mm moving coil instrument | ADAJUSA | price 2

Measuring instruments

Ammeter direct measurement 0-5A 72x72

€14.12 (€11.57 tax excl.)

Analog ammeter for direct measurement, measuring range 0-5 A in alternating current without current transformer. Mounting Rear panel of 72x72mm. It allows to visualize in a very fast and visual way the value of a current. Reference: ACAM72-5 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Power Factor Meter 3 phases panel 72x72mm | ADAJUSA | price

Power Factor Meter 3 phases panel 72x72mm | ADAJUSA | price 2

Measuring instruments

3-phase power factor meter 72x72

€32.96 (€27.02 tax excl.)

Power factor meter (cos φ) for three-phase networks with inductive or capacitive loads, mounting Rear panel of 72x72mm. It allows a quick visualization of the power factor of the installation. Reference: CF72-0,5/3 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Clamp meter CT-195 PROMAX / ADAJUSA

Clamp meter CT-195 PROMAX / ADAJUSA 2

Material available in 3-5 days

Measuring instruments

Multifunction AC/DC clamp meter CT-195 - PROMAX

€279.14 (€228.80 tax excl.)

Clamp meter measuring AC/DC voltage (600 V), AC/DC current (700 A), resistance, frequency, continuity, diode test and temperature. It has a function of measurement retention (HOLD), retention of the peak value (PEAK), memorization of the measure with presentation of the maximum, minimum, medium or current value (MIN / MAX), relative measurement and manual...

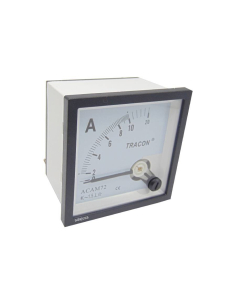

Ammeter direct measurement 10 A 72x72mm 72x72mm moving coil instrument | ADAJUSA : price

Ammeter direct measurement 10 A 72x72mm 72x72mm moving coil instrument | ADAJUSA : price 2

Measuring instruments

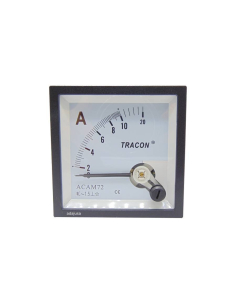

Ammeter for direct measurement 0-10A 72x72

€13.47 (€11.04 tax excl.)

Analog ammeter for direct measurement, measuring range 0-10 A in alternating current without current transformer. Mounting Rear panel of 72x72mm. It allows to visualize in a very fast and visual way the value of a current. Reference: ACAM72-10 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Digital voltage detector 250Vac| ADAJUSA | price

Digital voltage detector 250Vac| ADAJUSA | price 2

Measuring instruments

250Vac digital voltage detector

€10.61 (€8.70 tax excl.)

Voltage detector with LCD screen, allows you to safely detect the presence of voltage (up to 250Vac) by displaying the detected value on the screen. Ideal for locating cuts, checking fuses, identifying phases, etc. Reference: FK16ACDC Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

TKI-F cam ammeter switch | ADAJUSA | price

Selector switches for measuring instruments

Ammeter switch changeover switch

€17.59 (€14.42 tax excl.)

3-circuit ammeter switch (with current transformer), 4 positions 0-ABC (0-L1-L2-L3) with 90º rotary knob. 48x48mm grey front plate with black knob. Reference: TKI-F Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Cam voltmeter switch for phase-neutral measurement TKU-F | ADAJUSA | price

Selector switches for measuring instruments

Phase-neutral voltage voltmeter switch

€15.99 (€13.11 tax excl.)

Voltmeter changeover switch, measurement between phase and neutral in three-phase circuits, 4 positions 0-ABC (0-L1N-L2N-L3N) with 90º rotary knob. 48x48mm grey front plate with black knob. Reference: TKU-F Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Desktop Multimeter TRMS MD-200C

Desktop Multimeter TRMS MD-200C 2

Material available in 3-5 days

Measuring instruments

Digital Multimeter MD-200C Desktop TRMS - PROMAX

€406.02 (€332.80 tax excl.)

Digital multimeter with true effective value (True RMS) that brings together the basic characteristics of a professional instrument such as high accuracy, reliability and wide range of measurements. Performs measurements of voltage, current, resistance, diode test, continuity, capacity and frequency. Ideal for teaching laboratories and production...

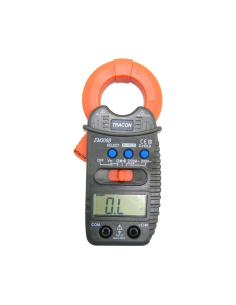

Clamp Ammeter CAT III 600V EM306B| ADAJUSA : price

Clamp Ammeter CAT III 600V EM306B| ADAJUSA : price 2

Measuring instruments

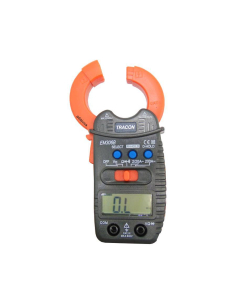

Current clamp EM306B CAT III 600V

€24.55 (€20.12 tax excl.)

Small size CAT III 600V clamp meter for measuring DC and AC voltage, AC current, resistance, diode test and continuity. Ideal for use in laboratories, home and other basic applications. Part number: EM306BRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

Digital multimeter PD-350 PROMAX / ADAJUSA

Digital multimeter PD-350 PROMAX / ADAJUSA 2

Measuring instruments

Digital Multimeter PD-350 TRMS - PROMAX

€111.65 (€91.52 tax excl.)

Digital multimeter with true effective value (True RMS) and measurement category CATIII (1000 V). Performs measurements of voltage, current, resistance, capacity, frequency, diodes, transistors, continuity and temperature. 3 5/6 digit backlit display. Reference: PD-350

Customers who bought this product also bought:

MCB circuit breaker 25A Pole + Neutral LG LS | ADAJUSA

MCB circuit breaker 25A Pole + Neutral LG LS | ADAJUSA 2

Magnetothermic 1 pole + neutral

MCB circuit breaker 1 Neutral Pole 25A - LS

€4.61 (€3.78 tax excl.)

MCB circuit breaker 25A Pole+neutral in C-curve. MCB circuit breaker 1 pole + neutral, 25A for protection against short circuits and overloads in single-phase or biphasic installations. With an assigned cutting power of 6000A. Reference: BKJ63N PN C25A Representative image for illustrative purposes, the item supplied will correspond to the...

Block timer for contactors LA2DT2 30 sec ADAJUSA

Block timer for contactors LA2DT2 30 sec ADAJUSA 2

Timed contact blocks

Timer 0.1-30 sec switch-on delay for contactors TR1D/TR1E Series

€12.38 (€10.15 tax excl.)

Block timer from 0.1 to 30 seconds for switch-on delay, front mounting on TR1D and TR1E series contactors. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Differential 2 poles 30mA - LS

Bipolar differential (2 poles)

Differential Circuit Breaker RCD 2 poles 40A 30mA - LS

€21.47 (€17.60 tax excl.)

Electric differential single-phase 40A 30mA (0.03A). Electromagnetic type, which allows not to lose protection in case of variations in the input voltage, and to maintain the protection of the active phase in case of loss of neutral. Standard differential class "AC". Reference: RKN 2P 40A 30mA CL AC Representative image for illustrative...

Flexible rod limit switch with spring VP106 :: - Flexible rod limit switch with spring VP106 :: Flexible rod limiter with spring

limit switch - position detectors - electric pedals - sensors

End of stroke flexible rod with spring Series VP

€8.44 (€6.92 tax excl.)

Electric limit switch, contacts 1NO+1NC, vertical steel rod with spring. Made of highly impact resistant thermoplastic resin. Part number: VP106 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

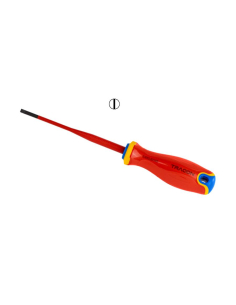

VDE 1000V 3.5x100mm flathead Screwdriver CD35100 | ADAJUSA | price

VDE 1000V 3.5x100mm flathead Screwdriver CD35100 | ADAJUSA | price 2

Tools

Flathead Screwdriver 3.5x100mm VDE 1000V insulation

€3.25 (€2.66 tax excl.)

VDE insulated flathead Screwdriver 1000Vac/1500Vdc. Size 3.5x0.6x100mm, magnetized tip and insulated handle. Its light weight and ergonomic handle make it an ideal tool for electrical work. Reference: CD35100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

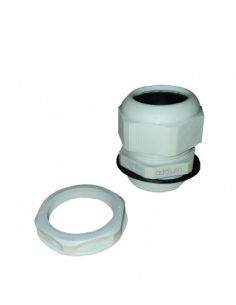

Pg thread glands

PG36 polyamide Cable gland with nut

€1.81 (€1.48 tax excl.)

Polyamide (Nylon) Cable gland , PG36 thread, with nut, nitrile (NBR) gasket. IP68 protection grade. Color Light gray, RAL 7035.Reference: XBS -PG36 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

MCB circuit breakers 1 pole + neutral DPN

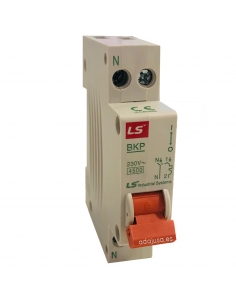

MCB circuit breaker 1 pole + neutral 16A narrow profile - LS

€6.72 (€5.51 tax excl.)

16A MCB circuit breaker Pole + Neutral in narrow profile C curve. 1-pole + neutral, narrow profile, 16A MCB circuit breaker for protection against short circuits and overloads in single-phase installations. With an assigned breaking capacity of 4500A. Representative image for illustrative purposes, the item supplied will correspond to the specifications...

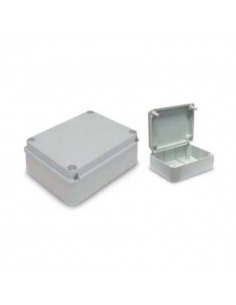

241x180x95 mm pre-cut watertight case

241x180x95 mm pre-cut watertight case 2

Distribution boxes and envelopes

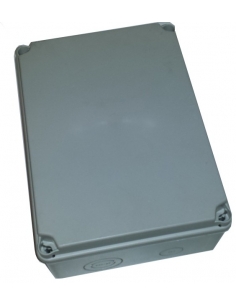

Box plastic 310x230x130mm pre-punched

€25.89 (€21.22 tax excl.)

Box halogen-free plastic (ABS) watertight with pre-drilled walls and screwed smooth blind cover. Easy installation that saves time in maintenance works. IP67 watertightness degree. Part number: MED312313 Dimensions: 310x230x130mm Representative image for illustrative purposes, the item supplied will correspond to the specifications...

Barrel insulator 30mm M6 | ADAJUSA

Barrel insulator 30mm M6 | ADAJUSA 2

Isolators

Barrel type insulator height 30mm M6

€0.84 (€0.69 tax excl.)

Barrel type separator insulator, height 30mm, thread M6. Suitable for the separation of all types of copper or aluminum bars.Part no.: SM-30Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

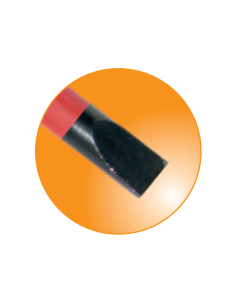

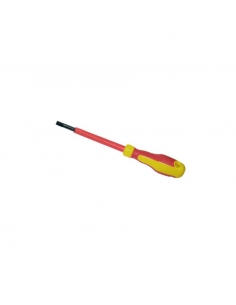

Flat screwdriver VDE 1000V 2.5x0.4x80mm
