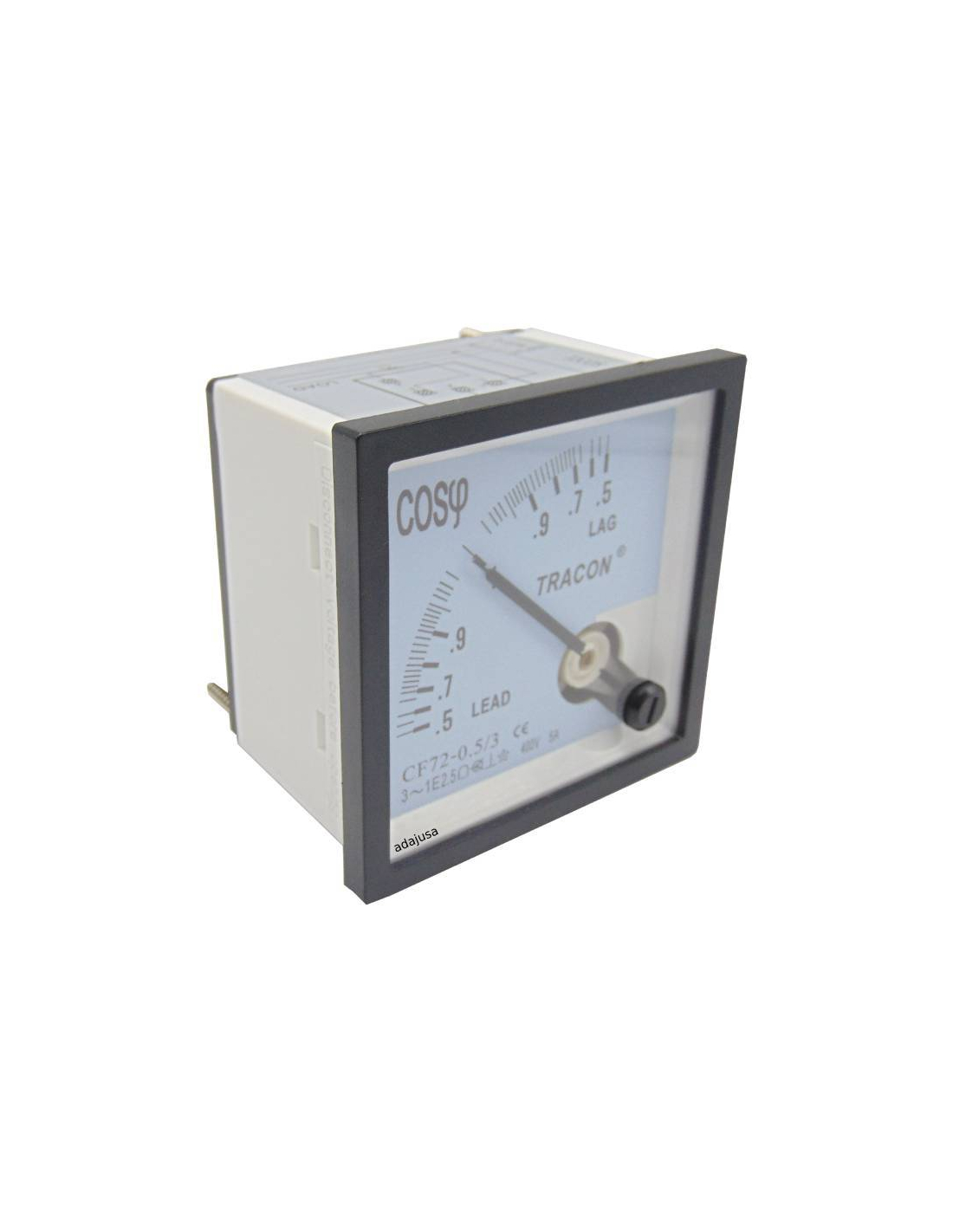

Power factor meter 1 phase 72x72
Power factor meter 1 phase 72x72
Power factor meter 1 phase 72x72
Power factor meter 1 phase 72x72

Power factor meter 1 phase 72x72

€38.57 Tax included

€31.88 tax excl.

Power factor meter (cos φ) for single-phase networks with inductive or capacitive loads, mounting Rear panel of 72x72mm. It allows a quick visualization of the power factor of the installation.

Reference: CF72-0,5/1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!
Privacy
Shipments
Returns


Analog power factor meter (cos φ) for single-phase networks with inductive or capacitive loads. Depending on the type of load the indicator will move to the right side if the load is inductive or to the left side if the load is inductive, panel with logarithmic scale. Mounting Rear panel of 72x72mm

Manufactured in ABS box, easy and simple installation. They have an overload factor of long duration and momentary, which is very suitable for circuits with current overloads, this allows to increase the duration and avoid the deterioration of the measuring instrument.

It has a zero adjustment by means of a regulator located on the front of the measuring instrument. The measuring scale is engraved in black on an aluminum plate painted in white. The unit of measurement is an iron pointer.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: CF72-0,5/1
  • Type of measurement: Power factor (cos φ)
  • Type of load: Inductive / Capacitive
  • Measuring range: 0.5 - 1
  • Rated voltage: 240Vac
  • Rated current: X/5A
  • Connection type: By current transformer, for currents higher than 5A
  • Current transformer ratio: X/5 A, depending on the maximum current
  • Class (accuracy): 1.5%
  • Frame dimensions: 72 x 72mm
  • Cutting size: 66mm
  • Working temperature: -25ºC...+55ºC
  • Degree of protection (from the front side): IP52
  • Degree of protection terminals (cover): IP00




Connection:

If the current is higher than 5A, the 5A secondary current transformer shall be used (Not included in the scope of supply).

Dimensions:


Material for professional use, install in compliance with the regulations in force at the place of installation.
