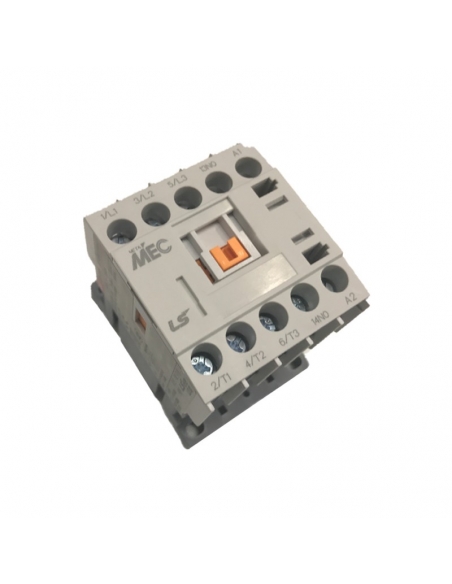

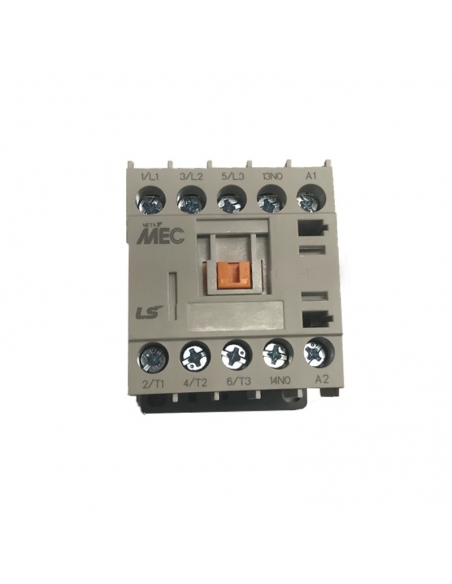

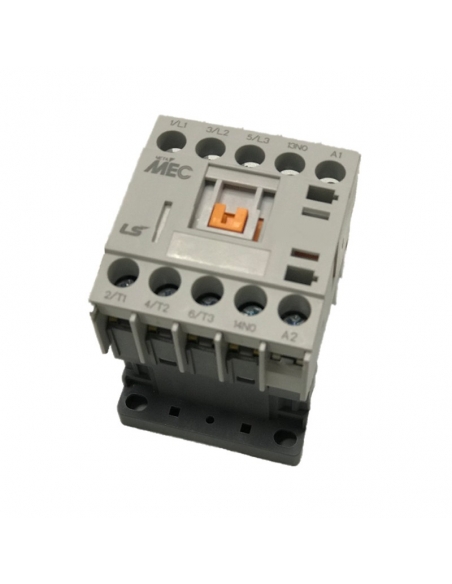

Minicontactor LS 9A coil 230Vac open auxiliary contact NA

Minicontactor 9A coil 400Vac open auxiliary contact NA - LS

Name: Minicontactor 9A coil 400Vac open auxiliary contact NA - LS
Brand: LS Electric
SKU: 97GMC9MA40A
Price: 16.1535 EUR
Availability: InStock

€16.15 Tax included

€13.35 tax excl.

Electric three-phase mini-contactor for motor control, heating, lighting, ventilation, or general purposes, 3-pole with a current capacity of 9A category AC3 or 20A category AC1, with coil 380-400Vac, the contactor is equipped with an open auxiliary contact (NA).

Reference: GMC-9M-10-AC400V

Esquema eléctrico contactor 3P auxiliar NA

Logotipo LS LG industrial Systems

No queries yet, leave the first!

Privacy

Shipments

Returns

Three-phase mini-contactor(3 poles) of 9A in category AC3 or 20A in category AC1, the coil voltage of the contactor is 380-400 Vac, with an open auxiliary contact NA. Fixing the contactor by screws or din-rail. Designed mainly for electric motor control, heating, lighting, ventilation, and in general use.

General characteristics of the mini-editor:

Manufacturer: LS.
Reference: GMC-9M-10-AC400V
number of poles: 3.
Current assigned in AC3: 9A.
Maximum thermal current Ith: 20A.
Maximum voltage: 660Vac.
Maximum power: 3~AC3 230V: 2,2 Kw.
Maximum power: 3~AC3 400V: 4 Kw.
Control voltage (coil): 220-230Vac 50/60Hz.
Auxiliary contact integrated in the mini-contact: 1 no (NA).

Dimensiones contactor LS Electric vista frontal

Minicontactor LS Electric Vista lateral y posterior
