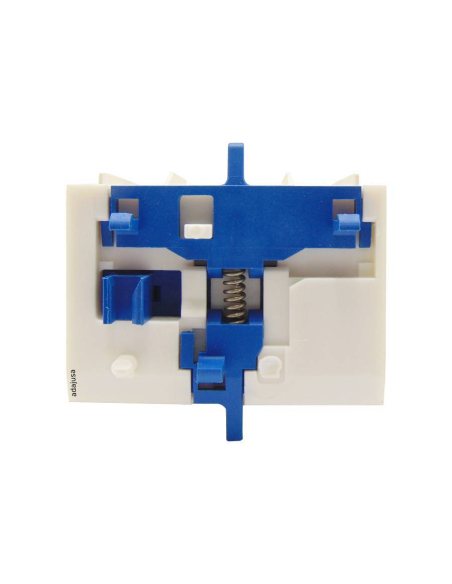

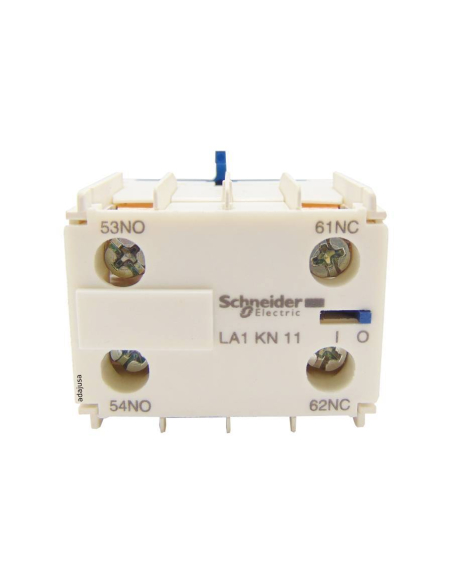

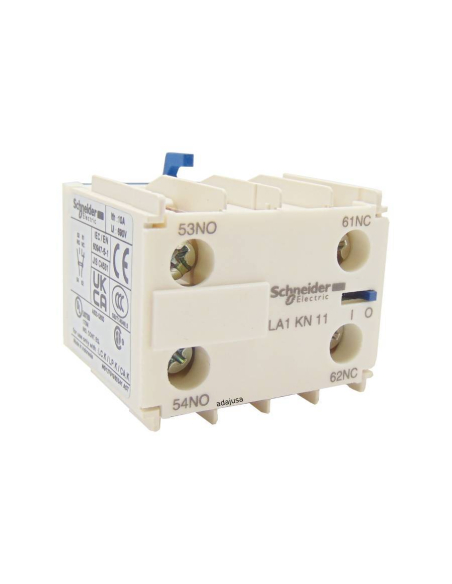

Block 2 NA+NC contacts for mini-contacts

Block 2 NO+NC contacts for minicontact - Schneider

Name: Block 2 NO+NC contacts for minicontact - Schneider
Brand: Schneider
SKU: LA1KN11
Price: 6.0984 EUR
Availability: OutOfStock

€6.10 Tax included

€5.04 tax excl.

Block of 2 auxiliary contacts for mounting on minicontactor, front mounting, 1 open contact and 1 closed contact (NO+NC).

Part number: LA1KN11

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!

Privacy

Shipments

Returns

Block of 2 auxiliary contacts for front mounting on miniature contactor. The contact chamber has 2 contacts, 1 open contact and 1 closed contact (NO+NC).

Technical characteristics:

Manufacturer: Schneider Electric
Range: TeSys K
Reference: LA1KN11
Type of contacts: instantaneous, 1 open 1 closed (NO+NC)
Mounting: Front
Rated operating voltage: 690Vac 25...400 Hz
Maximum current: 10A
Minimum switching voltage: 17V
Minimum switching current: 5mA
Range compatibility: TeSys K LC1K, TeSys K CA2K, TeSys K CA3K, TeSys K CA4K

For more information you can download the data sheet by clicking on the tab "Attachments"
Material for professional use, install in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Data sheet LA1KN11

Download (125.85KB)
