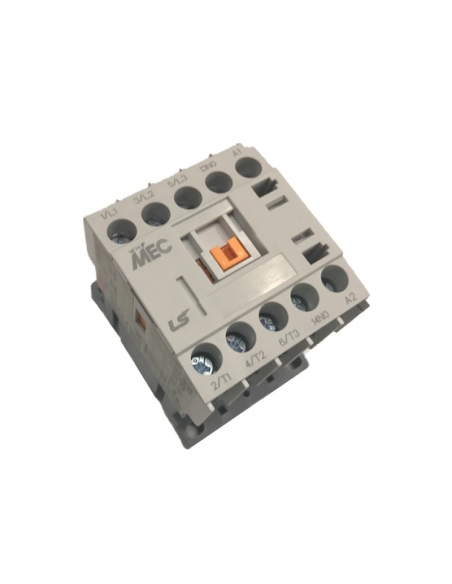

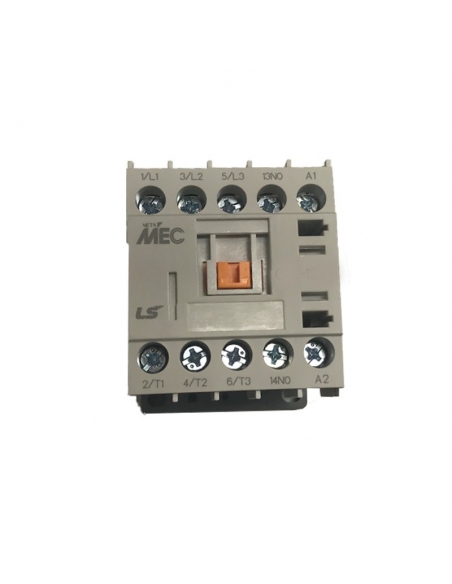

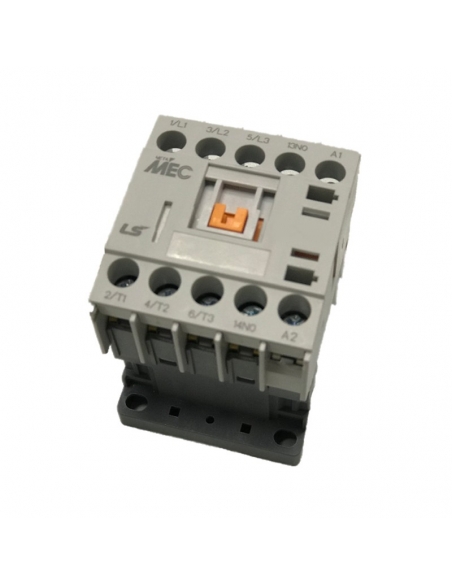

Mini connector LS 12A coil 415Vac auxiliary contact open NA

Mini connector 12A coil 400Vac open auxiliary contact NA - LS

Name: Mini connector 12A coil 400Vac open auxiliary contact NA - LS
Brand: LS Electric
SKU: 97GMC12MA4A
Price: 19.0091 EUR
Availability: InStock

€19.01 Tax included

€15.71 tax excl.

Electric three-phase mini connector for motor control, heating, lighting, ventilation, or general uses, 3 pole with a current capacity of 12A AC3 category or 20A category AC1, with coil 380-400Vac, the contactor is equipped with an open auxiliary contact (NA).

Ref: GMC-12M-10-AC400V

Esquema eléctrico contactor 3P auxiliar NA

No queries yet, leave the first!

Privacy

Shipments

Returns

12A three-phase LS mini connector (3 poles) in AC3 category or 20A in AC1 category, contactor coil voltage is 400 Vac, with an open auxiliary contact NA. Fixing the contactor by screws or DIN rail. The intended uses of the contactor are for electric motor control, heating, lighting, ventilation, and in general uses.

General characteristics of the mini contactor:

Manufacturer: LS.
Ref: GMC-12M-10-AC400V
Number of poles: 3.
Assigned current in AC3: 12A.
Maximum thermal current Ith: 20A.
Maximum voltage: 660Vac.
Maximum power: 3-AC3 230V: 3 Kw.
Maximum power: 3-AC3 400V: 5.5 Kw.
Control voltage (coil): 400Vac 50/60Hz.
Auxiliary contact integrated into the mini-connector: 1 open contact (NA).

Dimensiones contactor LS vista frontal

Minicontactor LS Vista lateral y posterior

catalog-minicontactors-ls

Download (188.07KB)
