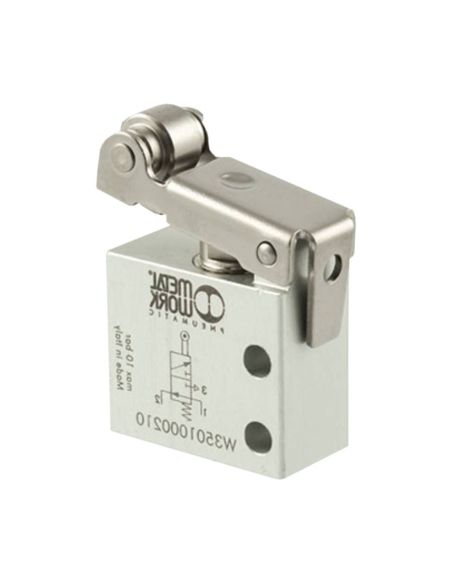

Limit Switch lever roller 3/2 NC diameter M5 rear fittings - Metal Work

Name: Limit Switch lever roller 3/2 NC diameter M5 rear fittings - Metal Work
Brand: Metal Work
SKU: W3501000211
Price: 20.4594 EUR
Availability: InStock

€20.46 Tax included

€16.77 tax excl.

limit switch lever-operated tire with roller, fittings (axial connections) located at the rear for M5 outer diameter tube. The valve type of the limit switch is normally closed (NC).

Reference: W3501000211

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

limit switch roller lever drive pneumatic, with integrated quick-connect fittings for M5 outer diameter tube. The state of the valve at rest is normally closed, that is, without pressing there is no presence of air in the exit, the air can not pass, when it is activated, it lets the air pass and there is pneumatic pressure at the outlet.

Manufacturer: Metal Work

Minivalve: 3/2 Normally closed (NC).
Type of limit switch drive: lever with roller.
Manufacturer reference: W3501000211 - VME1-12 NC M5
Reduced drive force.
Signal speed and pressure.
Material type: metallic.
Fittings: fast for tube diameter M5 axial connection.
Installation: in any position.
Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
Working pressure (bar): 0.5 ÷ 10
Working temperature (°C): -10° ÷ +60
Nominal diameter (mm) 2.5
Conductance C (Nl/min · bar): 16.5
Critical ratio b (bar/bar): 0.03
Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
Capacity at 6 bar ΔP 1 bar (Nl/min): 60
Strut drive force at 6 bar (N): 8
Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Minivalves

Download (794.37KB)
