Final de carrera neumática 3/2 NC racores laterales diámetro 4- Aignep

€19.22 Tax included

15.75 tax excl.

02VD03NCX1

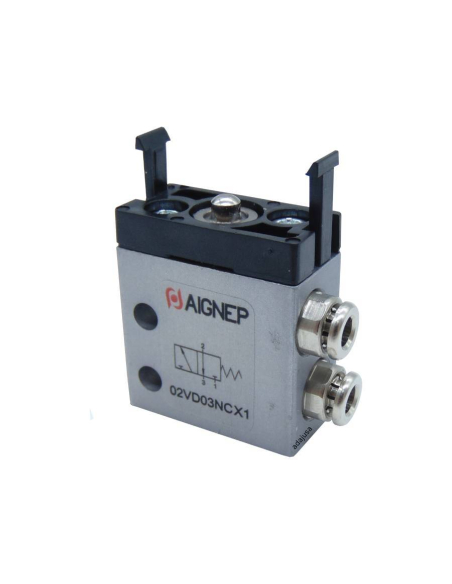

Limit switch 4 mm pneumatic 3 way and 2 positions, fittings located on the side for tube outer diameter of 4 mm. Prepared for mounting with emergency push button or similar.

Series: 02V
Part number: 02VD03NCX1

esquemaNCmicro Logotipo AignepNORMATIVAMICROVALVULA

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch pneumatic 4 mm, with integrated quick-connect fittings for 4 mm outer diameter pipe. When the limit switch valve is at rest it is normally closed (NC), i.e. when not pressed there is no air at the outlet as air cannot pass through and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

Manufacturer: Aignep

  • Part number: 02VD03NCX1
  • Thread: M5
  • Valve body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Fittings: quick couplings for pipe diameter M4 side connection.
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 100
  • Adapter for push button connection included


dimensionesmicrovalvula

Material for professional use, install in compliance with the regulations in force at the place of installation.
