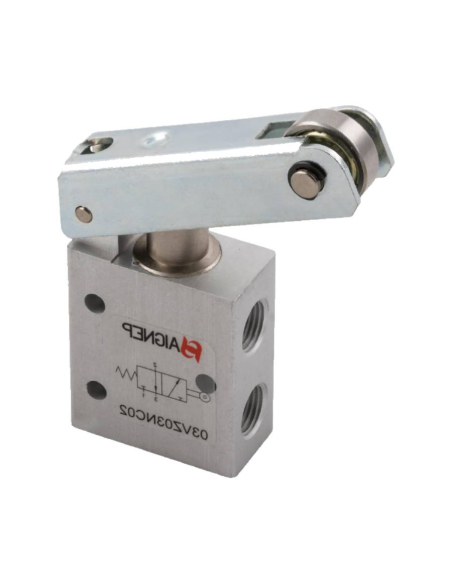

Limit switch long roller pneumatic 1/8 3/2 NC monostable with spring return - Aignep

€33.84 Tax included

27.74 tax excl.

03VZ03NC02

Limit switch pneumatic 1/8 3 way and 2 positions, for mounting with emergency push button or similar. The limit switch is operated by means of a lever with roller.

Series: 03V
Part number: 03VZ03NC02

esquemarodillolargo Logotipo Aignep NORMATIVAMICROVALVULA

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch pneumatic 1/8 3 way and 2 positions, normally closed (NC), monostable, mechanically operated by lever with metal roller. Limit switch connections are by 1/8" thread (fittings located on the side of the valve).

Manufacturer: Aignep

  • Part No.: 03VZ03NC02
  • Valve body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Actuating force: 8,3 N
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 350


03VZ03NC02

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
