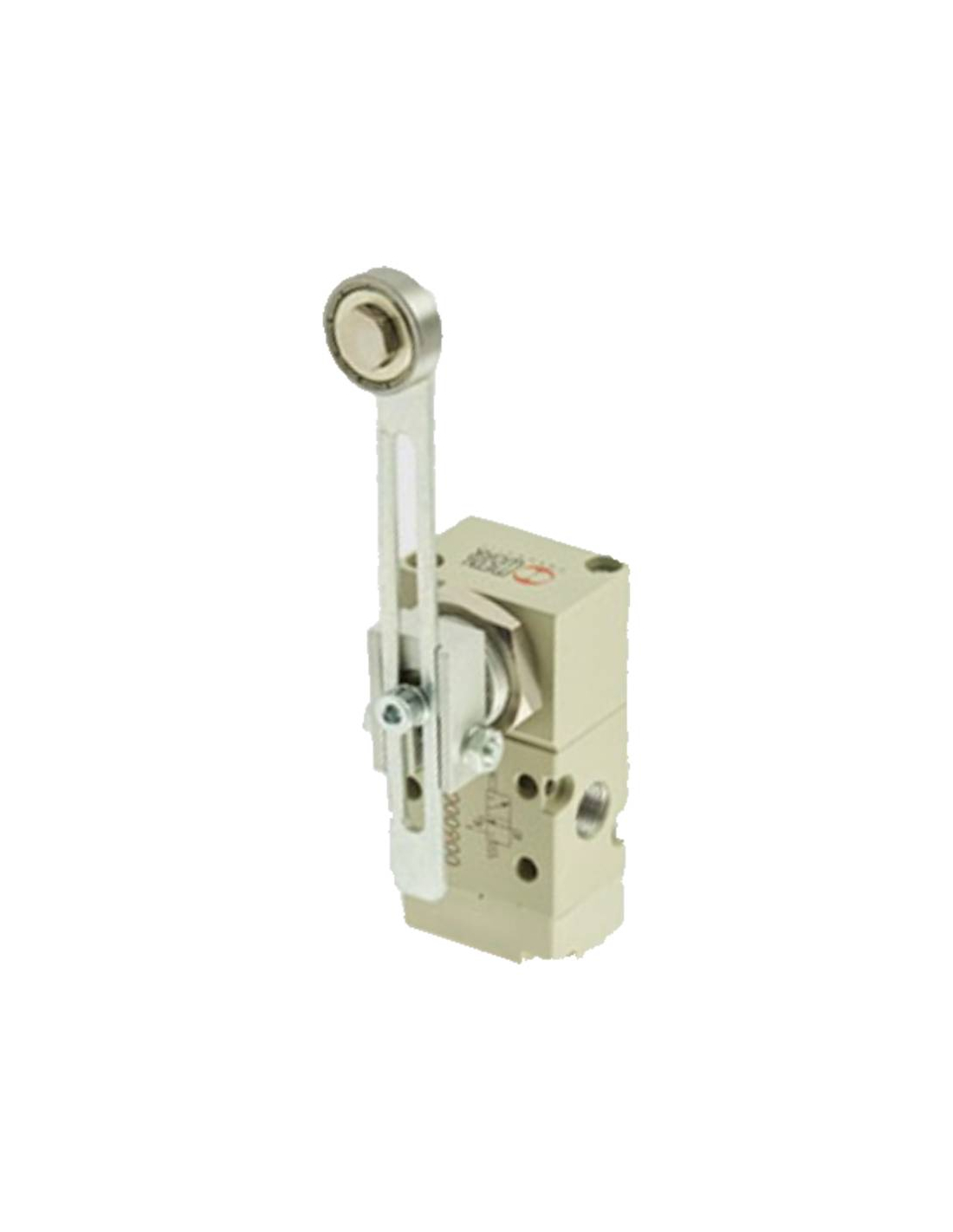

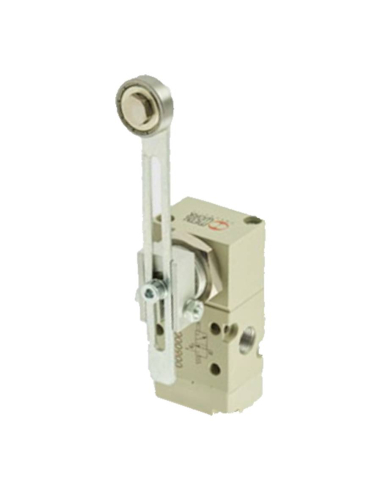

Limit Switch 1/8 3/2 lever extendable roller - Metal Work

Name: Limit Switch 1/8 3/2 lever extendable roller - Metal Work
Brand: Metal Work
SKU: 7001000900
Price: 86.9738 EUR
Availability: PreOrder

€86.97 Tax included

€71.29 tax excl.

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is unidirectional lever drive with extendable roller.

Reference: 7001000900

Diagrama válvula neumática 3 vías monoestable

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Pneumatic stroke end,unidirectional lever drive pneumatic valve with extendable metal roller. End-of-stroke connections are 1/8" threaded. The valve is 3-way and 2 positions 3/2.

Technical details:

Manufacturer: Metal Work.
Reference: MEV 23 LLS NC.
Code: 701000900.
Fluid: Pressure or vacuum air, with or without lubrication.
Valve body: aluminum.
Sliding material: Nickel-plated aluminium.
Gaskets: NBR.
Number of tracks: 3.
Size: 1/8".
Positions: 2 return per spring.
Control: By extendable lever.
Working pressure: Empty÷10 bar.
Temperature: -10÷60oC.
Nominal diameter: 5mm.
Flow rate at 6bar &DELTA; P 0.5bar: 400 Nl/min.
Flow rate at 6bar &DELTA; Q 1bar: 550 Nl/min.
Installation: in any position.

Dimensiones válvula 7001000900 Metal Work

Mechanical valves sheet

Download (478.69KB)
