Limit Switch 1/8 5/2 lever extendable roller -...
Limit Switch 1/8 5/2 lever extendable roller - Metal Work

Limit Switch 1/8 5/2 lever extendable roller - Metal Work

€91.72 Tax included

€75.18 tax excl.

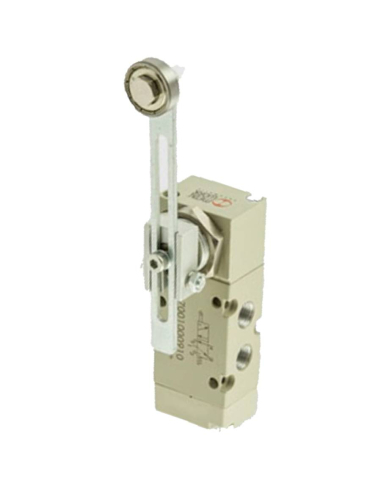

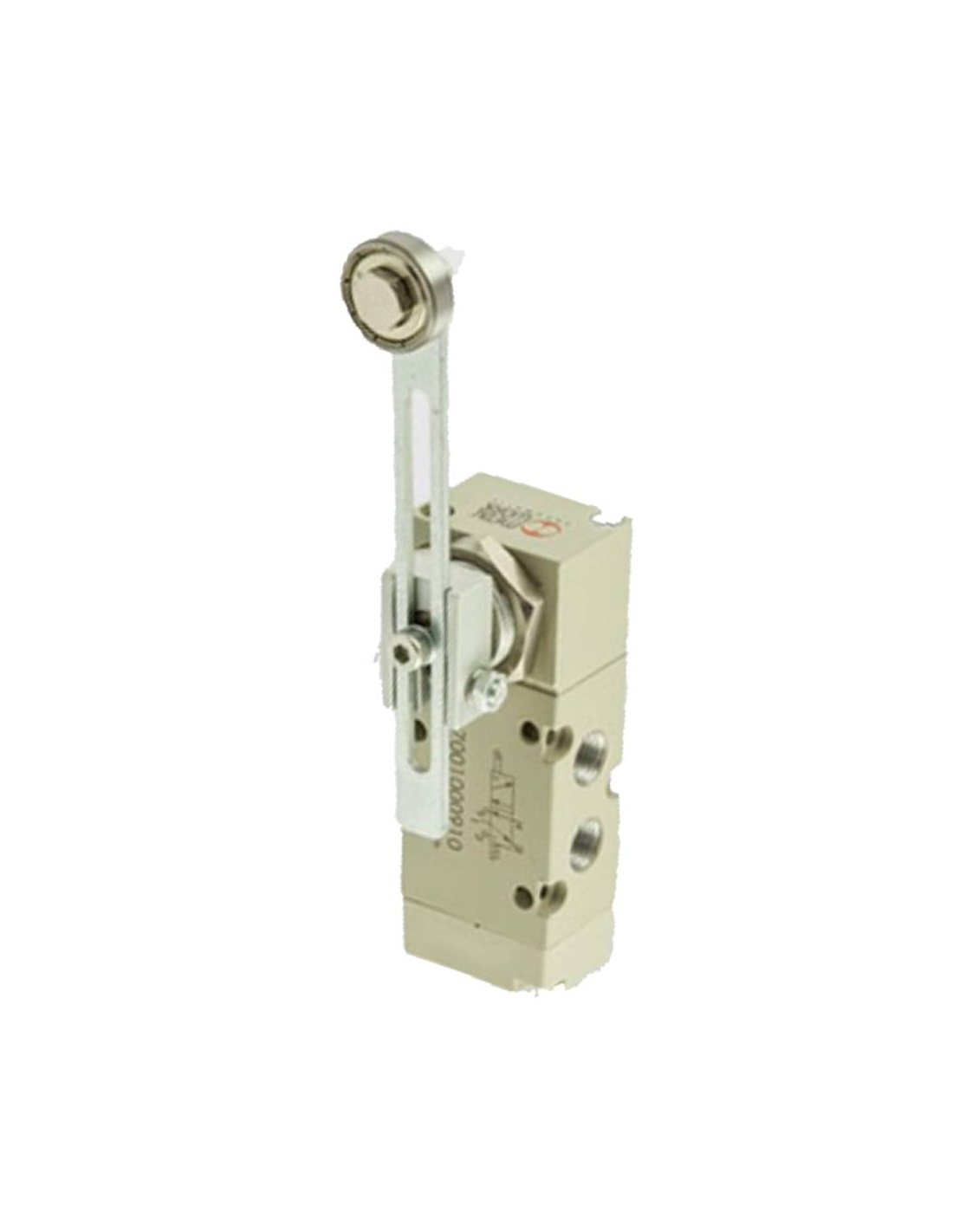

Limit Switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is unidirectional lever drive with extendable roller.

Reference: 7001000910

Logotipo Metal Work

IRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Pneumatic stroke end,unidirectional lever drive pneumatic valve with extendable metal roller. End-of-stroke connections are 1/8" threaded. The valve is 5-way and 2 positions 5/2.

Technical details:

  • Manufacturer: Metal Work.
  • Reference: MEV 25 LLS NC.
  • Code: 7001000910.
  • Fluid: Pressure or vacuum air, with or without lubrication.
  • Valve body: aluminum.
  • Sliding material: Nickel-plated aluminium.
  • Gaskets: NBR.
  • Number of tracks: 5.
  • Size: 1/8".
  • Positions: 2 return per spring.
  • Control: By extendable lever.
  • Working pressure: Empty÷10 bar.
  • Temperature: -10÷60oC.
  • Nominal diameter: 5mm.
  • Flow rate at 6bar Δ P 0.5bar: 400 Nl/min.
  • Flow rate at 6bar Δ Q 1bar: 550 Nl/min.
  • Installation: in any position.

Dimensiones válvula 7001000910 Metal Work

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"
