Limit Switch lever roller 3/2 NO diameter M5 rear fittings - Metal Work

€23.50 Tax included

19.26 tax excl.

W3501000210

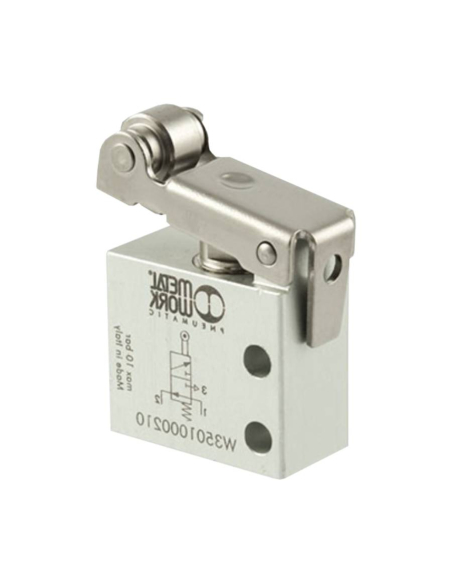

limit switch lever-operated tire with roller, fittings (axial connections) located at the rear for M5 outer diameter tube. The valve type of the limit switch is normally open (NO).

Reference: W3501000210

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch roller lever drive pneumatic, with integrated quick-connect fittings for M5 outer diameter tube. The state of the valve at rest is normally open, that is, without pressing there is the presence of air in the salt, the air can pass, when it is activated, it does not let air through and there is no pneumatic pressure at the outlet.

Manufacturer: Metal Work

  • Minivalve: 3/2 Normally closed (NO).
  • Type of limit switch drive: lever with roller.
  • Manufacturer reference: W3501000210 - VME1-15 NO M5
  • Reduced drive force.
  • Signal speed and pressure.
  • Material type: metallic.
  • Fittings: fast for tube diameter M5 axial connection.
  • Installation: in any position.
  • Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
  • Working pressure (bar): 0.5 ÷ 10
  • Working temperature (°C): -10° ÷ +60
  • Nominal diameter (mm) 2.5
  • Conductance C (Nl/min · bar): 16.5
  • Critical ratio b (bar/bar): 0.03
  • Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
  • Capacity at 6 bar ΔP 1 bar (Nl/min): 60
  • Strut drive force at 6 bar (N): 8
  • Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the technical sheet by clicking on the "Attachments" tab
