Limit Switch 1/8 5/2 one-way roller lever - Metal Work

Name: Limit Switch 1/8 5/2 one-way roller lever - Metal Work
Brand: Metal Work
SKU: 7001000610
Price: 45.506 EUR
Availability: InStock

€45.51 Tax included

€37.30 tax excl.

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is unidirectional drive by roller lever.

Reference: 7001000610

Logotipo Metal Work

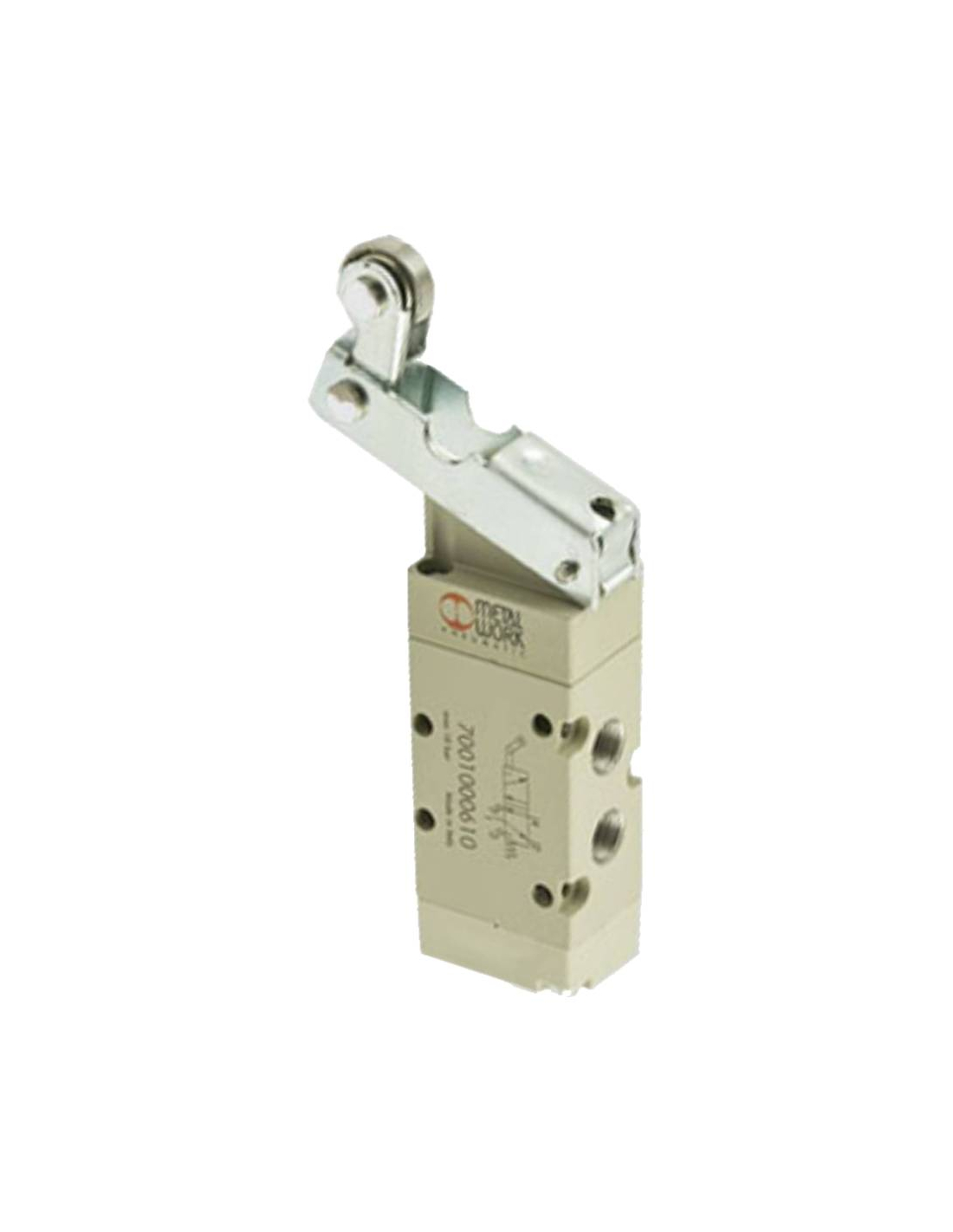

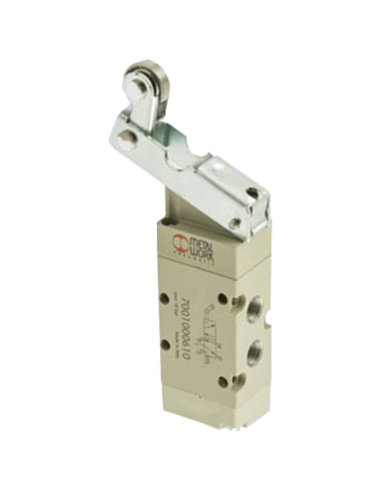

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Limit Switch pneumaticvalve with unidirectional lever drive with metal roller. The connections of the limit switch are by means of a 1/8" thread. The valve is 5-way and 2-position 5/2.

Manufacturer: Metal Work
Reference: MEV 25 URS OO - 7001000610
Thread valve mouths: 1/8
Drive force of 6 bar:
- Direct control version : 50
- servo-piloted version : 6
Operating pressure:
- direct control version ba: Vacio ÷ 10
- Servo-piloted version ba: 2.5 ÷ 10
Operating temperature °: -10 ÷ +60
Nominal diameter m: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min : 550

dimensiones valvula 1/8 5/2 palanca rodillo unidireccional

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Mechanical valves sheet

Download (478.69KB)
