Pulley V-belt SPA 80x1 slot taper T1210

€17.15 Tax included

€14.17 tax excl.

Pulley for trapezoidal belts Ø80mm, 1 slot. Machined for conical bushing - taper lock T1210. Made of cast steel and valid for all belts with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPA-80X1-T1210

  • Type of straps: Profile in "V" type A and SPA.
  • Diameter: 80 mm.
  • Number of strap slots: 1.
  • Taper: T1210

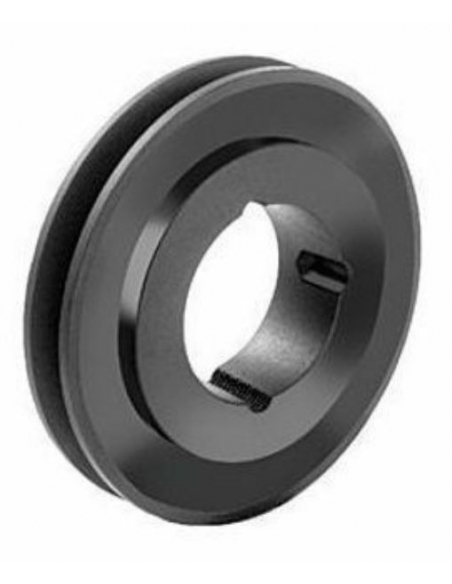

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: A and SPA.
  • Material: cast steel.
  • Primitive diameter: 80mm.
  • Number of slots: 1.
  • Type of conical bushing - taper: T1210
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.

Dimensions:

  • (Dp): 80
  • (Od): 85.5
  • (F): 20
  • (L): 25
  • (M): 5
  • (N): 75
  • Taper: 1210



Material for professional use, install in compliance with the regulations in force at the place of installation.
