Flat Lever 1/8-3/2 - Mindman
Flat Lever 1/8-3/2 - Mindman

Flat Lever 1/8-3/2 - Mindman

€47.61 Tax included

€39.35 tax excl.

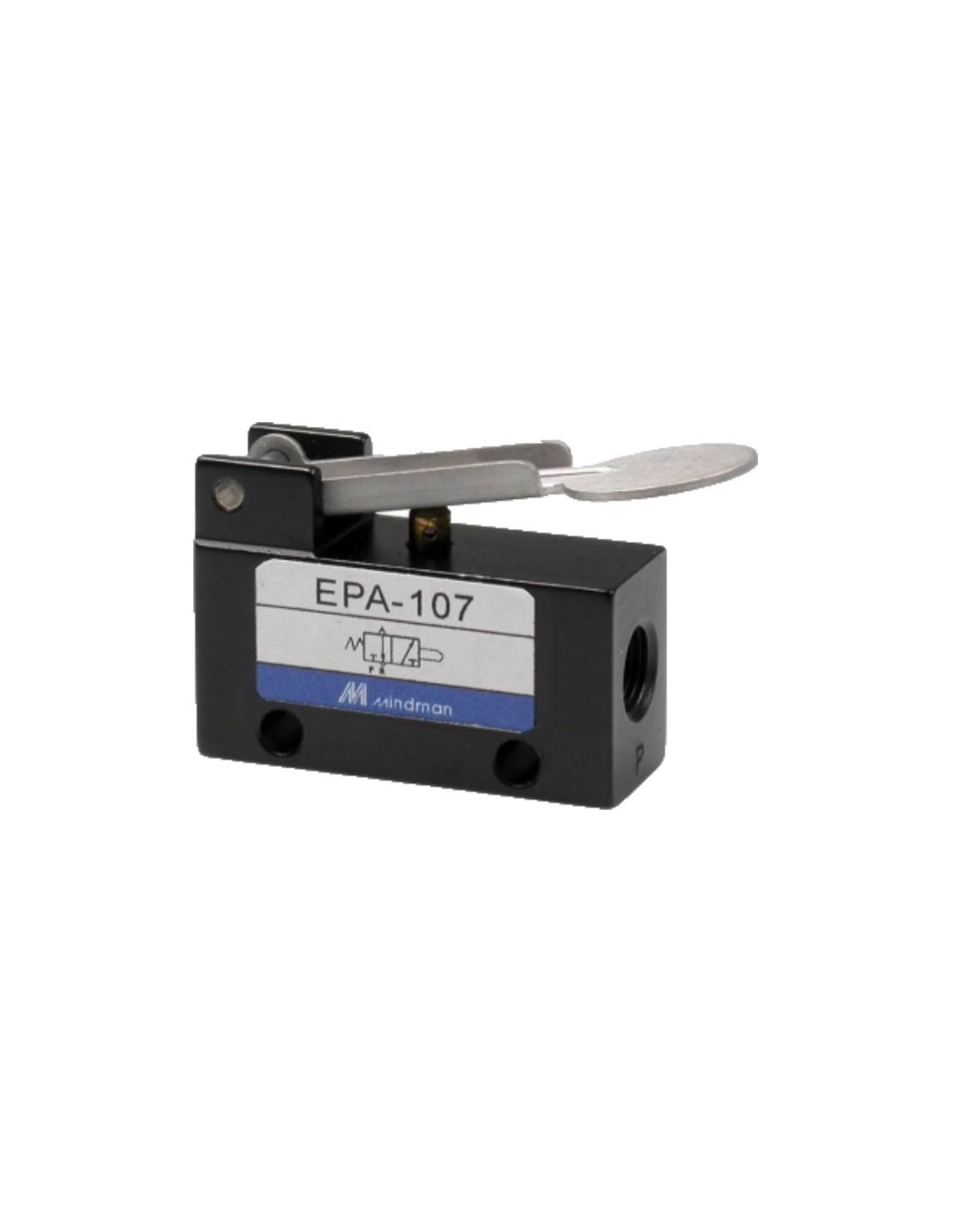

Flat lever , mechanically actuated pneumatic valve , 1/8 3-way thread. The limit switch is actuated by a manual pushbutton with 2 fixed positions.

Reference: 281EPA107



Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Pneumatic limit switch, pneumatic valve with mechanical actuation by means of a flat lever. The limit switch connections are by means of a 1/8” thread. The valve is 3-way.

Technical characteristics:

  • Manufacturer: Mindman .
  • Manufacturer reference: EPA-107
  • valve type: 1/8-3/2 bistable.
  • Thread type: G 1/8".
  • Type of activation: Manual button 2 fixed positions.
  • number of lanes: 3.
  • Fluid type: Air pressure, with or without lubrication.
  • Working pressure: 0÷9 Kgr/cm².
  • Maximum pressure: 9 Kgr/cm².
  • Working temperature: -5 to 60ºC.
  • Material: Aluminum and steel.
  • Weight: 54g.



Material for professional use, install in compliance with the regulations in force at the place of installation.


For more information, you can download the technical sheet by clicking on the "Annexes" tab.
