Emergency stop button with locking and valve: 3/2 NO side fittings Ø 4 mm- Aignep

€48.01 Tax included

€39.35 tax excl.

Instead of €48.01

PK-EMER32NOLX

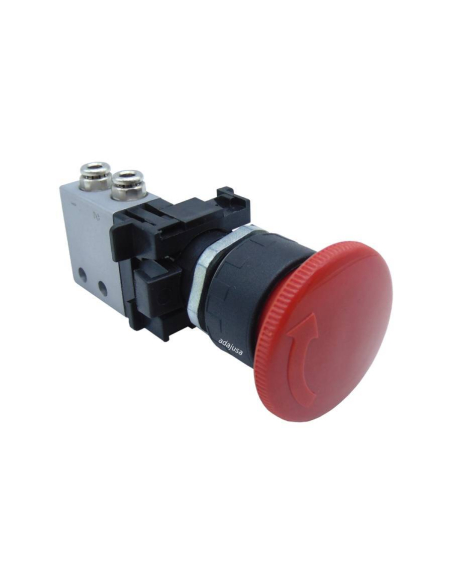

40 mm diameter pneumatic emergency stop push button with adapter for valve and normally open (NO) end-of-stroke valve, fittings on the side for 4 mm outer diameter tube with built-in adapter for the interface (push button-valve).

seta emergencia + final de carrera NO RL

Logotipo AignepNORMATIVAMICROVALVULA
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Emergency pushbutton for use with pneumatic limit switch valves with pushbutton actuation

Limit switch pneumatic actuated by metal strut, with integrated quick-connect fittings on the side for 4mm external pipe diameter. The valve is normally open (NO), i.e. when not pressed there is air at the outlet, air can flow through and when actuated the air stops flowing and the air in the outlet circuit communicates with the exhaust.

The scope of supply includes:

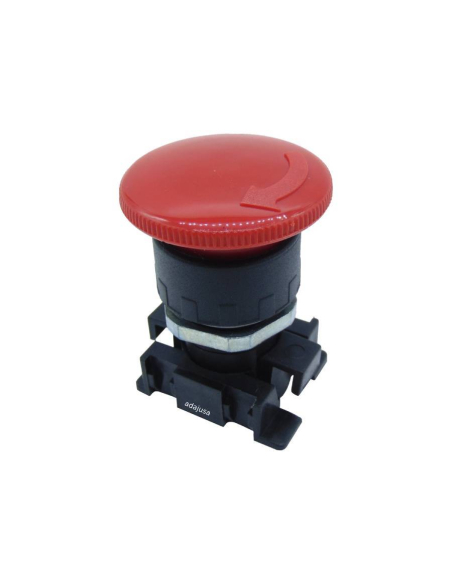

    • Push button body
    • Valve adapter (supplied with the pushbutton)

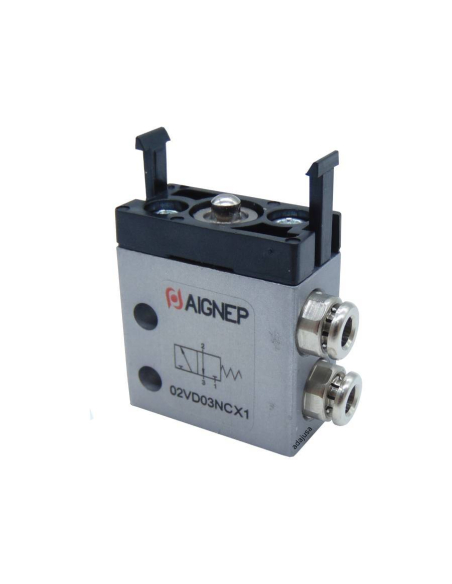

    • Limit switch valve NO with fittings on the side Ø 4 mm and adapter integrated in the valve.

Valve characteristics:


  • Manufacturer: Aignep
  • Valve type: 3/2 Normally closed closed (NC).
  • Type of limit switch actuation: metal strut.
  • Manufacturer's part number: 02VD03NOX1
  • Valve body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Fittings: quick couplings for pipe diameter 4 mm side connection.
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 100
  • Built-in adapter for interface (push-button-valve).
  • Installation: in any position.
With the valve adapter up to two valves can be installed at the same time. Only one type of valve is included in the scope of delivery. If desired, another valve can be purchased separately to be added to the push button



dimensionesmicrovalvula
setamonoestableaxial


Material for professional use, install in compliance with the regulations in force at the place of installation.
