Black long cam selector with 3 positions and strut valve: 3/2 NC side fittings Ø 4 mm - Aignep
Black long cam selector with 3 positions and strut valve: 3/2 NC side fittings Ø 4 mm - Aignep
Black long cam selector with 3 positions and strut valve: 3/2 NC side fittings Ø 4 mm - Aignep
Black long cam selector with 3 positions and strut valve: 3/2 NC side fittings Ø 4 mm - Aignep

Black long cam selector with 3 positions and strut valve: 3/2 NC side fittings Ø 4 mm - Aignep

€39.42 Tax included

€32.31 tax excl.

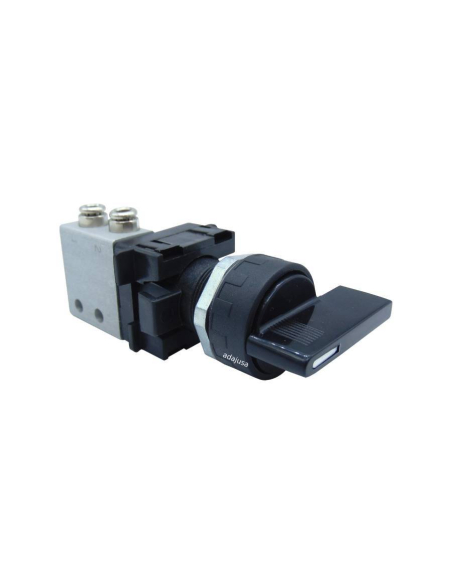

Pneumatic selector long cam 3 positions (2-0-1), and limit switch valve normally closed closed (NC), fittings located on the side for tube OD 4 mm

ESQUEMA PULSADOR+VALVULA NC (1)

Logotipo AignepNORMATIVAMICROVALVULA
Representative picture for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Short cam selector for limit switches, 3 positions (2-0-1). Adapter for the selector included.

Limit switch pneumatic actuated by metal strut, with integrated quick-connect fittings on the side for 4mm external pipe diameter. The idle state of the limit switch valve is normally closed (NC), i.e. when not pressed there is no air at the outlet as air cannot pass through and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

The scope of supply includes:

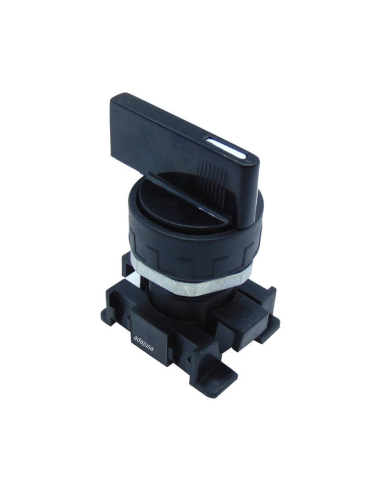

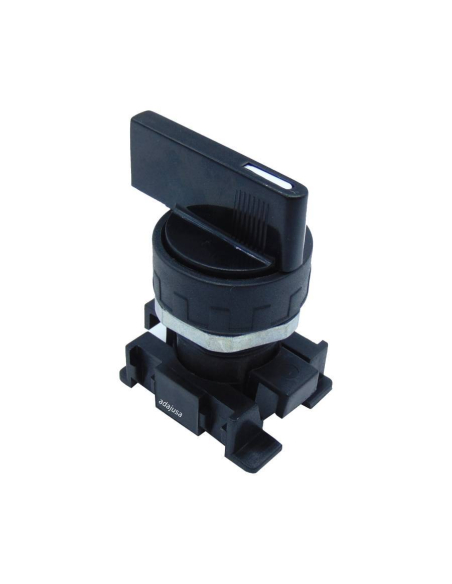

    • Selector body
    • Valve adapter (supplied with the selector)
    • NC limit switch valve with fittings on the side Ø 4 mm

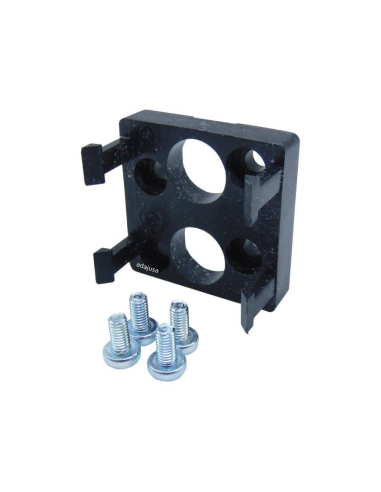

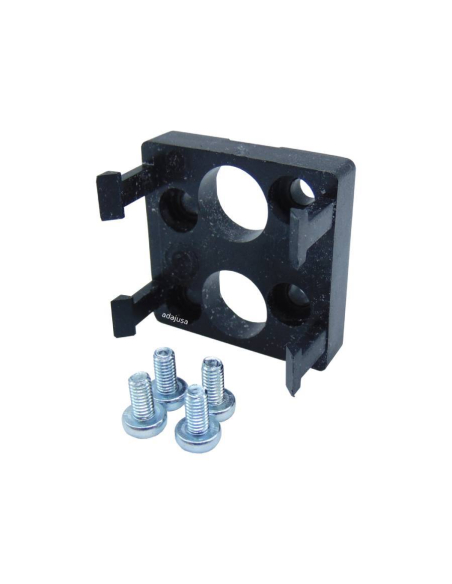

    • Adapter for interface (valve-selector) including 4 nuts.

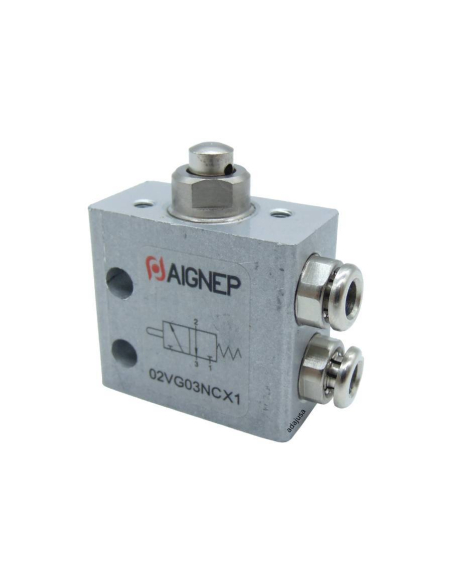

Valve characteristics:


  • Manufacturer: Aignep
  • Valve type: 3/2 Normally open closed (NC).
  • Type of limit switch actuation: metal strut.
  • Manufacturer's part number: 02VG03NCX1
  • Valve Body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Fittings: quick couplings for pipe diameter 4 mm side connection.
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60 °C
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 100
  • Installation: in any position.
With the valve adapter it is possible to fit up to two valves at the same time. Only one type of valve is included in the scope of delivery. If desired, another valve can be purchased separately to be added to the push button



02VG03NCB5
levalarga

Material for professional use, install in compliance with the regulations in force at the place of installation.
