1/2 adjustable overpressure safety valve

Adjustable overpressure safety valve 3/4 - Metal Work

Name: Adjustable overpressure safety valve 3/4 - Metal Work
Brand: Metal Work
SKU: VS34NT2
Price: 26.38 EUR
Availability: InStock

€26.38 Tax included

€21.62 tax excl.

VS34NT2

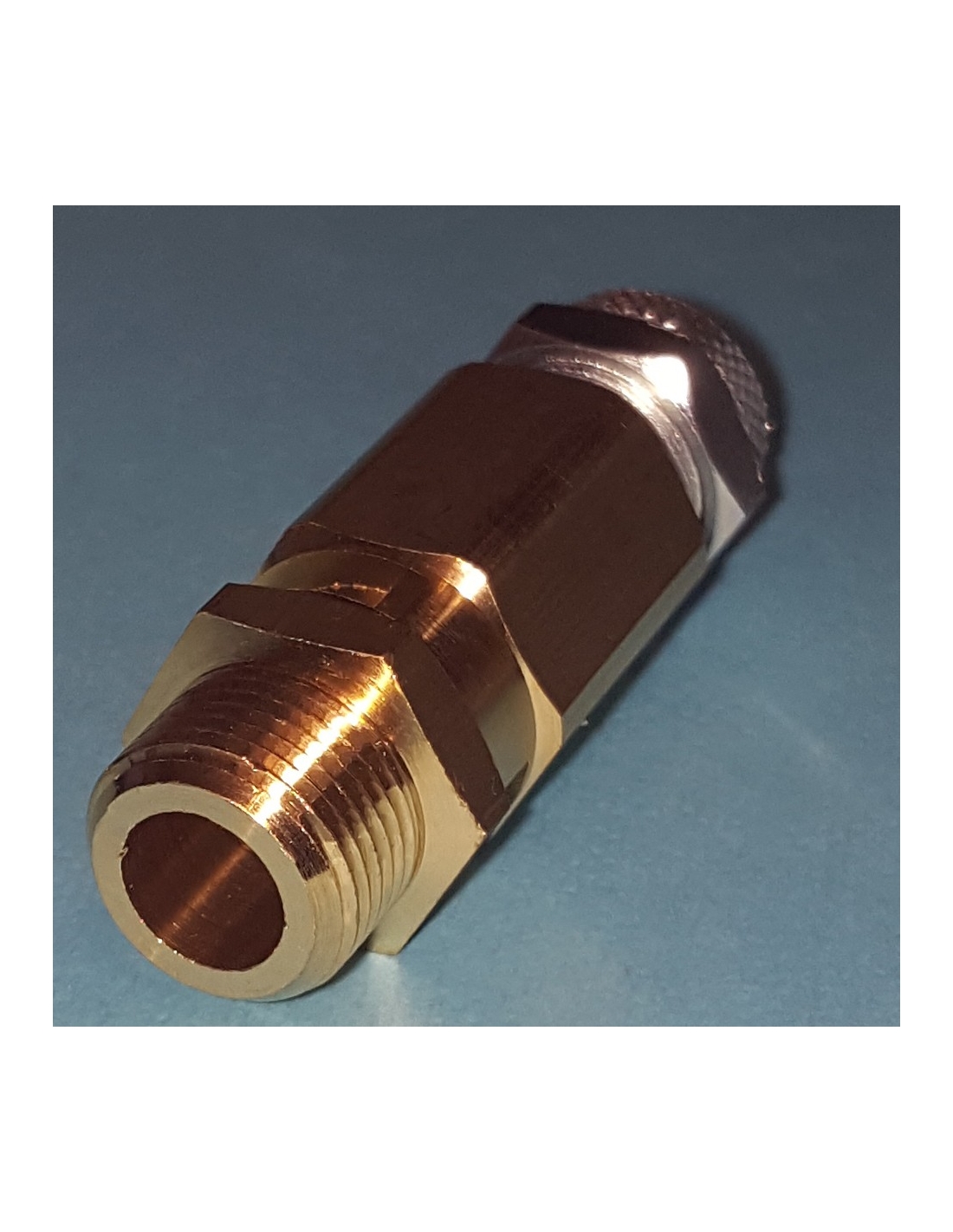

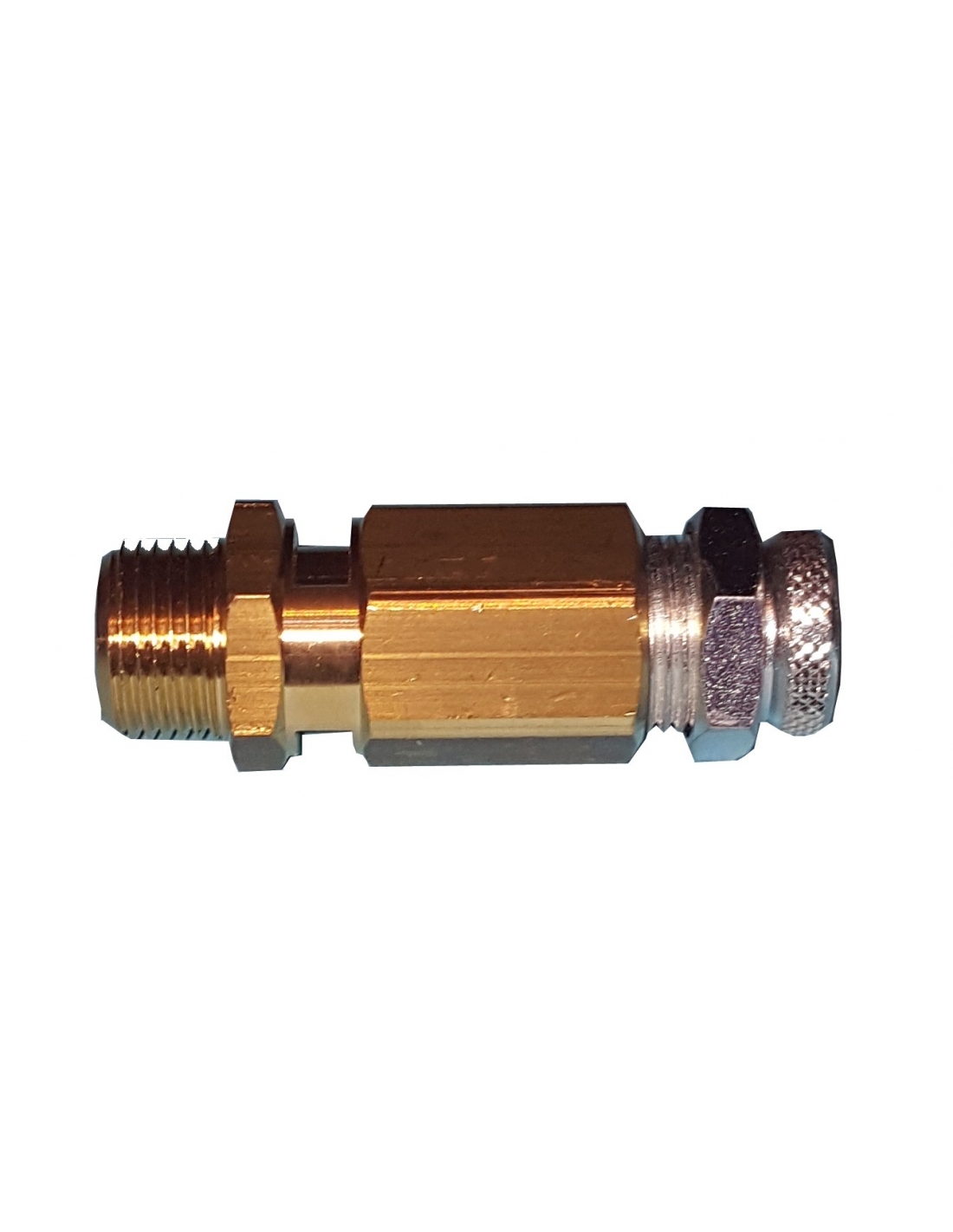

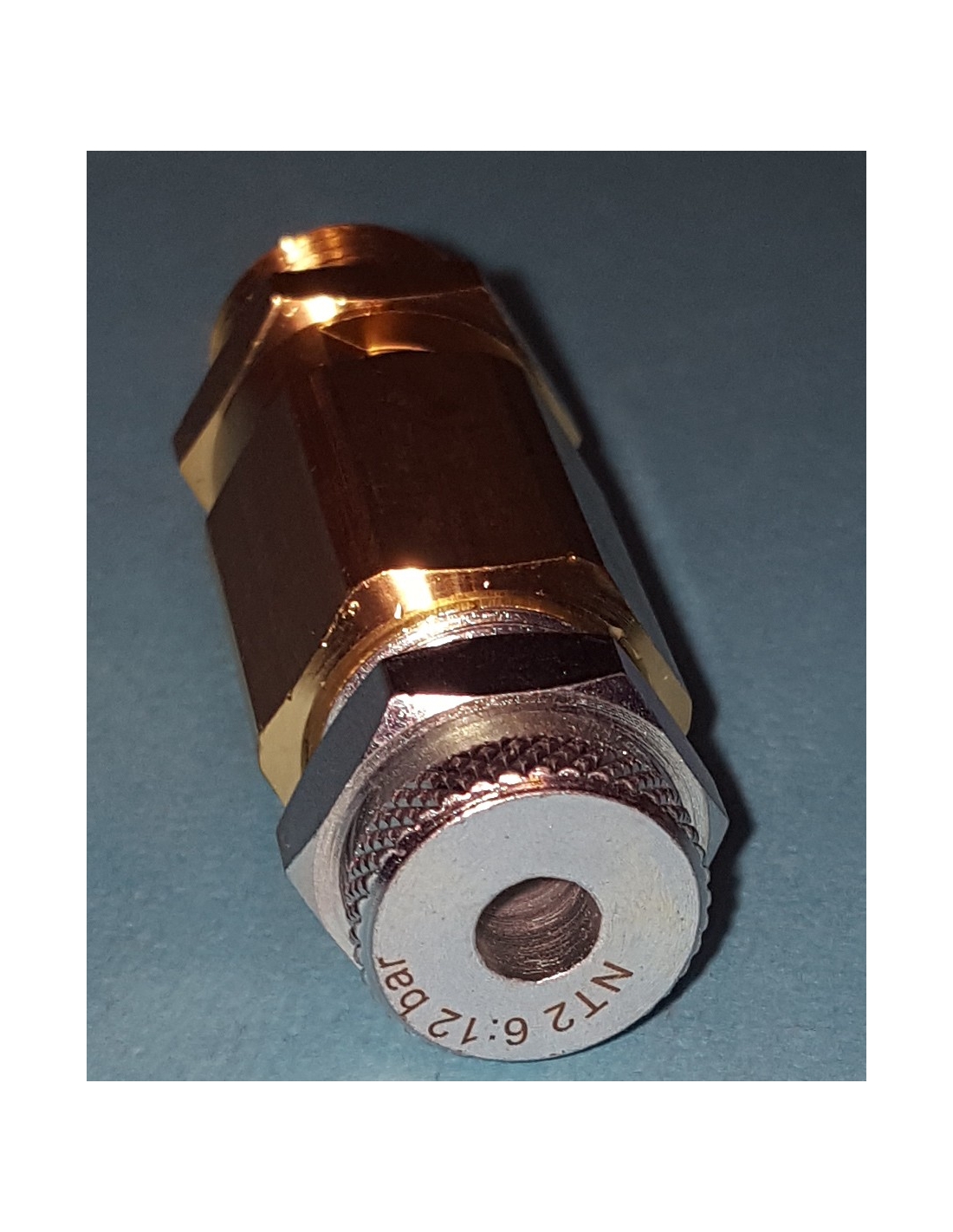

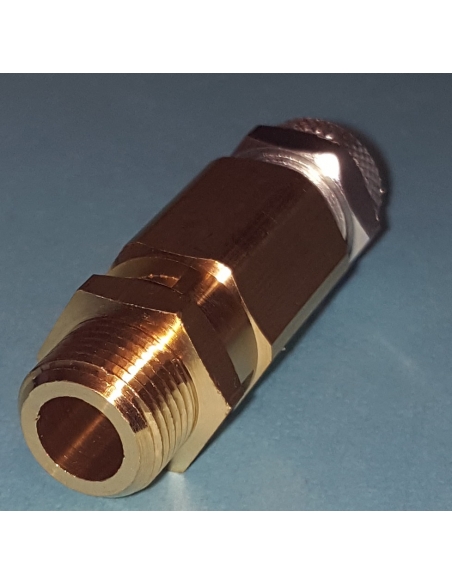

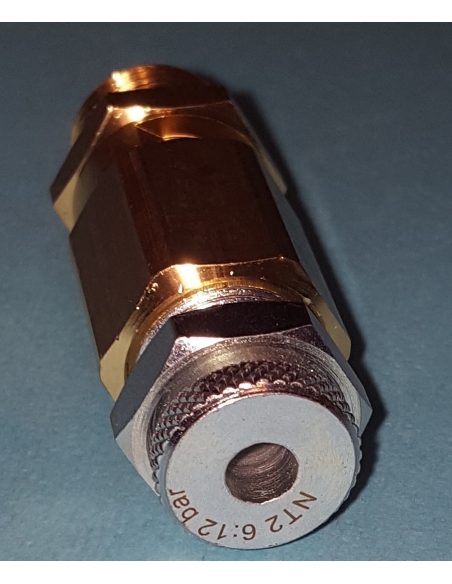

Overpressure safety valve for the relief of pneumatic circuits and compressors. With 3/4" thread ready to be adjusted by the user.

The range of settings is between 6 and 12 bars of pressure.

Reference: VS34NT2

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Overpressure valve with 3/4" thread and ready to be adjusted by the user between pressure ranges of 6 to 12 bars.

The usual use of this valve is to avoid overpressure in the circuits in which it is installed being the type of seat of the total lifting joint.

On request they can be supplied with other adjustment ranges.

Specifications:

Reference: VS34NT2.
Provider: Metal Work
Connection thread: G 3/4".
Adjustment pressure range: 6 to 12 Bar.
Maximum pressure: 40 bar.
Payroll diameter (DN): 17mm.
Maximum flow at 12Bar: 9350 l/min.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Overpressure valve

Certificate Overpressure safety valve

Download (196.34KB)

valve 1_4

Overpressure Safety Valve Tab

Download (86.17KB)
