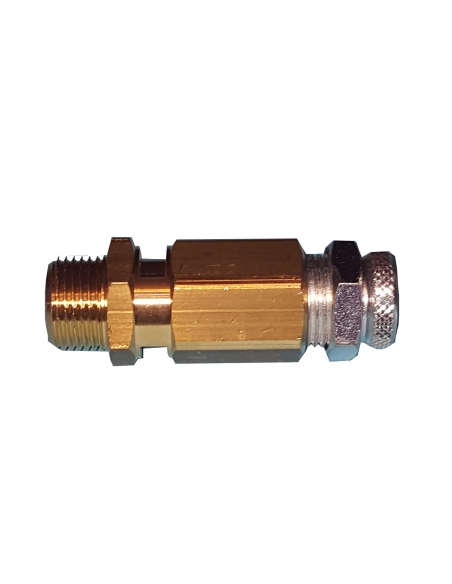

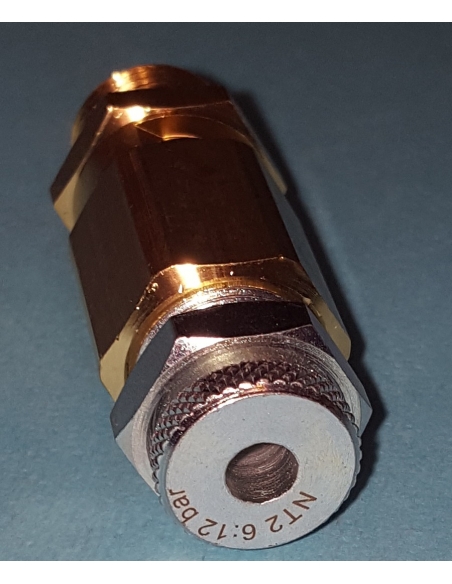

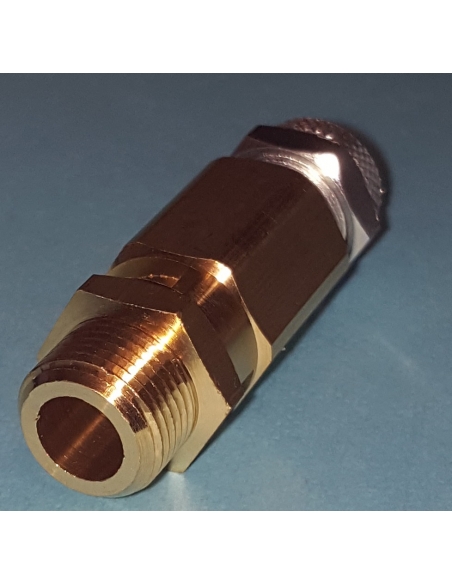

Adjustable overpressure safety valve 1/4 6 - 12 BAR - Metal Work

€5.11 Tax included

4.19 tax excl.

VS14NT2

Overpressure safety valve for the relief of pneumatic circuits and compressors. With 1/4" thread ready to be adjusted by the user.

The range of settings is between 6 and 12 bars of pressure.

Reference: VS14NT2


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Overpressure valve with 1/4" thread and prepared to be adjusted by the user between pressure ranges of 6 to 12 bar.

The usual use of this valve is to avoid overpressions in the circuits in which it is installed being the type of seat of the total lifting joint.

On request they can be supplied with other adjustment ranges.

Technical details:

  • Reference: VSN14NTS.
  • Connection thread: G 1/4".
  • Adjustment pressure: 6 to 12 Bars.
  • Overpressure: +10% adjustment pressure.
  • Maximum pressure: 40 Bars.
  • Nominal diameter: 6mm.
  • Flow rate: 1300 l/min.

Dimensiones válvulas seguridad sobrepresión

  • Dimension "A": 17mm.
  • Dimension "B": 50mm.
  • Dimension "C": 10mm.

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Questions

Question
Tenéis válvulas q tengan el rango de ajuste más pequeño. Por ejemplo entre 2 y 8 bares. Graciad
Answer

Buena tardes,

No, solo hay las ofertadas en nuestra pagina web.

Saludos

Felix on 12/14/2017 13:29:49
