Safety valve overpressure 1/2 11 Bar - Metal Work

Name: Safety valve overpressure 1/2 11 Bar - Metal Work
Brand: Metal Work
SKU: VS1211APED4
Price: 8.784 EUR
Availability: InStock

€8.78 Tax included

€7.20 tax excl.

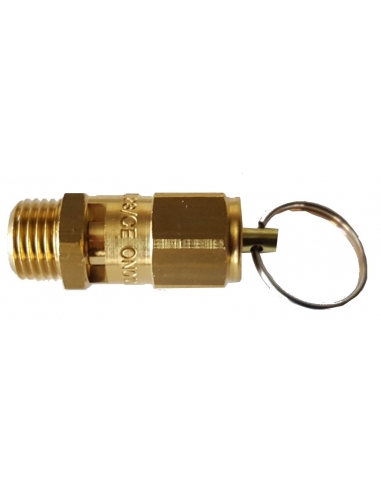

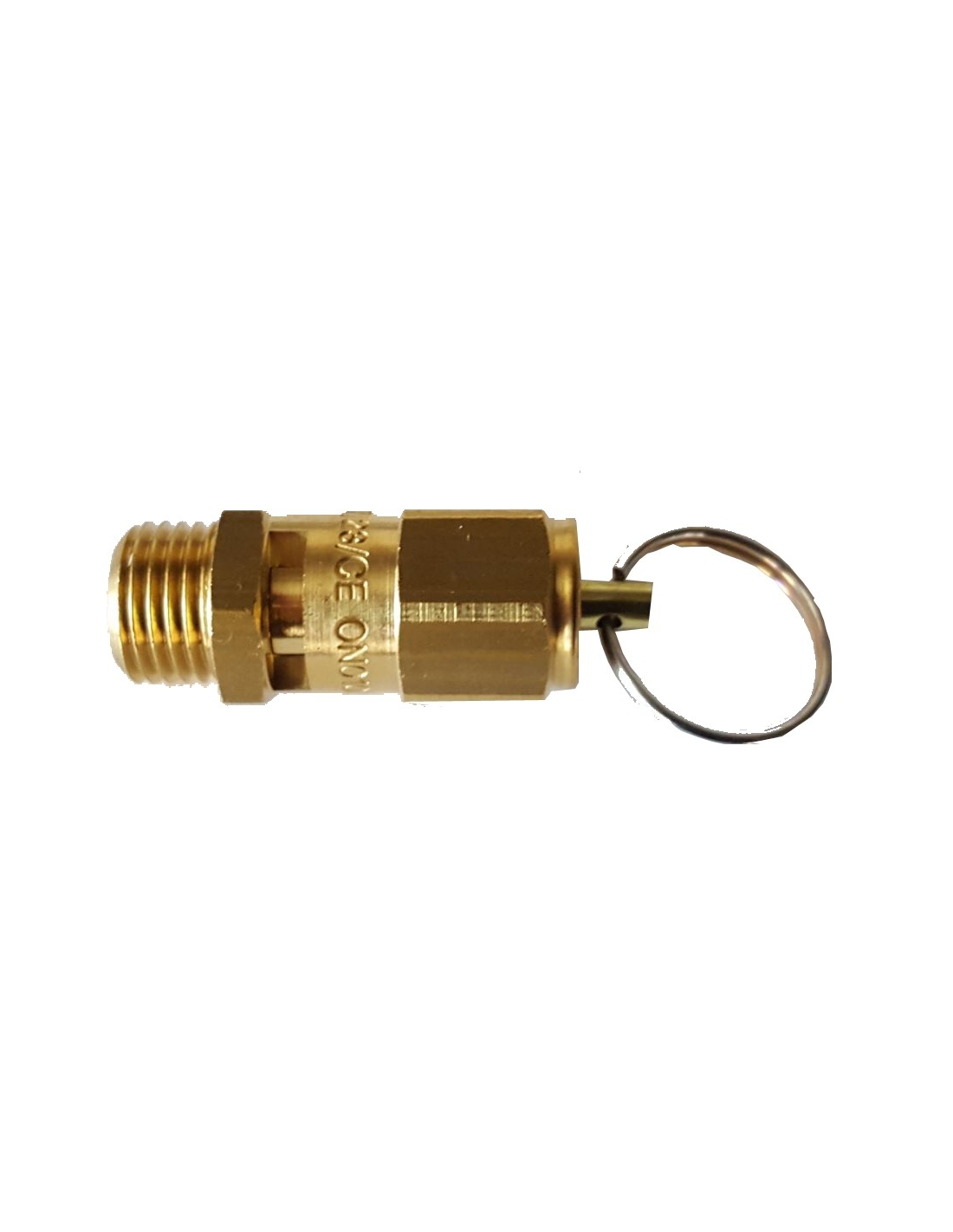

Overpressure safety valve for the relief of pneumatic circuits and compressors. With 1/2" thread adjusted and sealed at a pressure of 11 bars. The valve is supplied with its corresponding certificate.

Reference: VS1211APED4

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Overpressure valve with 1/2" thread and adjusted to 11 bars. To avoid overpressures in the circuits in which it is installed or on compressors. The valve is built by spring, total lifting seat and sealed to the working pressure.

The valve is supplied with its corresponding certificate.

Manufactured according to the MIE-AP17 regulation of the regulation of precision devices, being built by spring and total lifting seat.

Specifications:

- Supplier: Metal Work
- Reference: Z33VS1211APED4
- Connecting thread: G 1/2".
- Adjustment pressure: 11 Bars.
- Overpressure: +10% adjustment pressure.
- Maximum pressure: 40 Bars.
- Nominal diameter: 12mm.
- Flow rate: 5040 l/min.

Dimensiones válvulas seguridad sobrepresión

Elevation "A": 22mm.
Elevation "B": 60mm.
Dimension "C": 12mm.

For other sizes or adjustment pressures consult.

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Overpressure valve

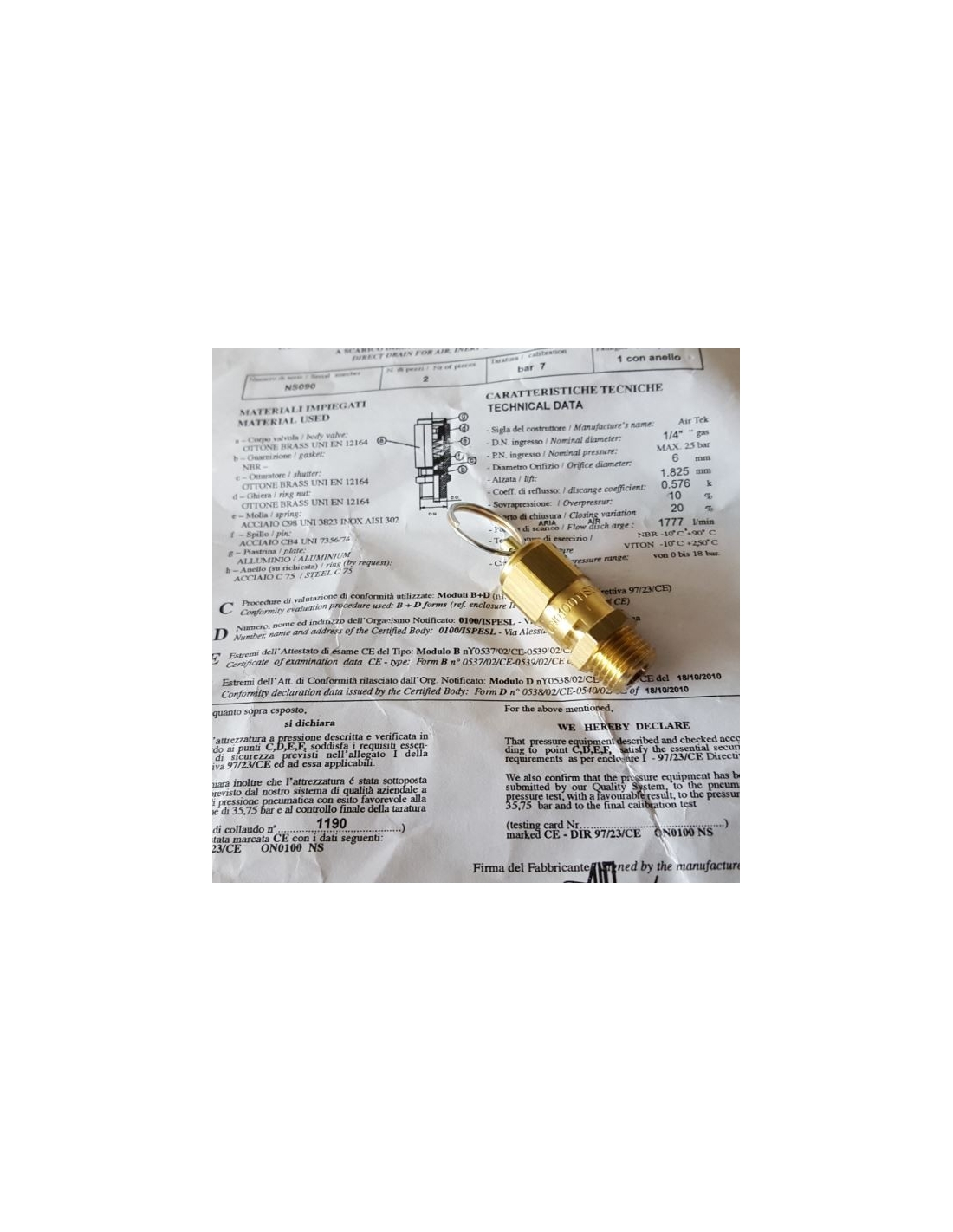

Certificate Overpressure safety valve

Download (196.34KB)

valve 1_4

Overpressure Safety Valve Tab

Download (86.17KB)
