Simple sprockets Z38 taper lock T3020 1 1/4 x 3/4 20B-1 ISO 606

€299.11 Tax included

245.17 tax excl.

PZ38114T30201

Simple sprockets for 3020 roller chain 20B-1 bushing taper lock according to European standard DIN ISO 606

Reference: PINHON Z38 1.1/4-T3020

Teeth: 38

ISO: 20B-1

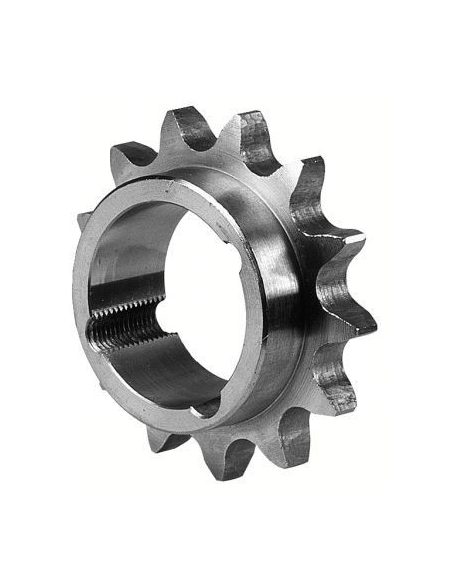

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for 3020 roller chain 20B-1 bushing taper lock according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z38 1.1/4-T30208


Characteristics:

  • 1" 1/4 x 3/4" mm ISO 20B-1
  • 19.05 x 11.68 mm
  • Chain pitch: 31.75 mm
  • Inner width: 19.56 mm
  • Roller diameter: 19.05 mm
  • Teeth: 38
  • Taper Lock: 3020
  • Outer Diameter (S): 399.6
  • Primitive diameter (Dp): 384.49
  • Hub diameter (d): 160
  • Width (H): 51


Material for professional use, install in compliance with the regulations in force at the place of installation.
