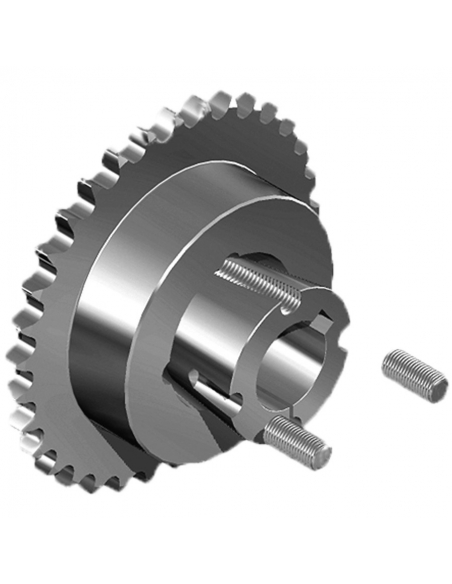

Simple sprockets with taper 20B-1 ISO 606 - ADAJUSA

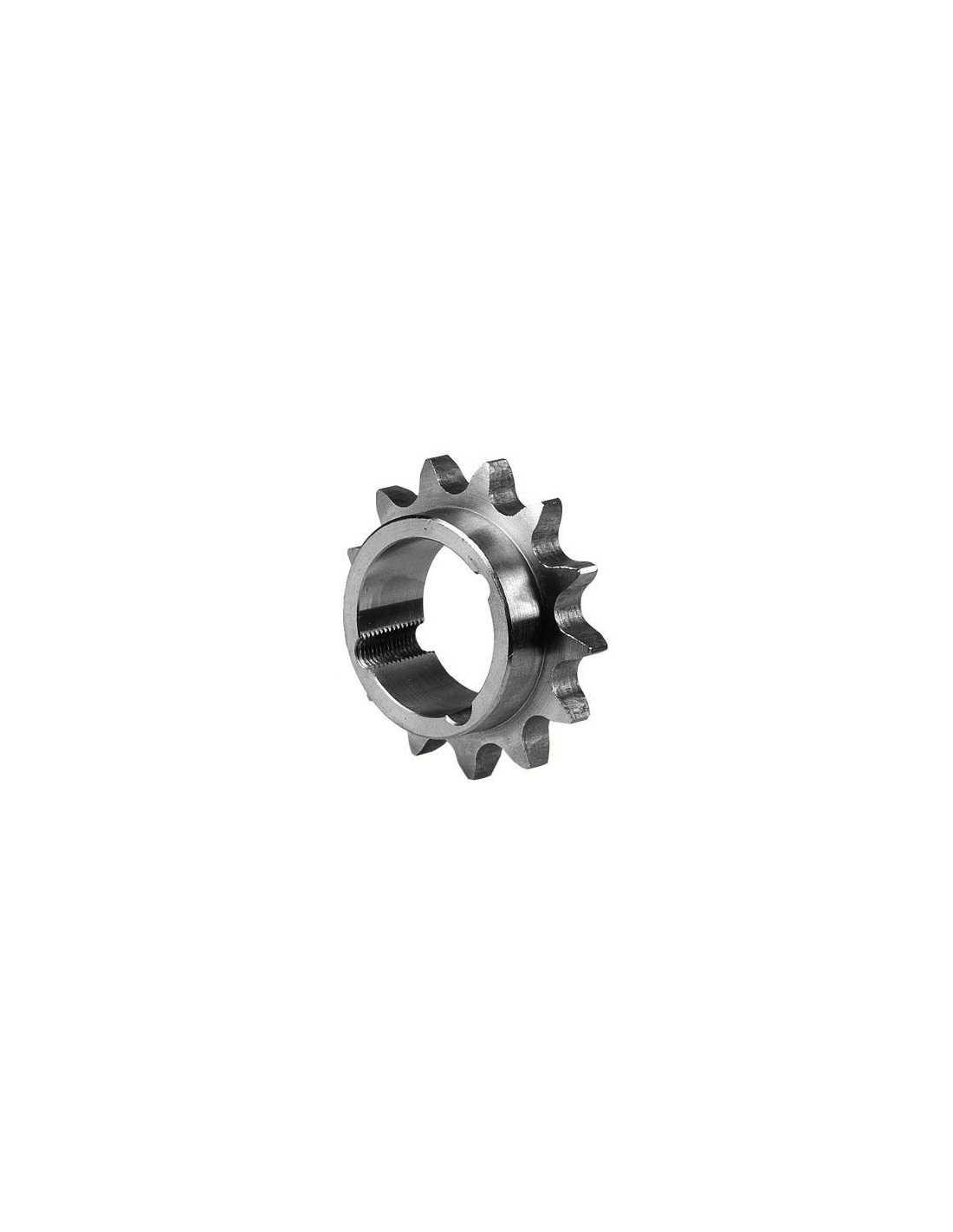

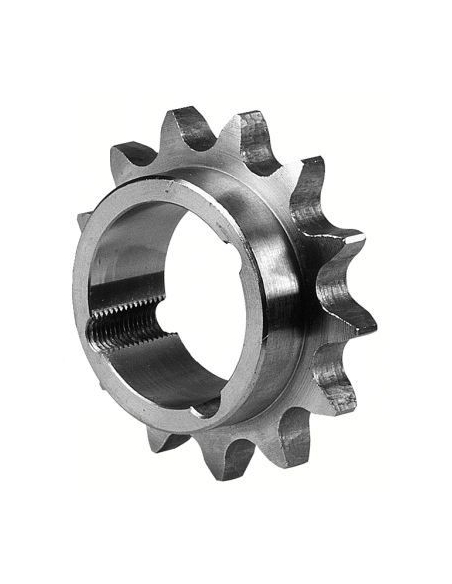

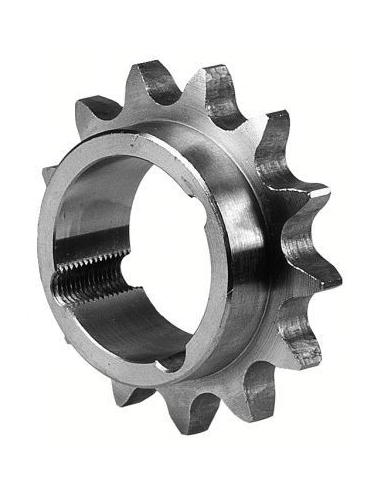

Simple taper lock pinions 5/8 x 3/8 10B - ADAJUSA

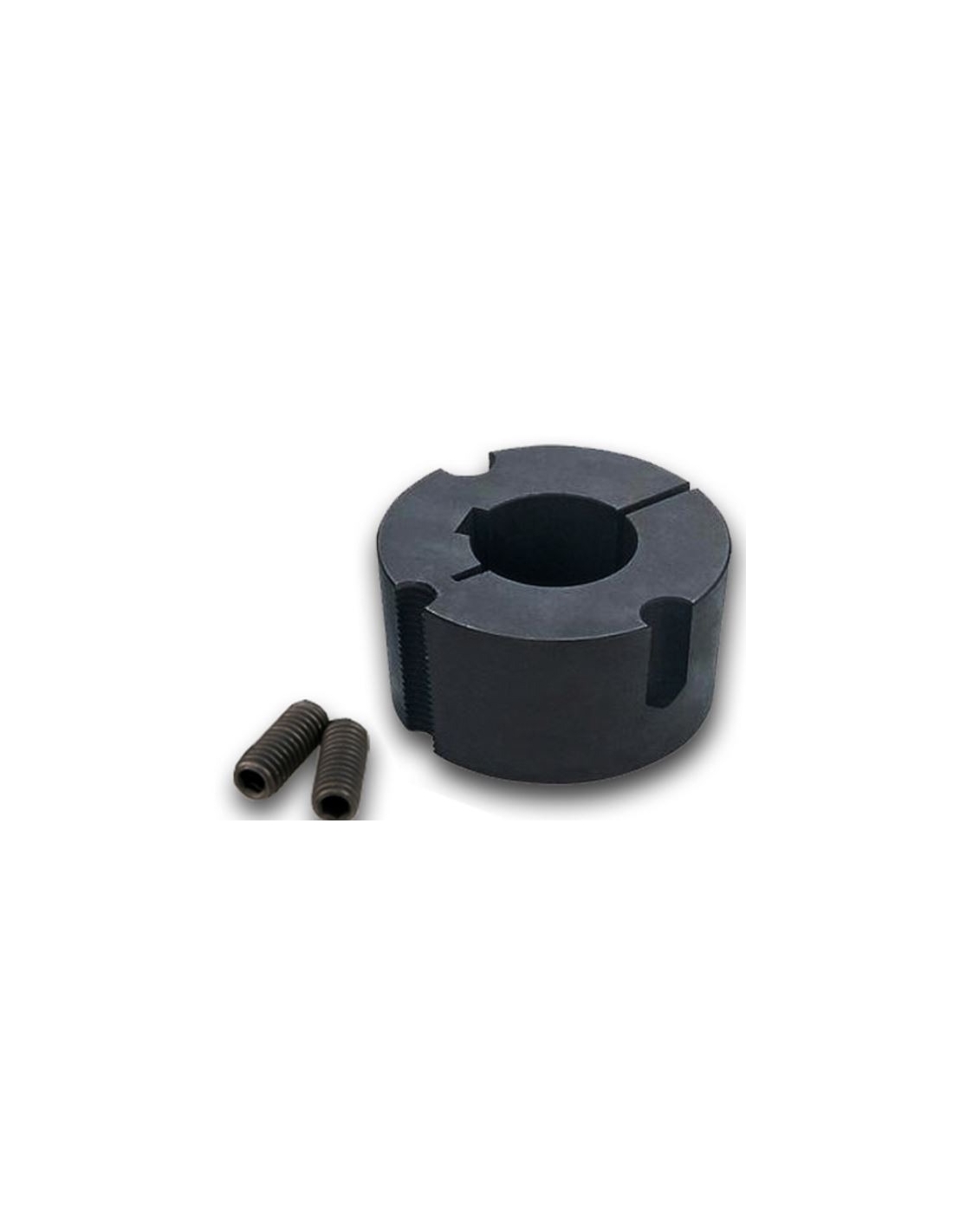

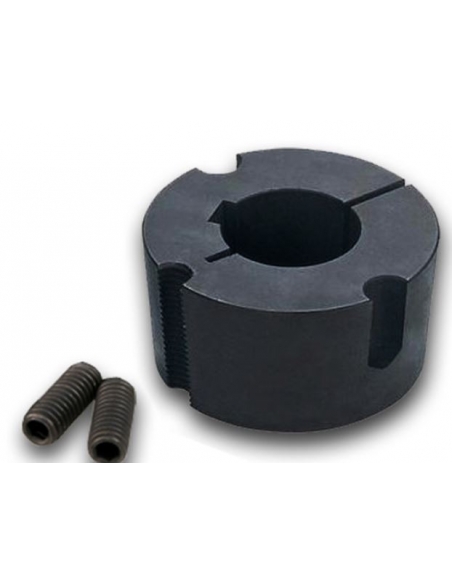

Taper lock size 2517
Simple sprockets with taper 20B-1 ISO 606 - ADAJUSA
Simple taper lock pinions 5/8 x 3/8 10B - ADAJUSA
Taper lock size 2517

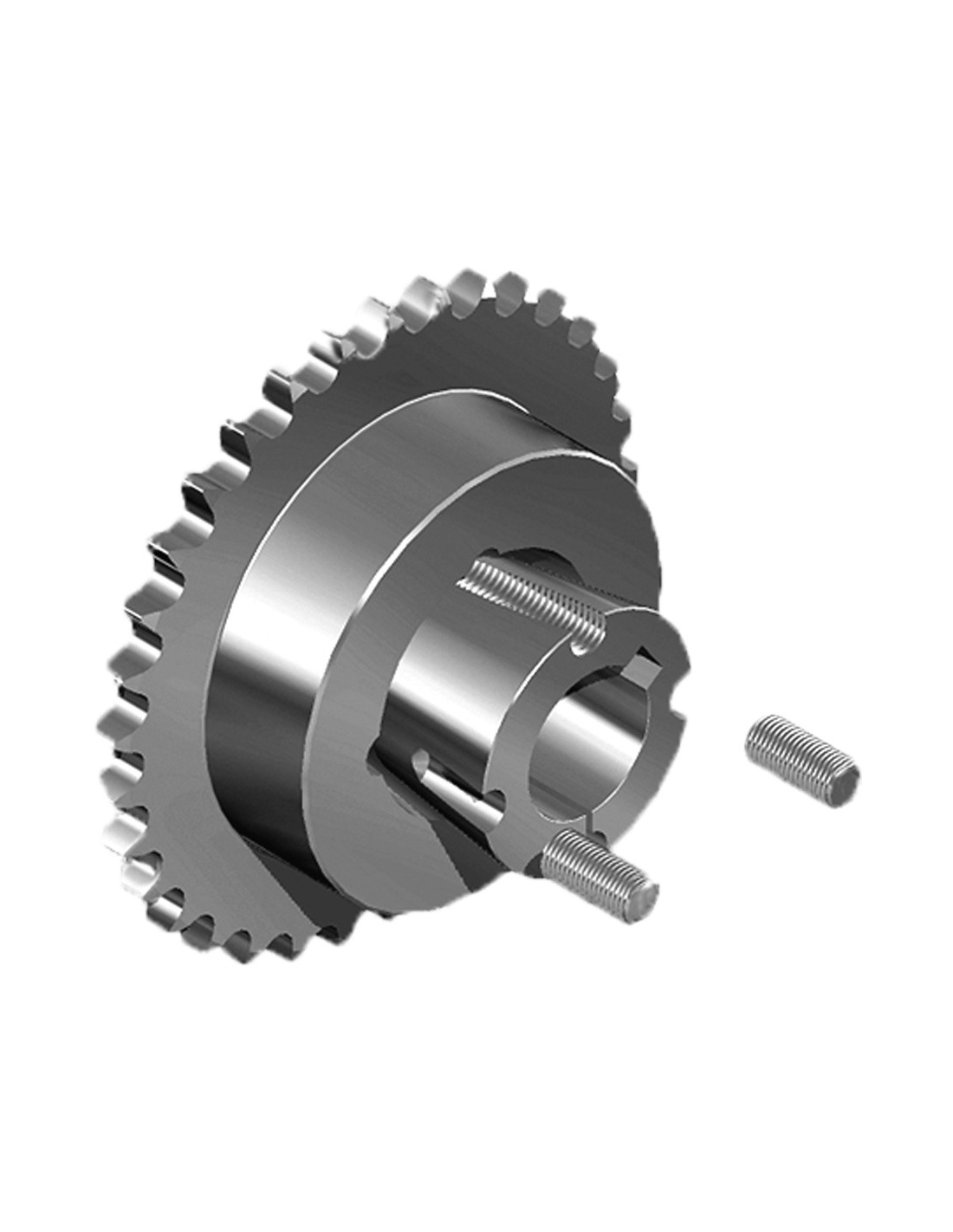

Simple sprockets Z38 with taper T3020 20B-1 ISO 606

€541.57 Tax included

€447.58 tax excl.

Simple sprockets with cap lock taper 3020 for roller chain 20B-1 according to European standard DIN ISO 606

Teeth: 38

ISO: 20B-1

Taper lock available in various shaft diameter sizes. Select the desired measurement.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Simple sprockets with 3020 bushing taper lock of roller chain 20B-1 according to European standard DIN ISO 606

The bushings are supplied with the hole finished to the selected diameter, standardized chavetero for the selected shaft diameter, prisoners and screws.

Manufacturer: Technox

Taper reference: T.L 3020-0xx
Pinion reference: PINHON Z25 1.1/4-T30208

Taper features:

Dimensiones-taper

  • Size: 3020.
  • Available diameters: 25,28,30,32,35,38,40,42,45,48,50,55,60,65,70 and 75.
  • Tightening torque: 90.0.
  • D1: 108.0 mm.
  • Type: A.
  • S: 50.8

Characteristics pine nut:


Characteristics:

  • 1" 1/4 x 3/4" mm ISO 20B-1
  • 19.05 x 11.68 mm
  • Chain pitch: 31.75 mm
  • Inner width: 19.56 mm
  • Roller diameter: 19.05 mm
  • Teeth: 38
  • Taper Lock: 3020


Material for professional use, install in compliance with the regulations in force at the place of installation.
