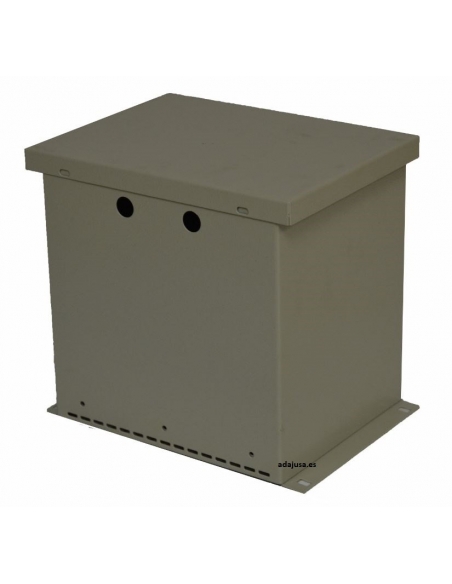

6KVA ultra-insulated single-phase transformer with IP23 box
6KVA ultra-insulated single-phase transformer with IP23 box

Single-phase transformer 6000 VA 230/230V ultra insulation box IP23

Special manufacturing material
€521.84 Tax included

427.74 tax excl.

TRA6000
Ultra-insulated 6kVA (6000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations sensitive to electrical noise.

Reference: TRA6000
transformer symbol 230-230 with screen

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

2 questions about the product
Privacy
Shipments
Returns


Single-phase ultra-insulation transformer for galvanic separation of circuits or machinery, dry type, with electrostatic screen between primary and secondary. With a metal layer that offers a degree of protection IP23.

This ultra-isolation transformer provides separation between primary and secondary circuits through a safety electrostatic screen that filters and conducts unwanted signals and disturbances to ground. Referenced to ground it can generate neutral in two-phase installations. The degree of effectiveness of this screen depends directly on the quality of the installation's grounding. For the generation or referencing of the neutral it is necessary to ensure an efficient ground connection.

They are supplied in a metal box that provides an IP-23 insulation degree, connection through terminals. It does not incorporate any overload protection circuit.

Manufactured with low loss magnetic sheet providing high performance.



Technical characteristics:


  • Reference: TRA6000
  • Windings: Thermal class N 200ºC.
  • Primary voltage: 230Vac.
  • Secondary voltage: 230Vac.
  • Power: 6KVA.
  • Frequency: 50/60Hz.
  • Electrostatic screen between primary and secondary
  • Test voltage: 3KV between windings and ground
  • Insulators: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metallic Box )
  • Ambient temperature: TA=25ºC
  • Cooling: ANAN (Natural Air)
  • Certificate: UNE-EN 61558


TRA transformer dimensions

The transformer is supplied without any type of overload protection; its installation is mandatory to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Vorrei istallare un trasformatore stabilizzato, perché ho un tratto di linea di circa 300 metri dal contatore monofase attualmente 4,5kw alla casa,alimentato con un cavo volante 2x25 mmq cosa mi consigliate?
Answer
Buongiorno.

Da quello che capiamo è che devi stabilizzare la linea che hai, per questo non ti serve un trasformatore ma uno stabilizzatore monofase.

Il produttore consiglia di sovradimensionare del 20% il carico massimo che deve supportare, quindi 4,5 x20% = 0,9 bisognerebbe cercarne uno che supporti un carico di 5,4 kw.
Il link che vi lascio è 6kw.

È anche importante sapere quale tensione arriva alla casa dopo aver percorso i 300 metri poiché lo stabilizzatore ha portate massime e minime che devono essere rispettate.
Caratteristiche tecniche:

Produttore/Fornitore: Generico-SEV
Riferimento: M1-7.5
Potenza: 7,5kVA (7500VA - 6000W)
Corrente massima in uscita (apparente): 26A
Intervallo di correzione dell'ingresso: monofase 160 V-250 V
Funzionamento: 130 V-260 V
Frequenza operativa: 47-64Hz
Protezione ingresso: sovracorrente/alta e bassa tensione/scaricatore di sovratensione
Intervallo di tensione in uscita: monofase 230 V ± 2%
Sovraccarico: 200% per 10 secondi
Tensione di interruzione in uscita: 180-260 V
Forma d'onda di uscita: onda sinusoidale pura
Protezione in uscita: sovracorrente
Fattore di potenza: 0,8
Misurazione e indicatori: Ingresso (V) / Uscita (V) / Intensità (A) in uscita
Tempo di funzionamento continuo a pieno carico: 0...105%
Carico permanente < 105%: < 7/24
Efficienza di ricarica: > 96%
Temperatura ambiente operativa: -40º ~ +55ºC
Temperatura di stoccaggio: -25º ~ +60ºC
Grado di protezione della custodia: IP21
Livello di rumore: <50 dB
Dimensioni: 56x40x29 cm
Peso: 43Kg
Normative: UNE-EN 61558 / UNE-EN 60204

Tuttavia, verifica che soddisfi le tue specifiche.

Saluti.
Adajusa.
Antonio on 08/15/2024 18:50:27
Question
HE RECIBIDO EL TRANSFORMADOR TRA 6, NO TRAE ESQUEMA DE CONEXIONES. LA BORNA P HAY QUE CONECTARLA A ALGUN SITIO. PARA HACER PUNTO NEUTRO, TENGO QUE PONER UNO DE LOS CABLES DE SALIDA A TIERRA INDEPENDIENTE?
Answer
Buenas tardes,

La borna debe conectarse a tierra. Y debe referenciar uno de los bornes de salida a una pica de tierra independiente.


Un saludo

ADAJUSA
LUIS LOPEZ TOLEDO on 10/25/2022 11:17:30

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

10KVA ultra-insulated single-phase transformer with IP23 box
Special manufacturing material
Single-phase transformers

Single-phase transformer 10000 VA 230/230V ultra insulation box IP23

Generico-SEV
TRA10000
€863.61 (€707.88 tax excl.)
Ultra-insulated single-phase 10kVA (10000VA) transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations...
Transformer 1600VA E:230/400V S:12/24V Transformer 1600VA E:230/400V S:12/24V 2
Special manufacturing material
Single-phase transformers

Transformer 1600VA E:230/400V S:12/24V

Especial-SEV
MI16001
€284.46 (€233.16 tax excl.)
Transformer single-phase of maneuver for command, control and general uses. The power of the transformer is 1600VA and it is encapsulated in resin. The degree of protection of the transformer is IP-20. This range of transformers has two output voltages 12Vac or 24Vac, each of them selectable by means of jumpers. Reference: MI-1600-1 Representative...
Transformer 100VA IP00 special voltages
Special manufacturing material
Single-phase transformers

Transformer 100VA IP00 voltages as needed

Especial-SEV
TR2-100-ESP
Starting from €50.02 (€41.00 tax excl.)
Single-phase maneuver transformer for command, control and general uses. The transformer power is 100VA and with protection level IP00. Primary and secondary voltage can be requested by the customer. The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac. Select...
View

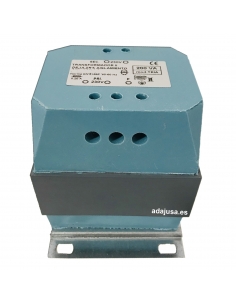

1600VA ultra-isolation IP-20 transformer
