Pack

Solenoid valve 1/2 3 ways bistable assisted 24Vac 5VA - Metal Work - adajusa.es

Solenoid valve 1/2 3 bistable roads assisted without coil - Metal Work - adajusa.es

24Vdc 5W T22 x 8 solenoid valve coil - Metal Work

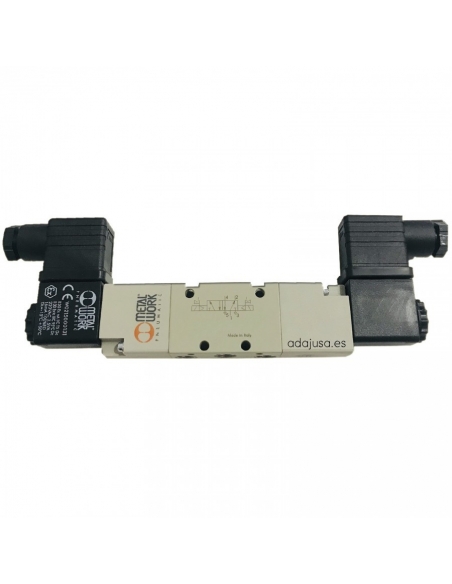

Solenoid valve 1/2 3-way bistable assisted 24Vac 5VA - Metal Work

Name: Solenoid valve 1/2 3-way bistable assisted 24Vac 5VA - Metal Work
Brand: Metal Work
SKU: PK-E123BIA24A
Price: 220.454 EUR
Availability: PreOrder

€220.45 Tax included

€180.70 tax excl.

1/2 3-way bistable assisted, closed (NC) solenoid valve for industrial and general use applications.

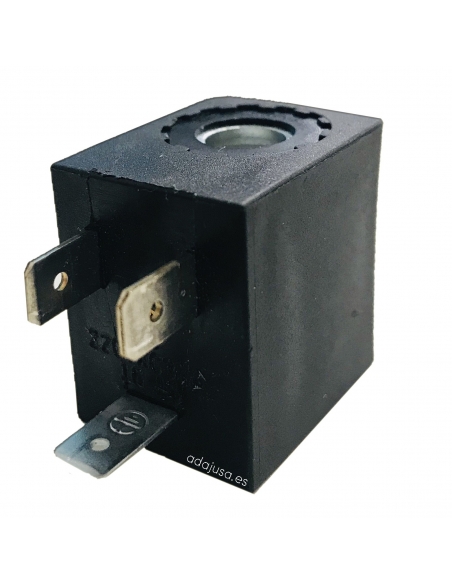

24Vac 5VA T22 diameter 8 solenoid valve coil - Connector 22 mm

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

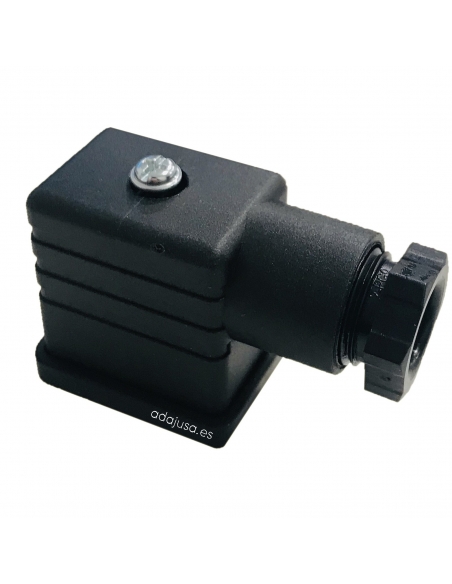

Solenoid valve connector size 22 - Metal Work

€1.53

Solenoid valve coil 24Vac 5VA T22 diameter 8 - Metal Work

€9.35

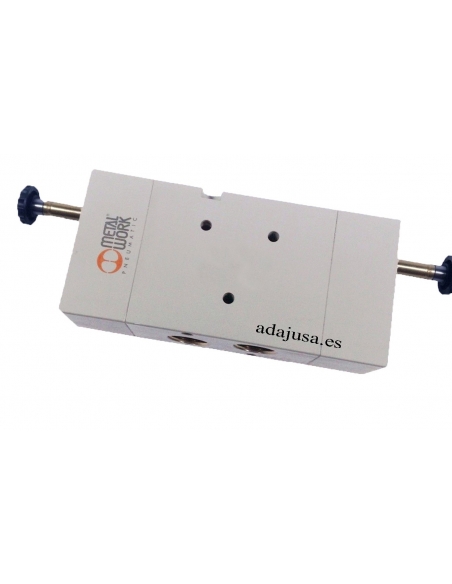

Electrovalve 1/2 3-way bistable assisted without coil - Metal Work

€198.71

No queries yet, leave the first!

Privacy

Shipments

Returns

1/2 3-way assisted bi-stable pneumatic solenoid valve. For general and industrial applications. This solenoid valve needs an external pneumatic pressure socket for pilot operation, allowing you to work even in vacuum applications.

Solenoid valve coil 24Vac 5VA T22 diameter 8

22mm plastic connector

Supply includes:

1 Solenoid valve 1/2" 3/2 assisted bistable
2 Coils 24Vac 5VA
2 Connectors 22 mm

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: SOV43SEBOO Code: 7030020300
Voltage: 24Vac
Consumption: 5VA
Working pressure of the solenoid valve: vacuum at 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10oC to 60oC.
Nominal diameter: 15mm.
Flow rate at 6 bars p 1 bar: 4600 Nl/min.
Manual drive: Yes.

Dimensiones electroválvulas 1/2-3/2 biestable metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
