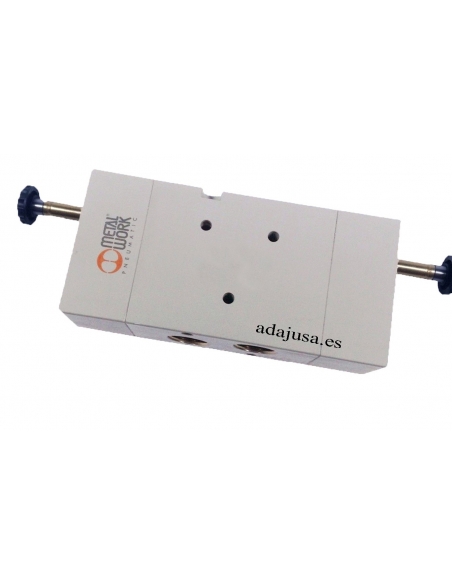

Solenoid valve 1/2 3 bistable roads assisted without coil - Metal Work - adajusa.es
24Vdc 5W T22 x 8 solenoid valve coil - Metal Work
Solenoid valve connector size 22
Solenoid valve 1/2 3 ways bistable assisted 110Vac 5VA - Metal Work - adajusa.es
Solenoid valve 1/2 3 bistable roads assisted without coil - Metal Work - adajusa.es
24Vdc 5W T22 x 8 solenoid valve coil - Metal Work
Solenoid valve connector size 22

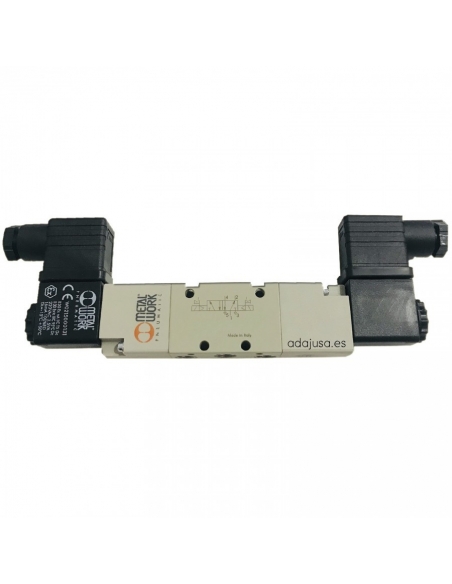

Solenoid valve 1/2 3-way assisted bistable 110Vac 5VA - Metal Work

€216.96 Tax included

€177.84 tax excl.

PK-E123BIA110
1/2 3-way bistable assisted, closed (NC) solenoid valve for industrial and general use applications.

Solenoid valve coil 110Vac 5VA T22 diameter 8 - Connector 22 mm



Logo-Metal-Work

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2 3-way assisted bi-stable pneumatic solenoid valve. For general and industrial applications. This solenoid valve needs an external pneumatic pressure socket for pilot operation, allowing you to work even in vacuum applications.

Solenoid valve coil 110Vac 5VA T22 diameter 8

22mm plastic connector

Supply includes:

  • 1 Solenoid valve 1/2" 3/2 assisted bistable
  • 2 Coils 110Vac 5VA
  • 2 Connectors 22 mm

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: SOV43SEBOO Code: 7030020300
  • Voltage: 110Vac
  • Consumption: 5VA
  • Working pressure of the solenoid valve: vacuum at 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 15mm.
  • Flow rate at 6 bars p 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvulas 1/2-3/2 biestable metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
