Solenoid valve 1/2 5 ways monostable - Metal Work

Name: Solenoid valve 1/2 5 ways monostable - Metal Work
Brand: Metal Work
SKU: 7030021100
Price: 181.79 EUR
Availability: BackOrder

€181.79 Tax included

149.01 tax excl.

7030021100

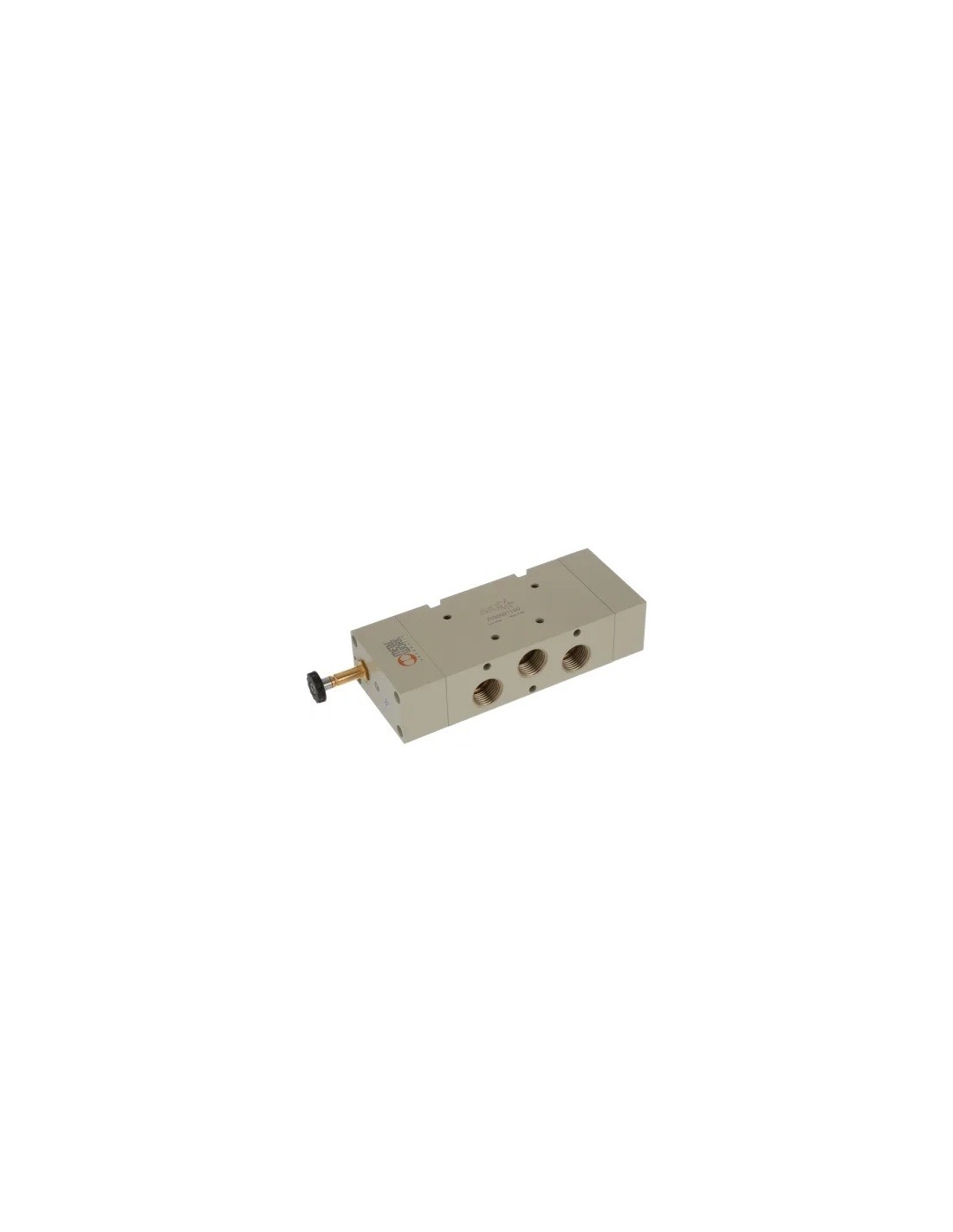

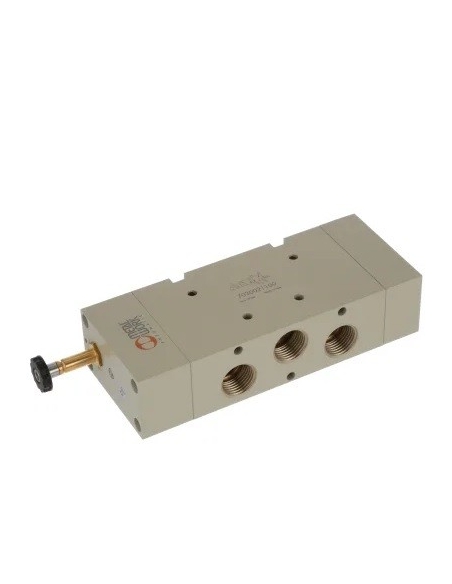

Solenoid valve 1/2 5 ways monostable mechanical spring without coil, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.
Reference: 7030021100

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/2 5-way monostable single-stable pneumatic solenoid valve without coil. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference:7030021100 SOV 45 SOS OO
Working pressure of the solenoid valve: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10oC to 60oC.
Nominal diameter: 15mm.
Flow rate at 6 bars p 1 bar: 4600 Nl/min.
Manual drive: Yes.

dimensiones-electrovalvula-1-2-5-vias-2-posiciones

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Valve Schematic

Valve schematic and description

Download (597KB)

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
