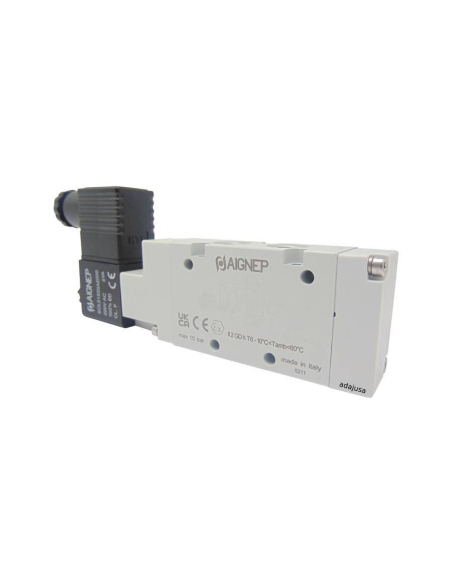

Solenoid valve 1/2 5 ways monostable 24Vac 5VA - Aignep

Name: Solenoid valve 1/2 5 ways monostable 24Vac 5VA - Aignep
Brand: Aignep
SKU: 01VS050005-24Vac
Price: 115.8091 EUR
Availability: InStock

€115.81 Tax included

€95.71 tax excl.

Complete 1/2 5 way monostable solenoid valve, with 24Vac coil and 5VA consumption, connector size 22mm, with G1/2" threads, anodized aluminum body, NBR seals.

Reference: 01VS050005-24Vac

Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.49

Coil solenoid valve 24Vac 5VA Coil Size 22mm diameter 9 - Aignep

€4.20

Solenoid valve 1/2 5/2 single solenoid - Aignep

€110.12

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve 1/2 5 ways monostable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coil of 24Vac 5VA and connector.

The supply includes:

1/2" 5 way pneumatic solenoid valves
Coil 24Vac 5VA
Connector 22mm

Technical characteristics:

Manufacturer: Aignep
Part number: 01VS050005-24Vac
Type of threads: G 1/2"
Monostable bar: 2 to 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 5000 Nl/mi
Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
Class of isolation: F 155
Fluid: Filtered air without lubrication
Number of ways: 5
Operation: Monostable
Seal material: NBR
Rated voltage: 24Vac
Voltage tolerance: ±10%
Rated power: 5VA

Dimensiones electrovalvulas 1_8 5 vias monoestables Aignep Adajusa

Imagen construtiva electrovalvulas 3 vias Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
