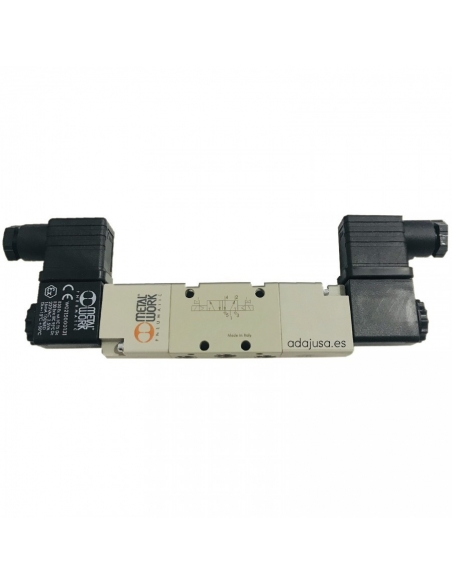

Solenoid valve 1/2 5 ways bistable 230Vac 5VA - Metal Work

€248.11 Tax included

203.37 tax excl.

PK-E125BI230

Solenoid valve 1/2 5 ways bistable without coil, for industrial applications and general use. With 230Vac connectors and coils


Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

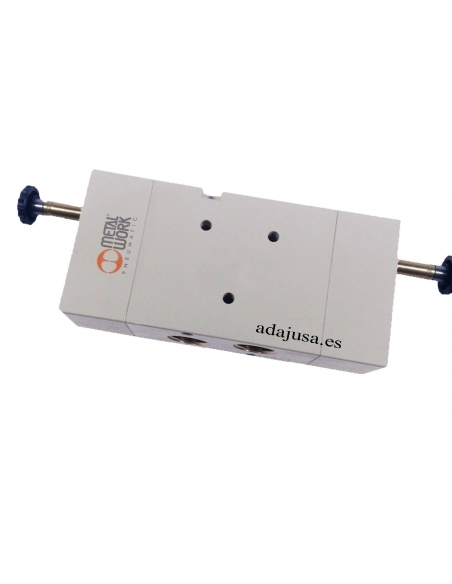

Pneumatic solenoid valve of 1/2 5 ways bistable. For general and industrial applications.

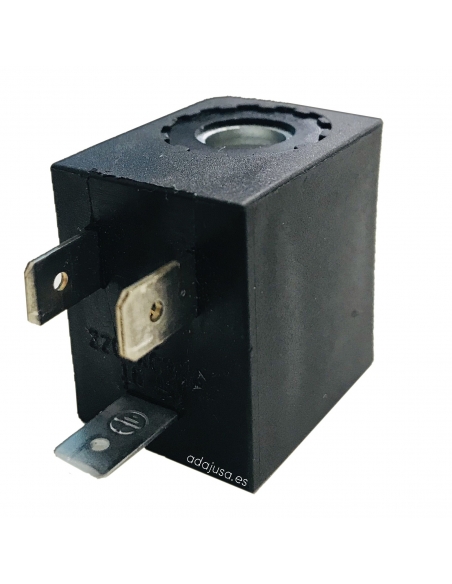

Solenoid valve coil 230Vac 5VA T22 diameter 8

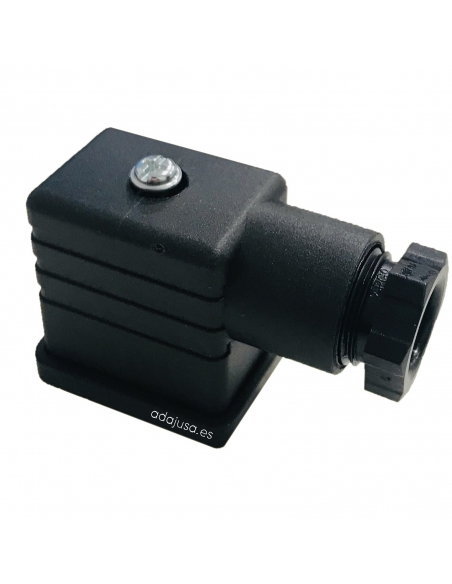

22 mm plastic connector

The supply includes:

  • 1 Solenoid valve 1/2" 5/2 bistable
  • 2 Coils 230Vac 5VA
  • 2 Connectors 22 mm

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Manufacturer reference: 7030021200 SOV 45 SOB OO
  • Voltage: 230Vac
  • Consumption: 5VA
  • Solenoid valve working pressure: vacuum at 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 15mm.
  • Flow at 6 bars Δp 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
