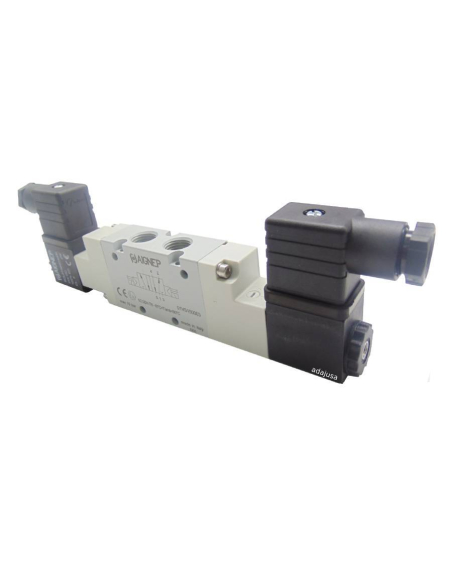

Solenoid valve 1/2 5/2 bistable 230Vac 5VA -...
Solenoid valve 1/2 5/2 bistable 230Vac 5VA - Aignep

Solenoid valve 1/2 5/2 bistable 230Vac 5VA - Aignep

€151.25 Tax included

€125.00 tax excl.

Solenoid valve complete 1/2 5 way bistable , with 230Vac coils and 5VA consumption, connectors size 22mm, with G1/2" threads, anodized aluminum body, NBR gaskets.

Reference: 01VS150005-230Vac
Esquema neumatico electrovalvula 5 vias biestable
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .



Solenoid valve pneumatic 1/2 5 way bistable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coils 230Vac 5VA and connectors.

The supply includes:

  • 1/2" 5" pneumatic solenoid valves way
  • 2 coils 230Vac 5VA
  • 2 connectors 22mm


Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS150005
  • Type of threads: G 1/2"
  • Monostable bar: 1 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 5000 Nl/mi
  • Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
  • Insulation class: F 155
  • Fluid: filtered air without lubrication
  • Number of way: 5
  • Operation: bistable
  • Seal material: NBR
  • Rated voltage: 230Vac
  • Voltage tolerance: ±10%
  • Rated power: 5VA
Dimensiones electrovalvulas 1_8 5 vias biestable Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
