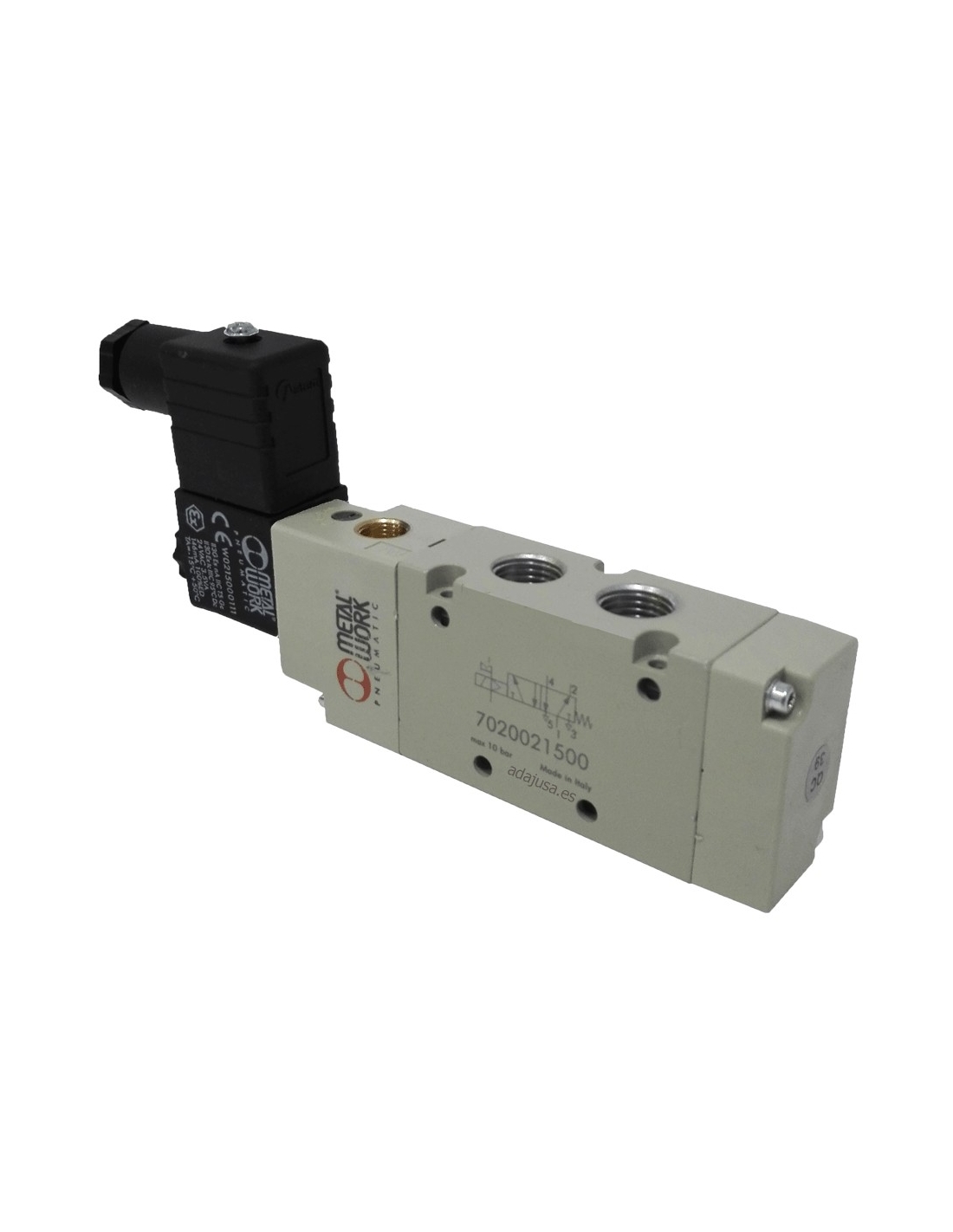

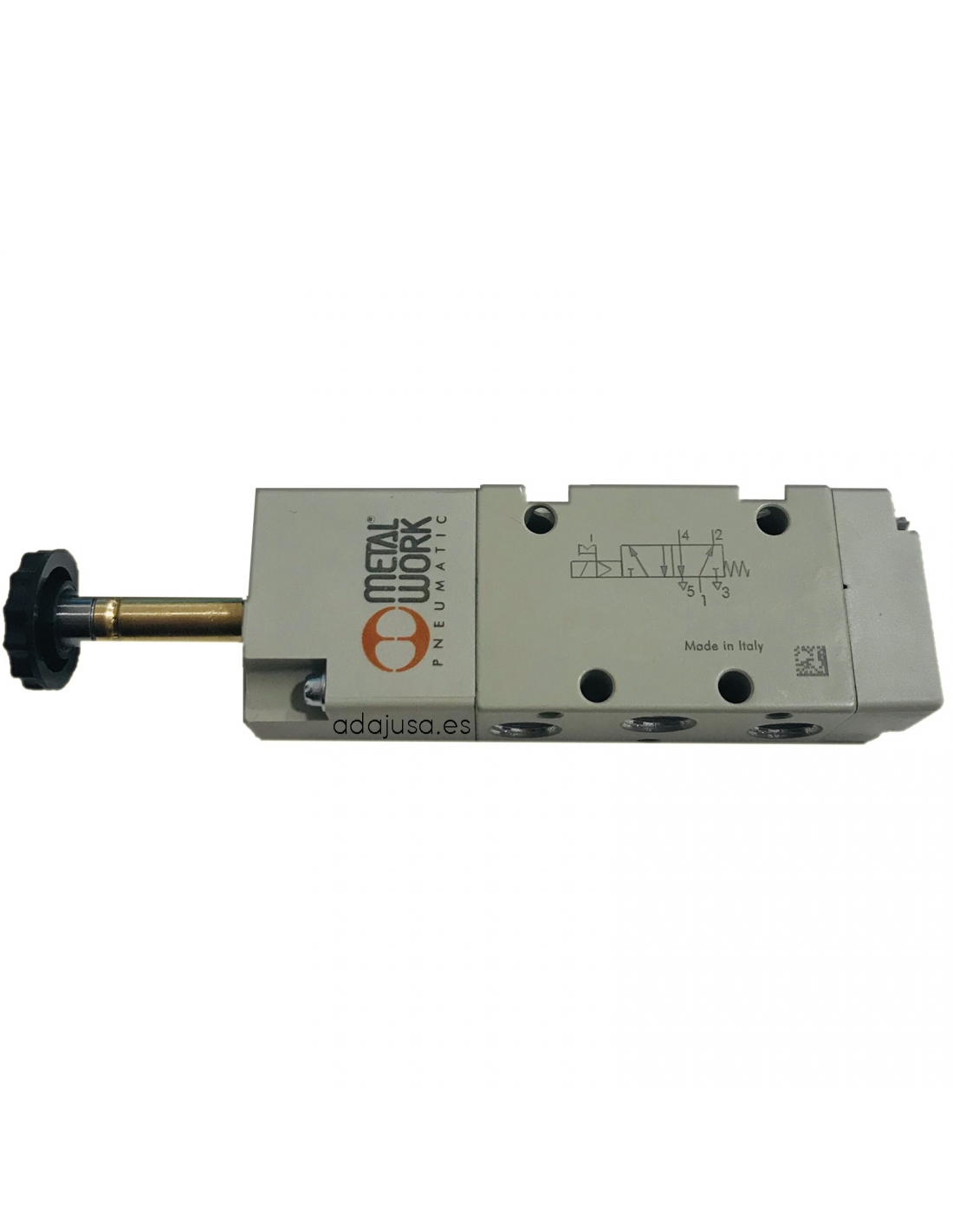

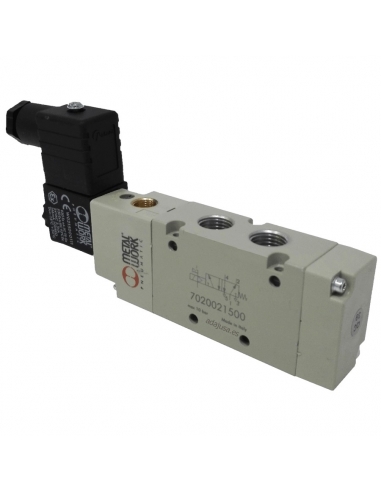

solenoid valve 1/4 5 ways monostable assisted 24Vdc 2W Metal Work

1/4 5-way monostable assisted pneumatic solenoid valve, for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with core of Ø8mm. The supply does not include coil or connector.

Made of aluminum, compact size and high air passage flow, short response time.

This electric valve, when assisted, needs pressure in the pilot intake, which is independent of the valve intakes, this allows to control fluids with very low pressures and even be used for vacuum applications.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm.

Plastic connector 22 mm

The supply includes:

• Solenoid valve 1/4 5/2 assisted monostable
• Coil 24Vdc 2W
• Connector 22 mm

Specifications:

• Solenoid valve manufacturer: Metal Work.
• Manufacturer reference: 7020021600 - SOV 35 SEB OO
• Type: 1/4-5/2 Assisted Monostable
• Thread: G 1/4"
• Voltage: 24Vdc
• Consumption: 2W
• Operating pressure: 0 bar÷10 bar
• Minimum working pressure for the pilot: 2.5 bar
• Working temperature: -10°÷ +60°C
• Nominal diameter: 5mm.
• Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
• Capacity at 6 bar ΔP 1 bar: 550 Nl/min
• TRA/TRR at 6 bar: 15 ms / 35 ms
• Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
• Weight: 0,242kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
