Solenoid valve 1/4 5 ways monostable assisted without coil - Metal Work

€74.97 Tax included

61.45 tax excl.

7020021500

1/4" 5-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.

Reference: 7020021500

Logo-Metal-Work

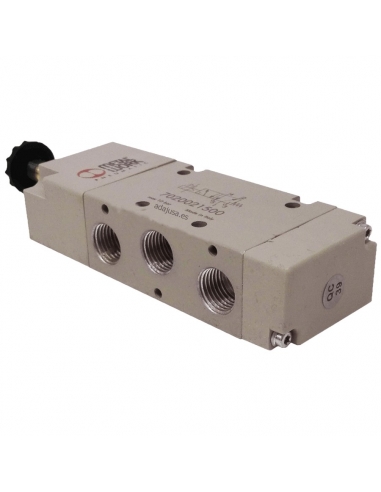

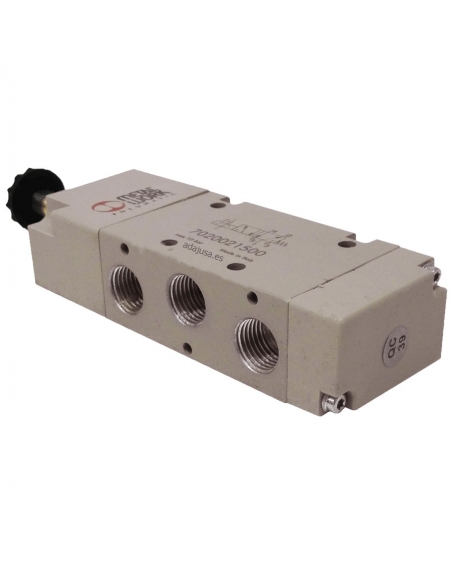

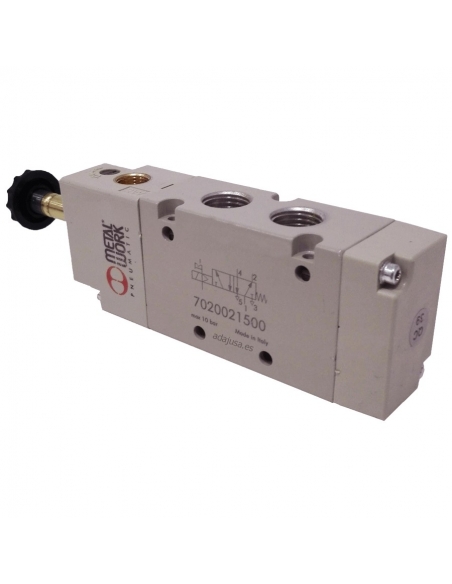

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/4 5 ways monostable assisted, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core. Supply does not include coil or connector.

Made of aluminum, compact size and high airflow, short response time.

This eléctrovalvula, when assisted, needs pressure in the pilot socket, which is independent of the valve sockets, this allows to control fluids with very low pressures and even be used for vacuum applications.

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: 7020021600 - SOV 35 SEB OO
  • Type: 1/4-5/2 Assisted monostable
  • Thread: G 1/4"
  • Operating pressure: 0 bar÷10 bar
  • Minimum working pressure for the pilot: 2.5 bar
  • Working temperature: -10oC ÷ +60oC
  • Nominal diameter: 5mm.
  • Capacity at 6 bar P 0.5 bar: 400 Nl/min
  • Capacity at 6 bar P 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0.242kg.
  • Manual drive: Yes.



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
