Solenoid valve 1/4 3 ways monostable assisted NC - Metal Work

Name: Solenoid valve 1/4 3 ways monostable assisted NC - Metal Work
Brand: Metal Work
SKU: 7020020500
Price: 69.61 EUR
Availability: BackOrder

€69.61 Tax included

€57.06 tax excl.

7020020500

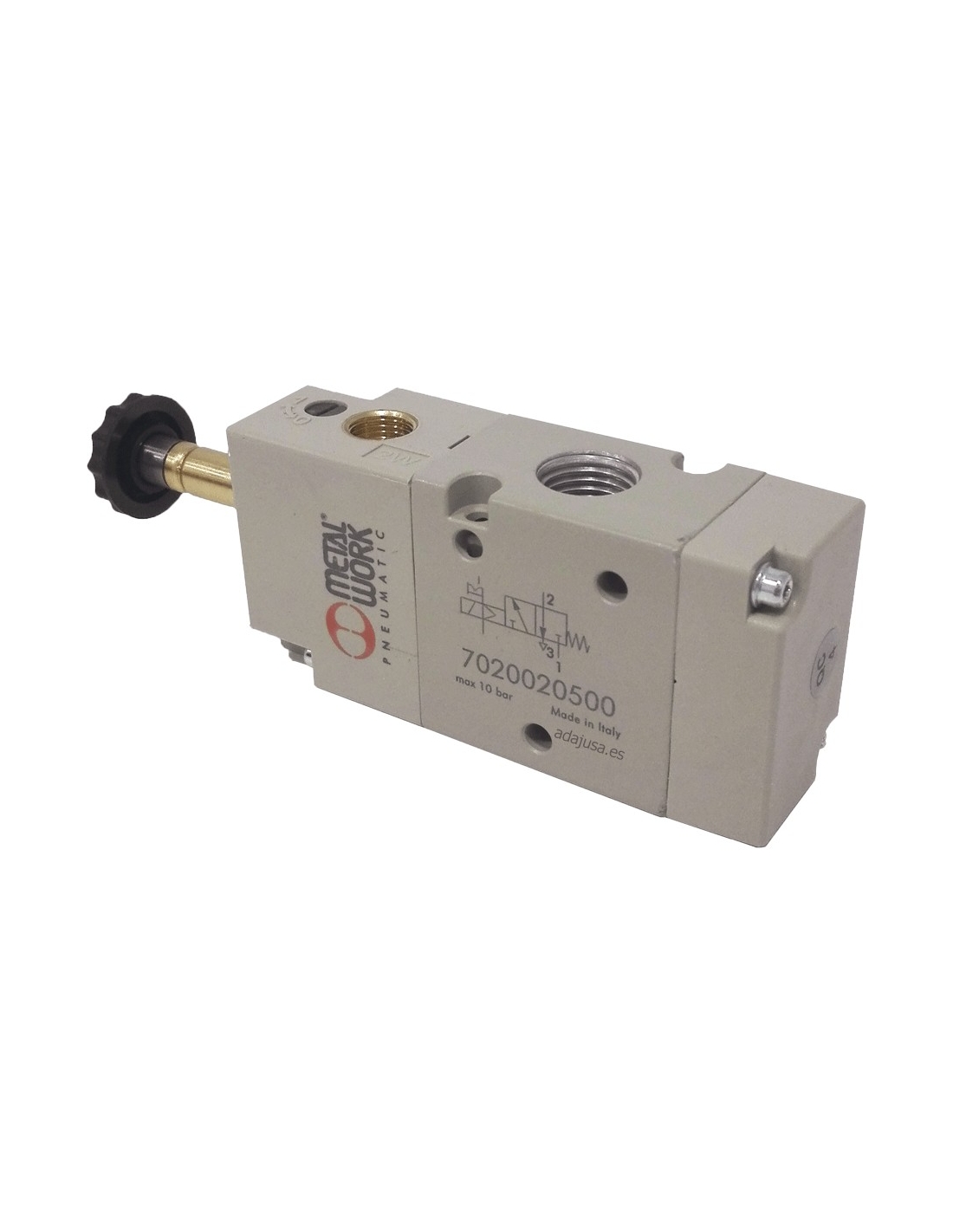

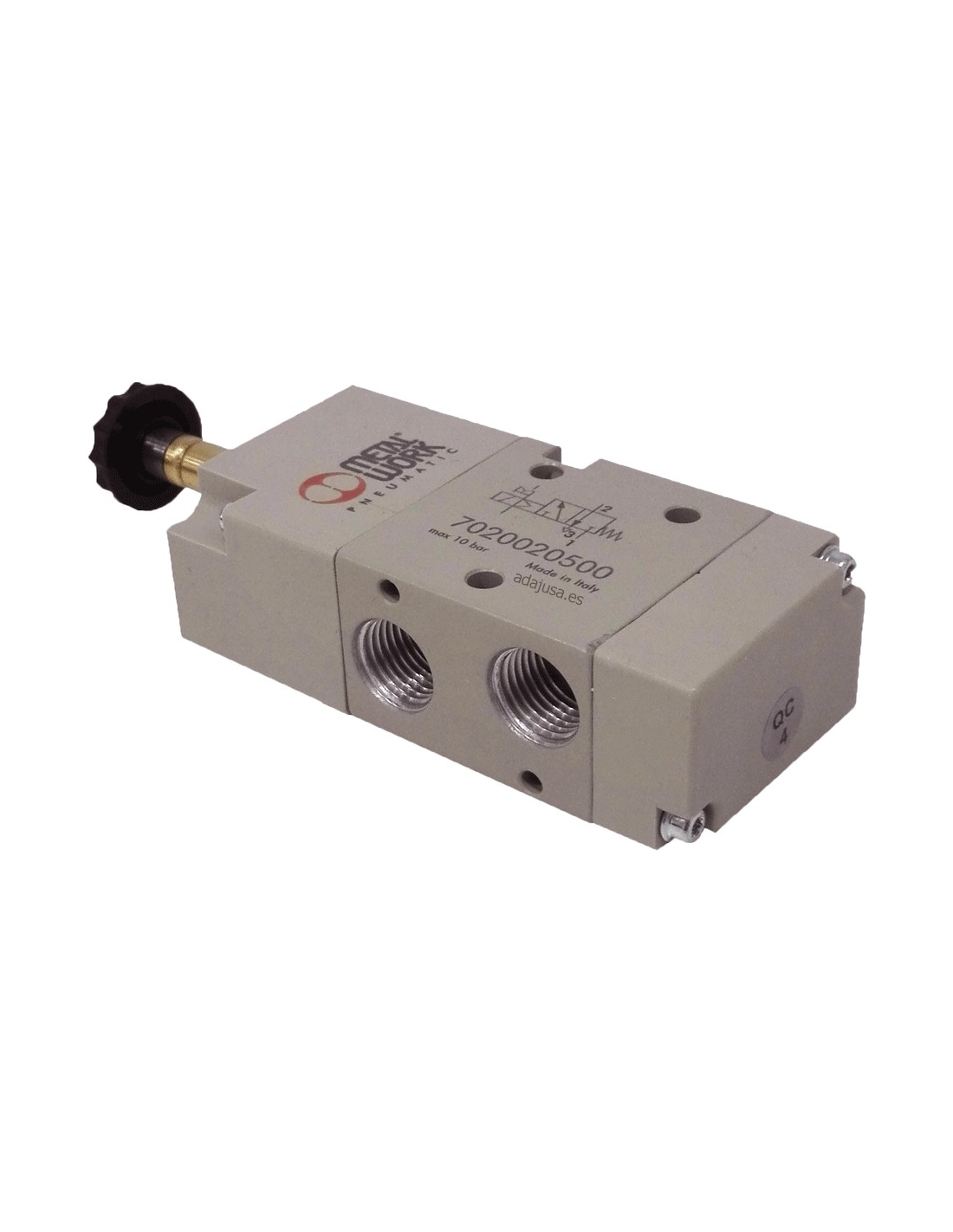

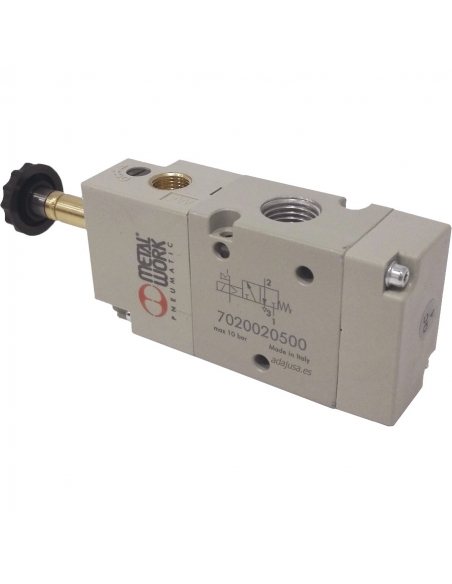

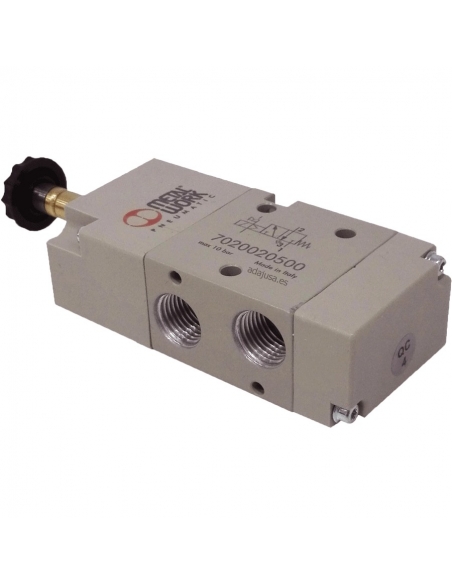

Solenoid valve 1/4" 3-way monostable assisted, closed (NC) pneumatic or industrial and general use applications. Supports coils (not included) of size 22mm with core of Ø8mm.

Reference: 7020020500

Esquema electrovalvula 3 vias asistida

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1/4 3-way monostable assisted pneumatic solenoid valve, usually closed (NC), for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with core of Ø8mm. The supply does not include coil or connector.

Made of aluminum, compact size and high air passage flow, short response time.

This electric valve, when assisted, needs pressure in the pilot intake, which is independent of the valve intakes, this allows to control fluids with very low pressures and even be used for vacuum applications.

Specifications:

Solenoid valve manufacturer: Metal Work.
Manufacturer reference: 7020020500 - SOV 33 SES NC
Type: 1/4-5/2 Assisted Monostable
Thread: G 1/4"
Operating pressure: Empty ÷ 10 bar
Minimum working pressure for the pilot: 2.5 bar
Working temperature: -10°÷ +60°C
Nominal diameter: 5mm.
Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
Capacity at 6 bar ΔP 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0,152kg.
Manual drive: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
