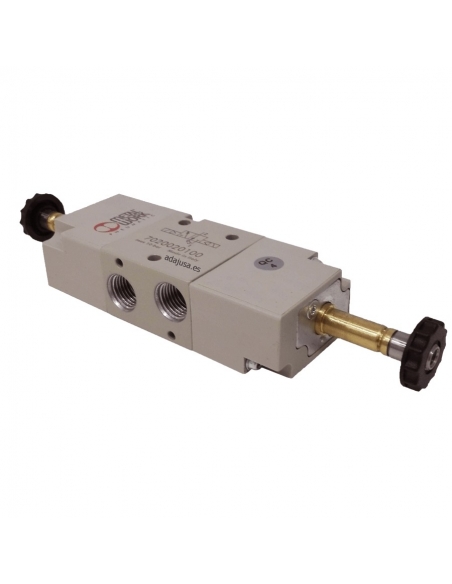

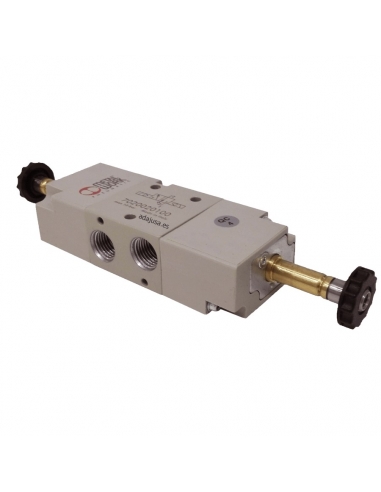

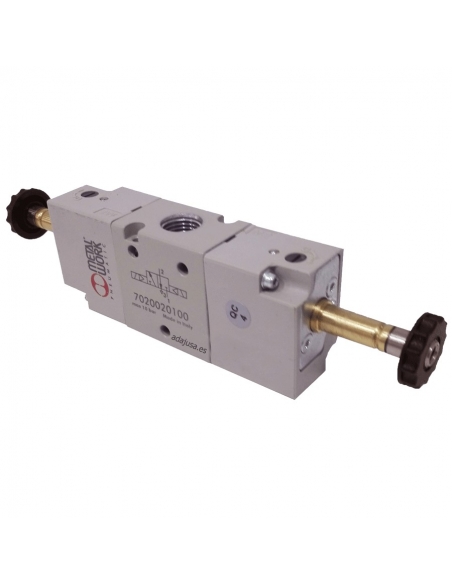

Solenoid valve 1/4 3 ways bistable without coil - Metal Work

Name: Solenoid valve 1/4 3 ways bistable without coil - Metal Work
Brand: Metal Work
SKU: 7020020100
Price: 90.768 EUR
Availability: InStock

€90.77 Tax included

€74.40 tax excl.

1/4" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. Supports 22mm size coils with Ø8mm core.

Reference: 7020020100

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 1/4 3 bistable roads, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core. Supply does not include coil or connector.

Made of aluminum, compact size and high airflow, short response time.

The feed pressure must be applied to toa 2, used in socket 1 and exhausted in socket 3.

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: 7020020100 - SOV 33 SOB OO
Type: 1/4-5/2 Biestable
Thread: G 1/4"
Operating pressure: 2.5 bar÷10 bar
Minimum working pressure: 2.5 bar
Working temperature: -10oC ÷ +60oC
Nominal diameter: 5mm.
Capacity at 6 bar P 0.5 bar: 400 Nl/min
Capacity at 6 bar P 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0.152kg.
Manual drive: Yes.

Dimensiones electrovalvula 1-8 biestable Metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
