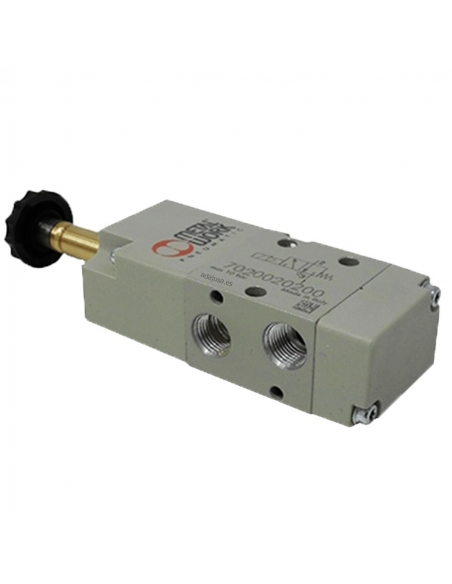

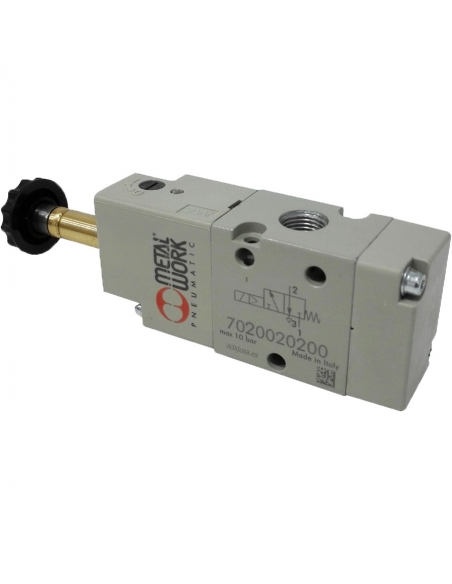

Electrovanne 1/4 3 voies monostable - Metal Work

€67.86 Tax included

€55.62 tax excl.

1/4" 3-way monostable pneumatic solenoid valve, closed (NC), for industrial applications and for general use. It accepts 22mm size coils (not included) with a Ø8mm core.

Reference: 7020020200

Solenoid valve diagram indirect control 3 ways NC

Logo-Metal-Work


Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 3-way monostable pneumatic solenoid valve, normally closed (NC), for industrial pneumatic applications or general use. Accepts 22mm size Metal Work spools with a Ø8mm core. The supply does not include coil or connector.

Made of aluminium, compact in size and with a high air flow rate, short response time.

Supply pressure is to be applied to port 2, use to port 1 and exhaust to port 3.

Technical characteristics:

  • Solenoid valve manufacturer: Metal work.
  • Manufacturer reference: 7020020200 - SOV 33 SOS NC
  • Type: 1/4-5/2 Monostable
  • Thread: G 1/4"
  • Operating pressure: 2.5 bar÷10 bar
  • Minimum working pressure: 2.5 bar
  • Working temperature: -10°÷ +60°C
  • Nominal diameter: 5mm.
  • Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
  • Capacity at 6 bar ΔP 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0.152kg.
  • Manual activation: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
