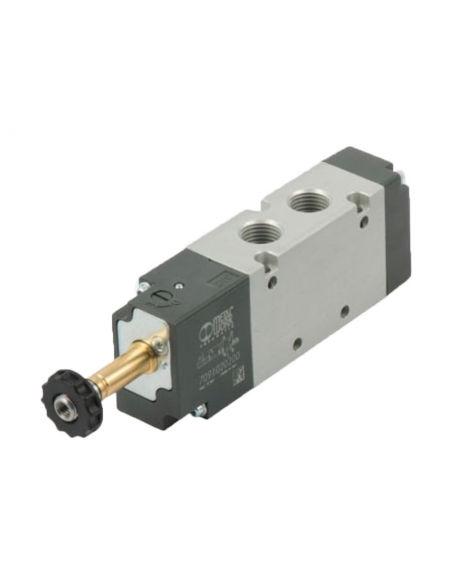

Solenoid valve 1/4 3/2 monostable NC 230 Vac BASIC - Metal Work

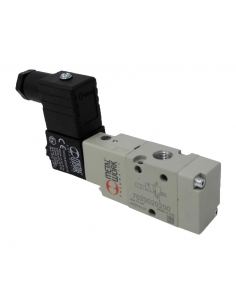

Pneumatic solenoid valve 1/4 3 ways, NC (normally closed) BASIC* series. It blocks the air flow when it is not activated and allows the air flow when its control is activated. With 230 Vac 3,5 VA coil and plastic connector

Delivery includes:

• Solenoid valve 1/4 3/2 moestable NC
• Coil 230 Vac 3,5 VA
• Plastic connector size 22

Technical characteristics:

• Manufacturer Metal Work
• Part number: Metal Work: ELPN 1/4 3/2 MON NC Code: 7091020200
• Type of threads: G 1/4"
• Monostable bar: 2.5 to 10
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 7.5
• Conductance C Nl/min - bar: 264.26
• Critical ratio b bar/bar: 0.27
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
• Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
• TRA/TRR monostable at 6 bar ms: 19/45
• TRA/TRR bistable at 6 bar ms: 21/21
• Tension tolerances %: -10 ÷ +15
• Class of isolation: F 155
• Fluid: Filtered air without lubrication.
• Rated voltage: 220-230 Vac
• Rated power: 3,5VA

a) Body of the valve: anodized aluminum
b) Controller / End cap: plastic
c) Slide: chemically nickel plated aluminum
d) Spacers: plastic
e) Seals: NBR
f) Pistons: Hostaform
g) Piston seals: NBR
h) Springs: special steel
i) Operator: brass tube - stainless steel core

Material for professional use, install in compliance with the regulations in force at the place of installation.a

* Basic Series: The body is made of anodized aluminum (unpainted) and the controls are in dark gray technopolymer. BASIC valves can be assembled with accessories from other valve families, in particular with 22 mm coils, 8 mm orifice and related connectors, modular bases and the multi-position connectors of the 70 series valves.
