24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work

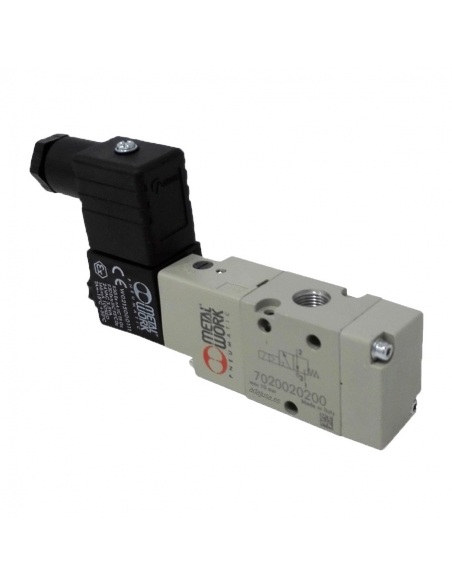

solenoid valve 1/4 3 monostable vias 110Vac 3.5VA - Metal Work - ADAJUSA

Solenoid valve 1/4 3 vias monostable 110Vac 3.5VA - Metal Work

Name: Solenoid valve 1/4 3 vias monostable 110Vac 3.5VA - Metal Work
Brand: Metal Work
SKU: PK-E143MO110
Price: 77.3358 EUR
Availability: InStock

€77.34 Tax included

€63.39 tax excl.

1/4" 3-way single-stable, closed (NC) pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm. Connector 22 mm

Esquema electrovalvula mando indirecto 3 vias NC

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.50

Solenoid valve 1/4 3 monostable roads - Metal Work - ADAJUSA

Electrovanne 1/4 3 voies monostable - Metal Work

€66.65

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€9.19

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4 3-way monostable, normally closed (NC) pneumatic solenoid valve for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core.
Made of aluminum, compact size and high airflow, short response time.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm

22mm plastic connector

The feed pressure must be applied to toa 2, used in socket 1 and exhausted in socket 3.

Supply includes:

Solenoid valve 1/4 3 monostable roads
Coil 110Vac 3.5VA
22mm connector

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: 7020020200 - SOV 33 SOS NC
Type: 1/4-5/2 Monostable
Thread: G 1/4"
Operating pressure: 2.5 bar÷10 bar
Minimum working pressure: 2.5 bar
Voltage: 110Vac
Consumption: 3.5VA
Working temperature: -10oC ÷ +60oC
Nominal diameter: 5mm.
Capacity at 6 bar P 0.5 bar: 400 Nl/min
Capacity at 6 bar P 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0.152kg.
Manual drive: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
