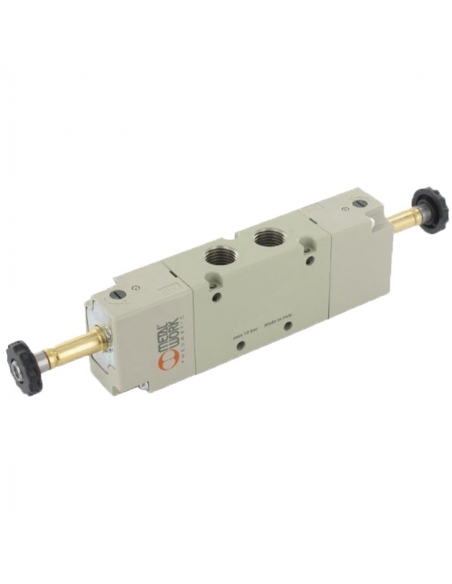

Double solenoid valve 1/4 3/2 assisted tracks - Metal Work - ADAJUSA

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

Double solenoid valve 1/4 3/2 assisted no with coils - Metal Work - ADAJUSA

Double solenoid valve 1/4 3/2 assisted tracks NO 24Vcc - Metal Work

Name: Double solenoid valve 1/4 3/2 assisted tracks NO 24Vcc - Metal Work
Brand: Metal Work
SKU: PK-DA1432O24C
Price: 146.8514 EUR
Availability: PreOrder

€146.85 Tax included

€120.37 tax excl.

Solenoid valve 1/4 3/2 way double assisted NO output (normally open). With connector and 24 Vdc coils

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.50

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€9.19

Double solenoid valve 1/4 3/2 assisted tracks NO - Metal Work

€125.48

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Double pneumatic solenoid valve 1/4" 3/2 way assisted NO.The solenoid valve is normally open, i.e. without voltage on the coil, the fluid or air will be passing through the solenoid valve , when the coil is energized the passage of fluid or air will be interrupted.

The scope of delivery includes:

Double solenoid valve 1/4" 3/2 assisted NO
2 Coils 24 Vdc 2 W
2 T22 connectors

Technical characteristics:

Manufacturer Metal Work
Part number: Metal Work: SOV 38 SES NC Code: 7020023500
Thread type: G 1/4
Bistable bar: 2.5 ÷ 10
Minimum assistance pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 7.5
Conductance C Nl/min - bar: 264.26
Critical ratio b bar/bar: 0.27
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
TRA/TRR monostable at 6 bar ms: 19/45
TRA/TRR bistable at 6 bar ms: 21/21
Tension tolerances %: -10 ÷ +15
Class of isolation: F 155
Voltage: 24 Vdc
Power: 2 W

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
