Solenoid valve 1/8 5 ways monostable coil 230Vca - Mindman

Solenoid valve 1/8 5 ways monostable coil 230Vca - Mindman

€42.59 Tax included

€35.20 tax excl.

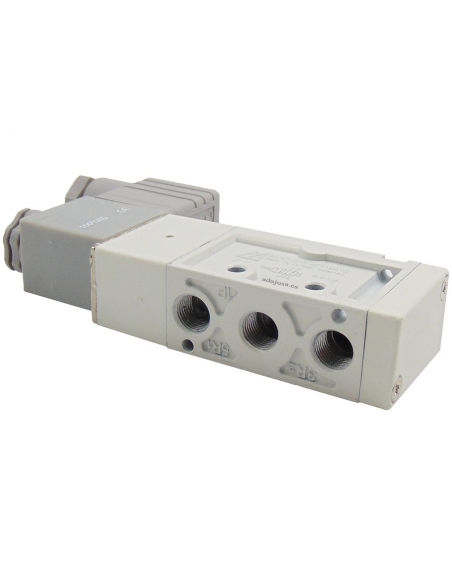

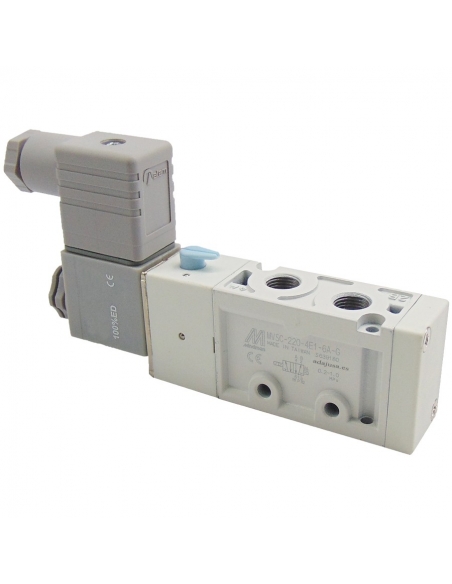

1/8" 5-way monostable pneumatic solenoid valve, with 230Vca coil and 22 mm connector.

Reference: 281MVSC2204E161

Esquema neumatico electrovalvula 5 vias monoestable


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic solenoid valve of 1/8 5 ways monostable, with coil of 230Vca. For general and industrial applications.

The supply of the solenoid valve includes:

  • Solenoid valve 1/8-5/2 monostable
  • Coil 220-240Vca or 110Vdc
  • T22 connector

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: 281MVSC2204E16A1
  • Thread type: G 1/8" (Threaded exhausts G 1/8").
  • Coil voltage: 230Vca.
  • Coil power: 6VA
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 8 bar.
  • Minimum working pressure: 2 bar
  • Maximum pressure: 10 bar.
  • Working temperature: -10ºC to 50ºC.
  • Effective surface: 18mm².
  • Flow: 799 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvulas Serie MVSC220 5 vías 2 posiciones Mindman


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
