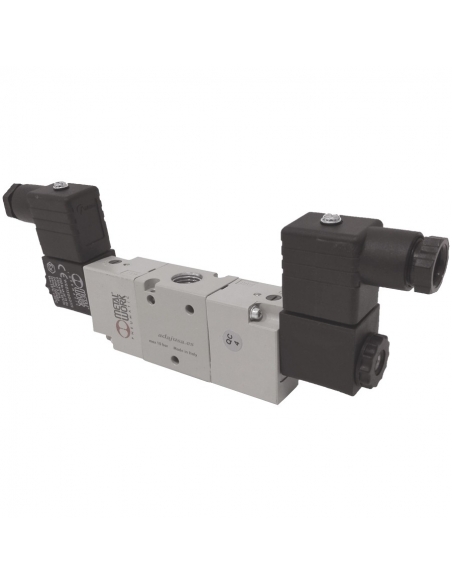

Solenoid valve 3/8 3-way bistable assisted 24 Vdc- Metal Work

Name: Solenoid valve 3/8 3-way bistable assisted 24 Vdc- Metal Work
Brand: Metal Work
SKU: PK-383AB24C
Price: 125.37 EUR
Availability: BackOrder

€125.37 Tax included

102.76 tax excl.

PK-383AB24C

Pneumatic solenoid valve of 3/8" 3 bistable assisted tracks, for industrial applications and general use. With 24Vdc connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.51

Coil for solenoid valve 24Vcc Metal Work W0215000101 Price adajusa

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€9.28

Solenoid valve 3/8 3-way bistable assisted - Metal Work

€103.77

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 3/8 3 ways 2 positions assisted bistable. For general and industrial applications.

The supply includes:

Solenoid valve 3/8 3/2 bistable assisted
2 Coils 24Vdc 2 W
2 T22 connectors

Characteristics:

Provider: Metal Work
Solenoid valve reference: 7040020100- SOV C3 SEB OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15
Voltage: 24Vdc
Power: 2 W

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

Metal Work

W0215000111

€9.28 (€7.61 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm. Valid for solenoid valves with 8mm actuator core.Reference: W0215000111 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Coil for solenoid valve 110Vac Metal Work W0215000121 Price

Accessories for solenoid valves

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

Metal Work

W0215000121

€9.28 (€7.61 tax excl.)

Coil for solenoid valve size 22mm, voltage 110Vca., with a consumption of 3.5VA, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core. Reference: W0215000121 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Luminous valve connector size 22 with VDR 220V - ADAJUSA

Accessories for solenoid valves

Solenoid valve connector luminous size 22 with VDR 220V

Metal Work

W0970510017

€7.69 (€6.30 tax excl.)

Connector for solenoid valve with VDR 220 V protector and LED indication. For 22mm coils. Reference: W0970510017Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Solenoid valves 3/8

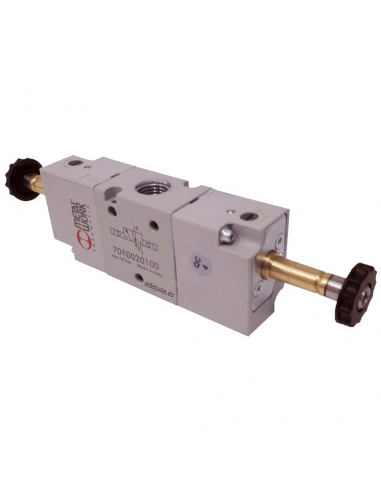

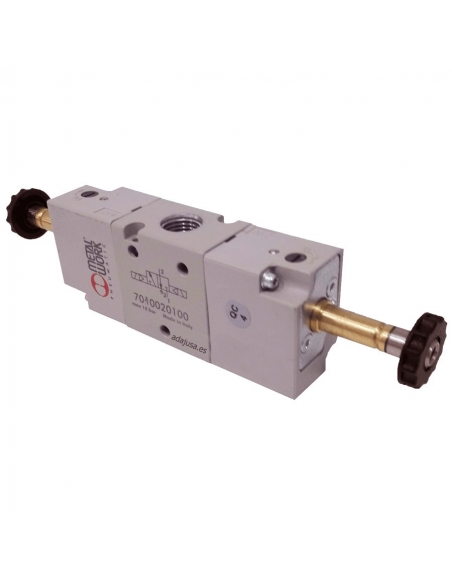

Solenoid valve 3/8 3 ways bistable - Metal Work
