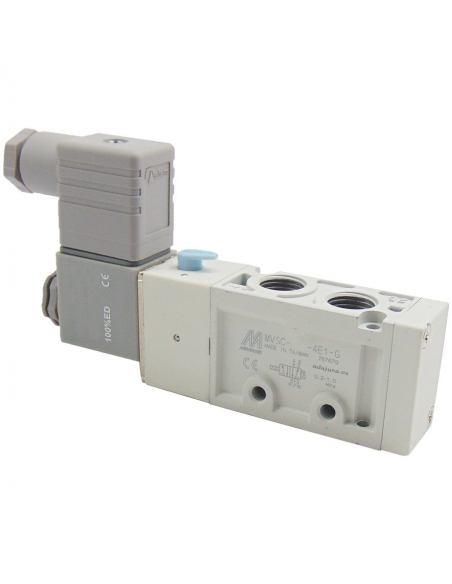

Pneumatic solenoid valve of 3/8 5 ways monostable, with coil of 230Vac. For general and industrial applications.
The supply of the solenoid valve includes:
- Solenoid valve 3/8-5/2.
- 1 Coil 230Vac
- 1 x 22mm connector
Specifications:
- Solenoid valve manufacturer: Mindman.
- Reference: 281MVSC3004E11
- Thread type: G 3/8"
- Coil voltage: 230Vac.
- Coil power: 2.5W.
- Fluid type: Pressurized air, with or without lubrication.
- Solenoid valve working pressure: 2 to 8 bar.
- Test pressure: 1 MPa
- Effective selection: 35mm²
- Working temperature: -5ºC to 50ºC.
- Weight: 293 g.
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab
