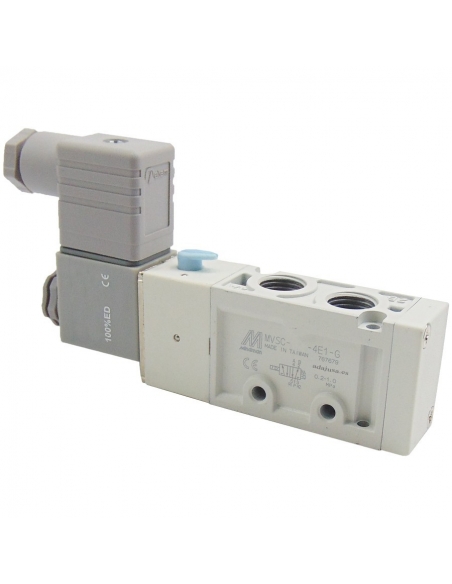

Solenoid valve 3/8 5 way monostable coil 110Vac - Mindman S.300

Name: Solenoid valve 3/8 5 way monostable coil 110Vac - Mindman S.300
Brand: Mindman
SKU: MVSC3004E13
Price: 47.30 EUR
Availability: BackOrder

Delivery in 3 days

€47.30 Tax included

€38.77 tax excl.

MVSC3004E13

Pneumatic solenoid valve of 3/8" 5 ways monostable, with connector and operating voltage of 110Vac.

Reference: 281MVSC3004E13

Esquema neumatico electrovalvula 5 vias monoestable

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 3/8 5 ways monostable, with coil of 110Vac. For general and industrial applications.

The supply of the solenoid valve includes:

Solenoid valve 3/8-5/2.
1 Coil 110Vac
1 x 22mm connector

Specifications:

Solenoid valve manufacturer: Mindman.
Reference: 281MVSC3004E13
Thread type: G 3/8"
Coil voltage: 110Vac.
Coil power: 2.5 W.
Fluid type: Pressurized air, with or without lubrication.
Solenoid valve working pressure: 2 to 8 bar.
Test pressure: 1 MPa
Effective selection: 35mm²
Working temperature: -5ºC to 50ºC.
Weight: 293 g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valve sheet MVSC300

Download (912.26KB)
