Solenoid valve 3/8 3 ways monostable NO - Metal Work

Name: Solenoid valve 3/8 3 ways monostable NO - Metal Work
Brand: Metal Work
SKU: 7040020400
Price: 87.4862 EUR
Availability: PreOrder

€87.49 Tax included

€71.71 tax excl.

3/8" 3/2-way monestable pneumatic solenoid valve, (NO), for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.
Reference: 7040020400

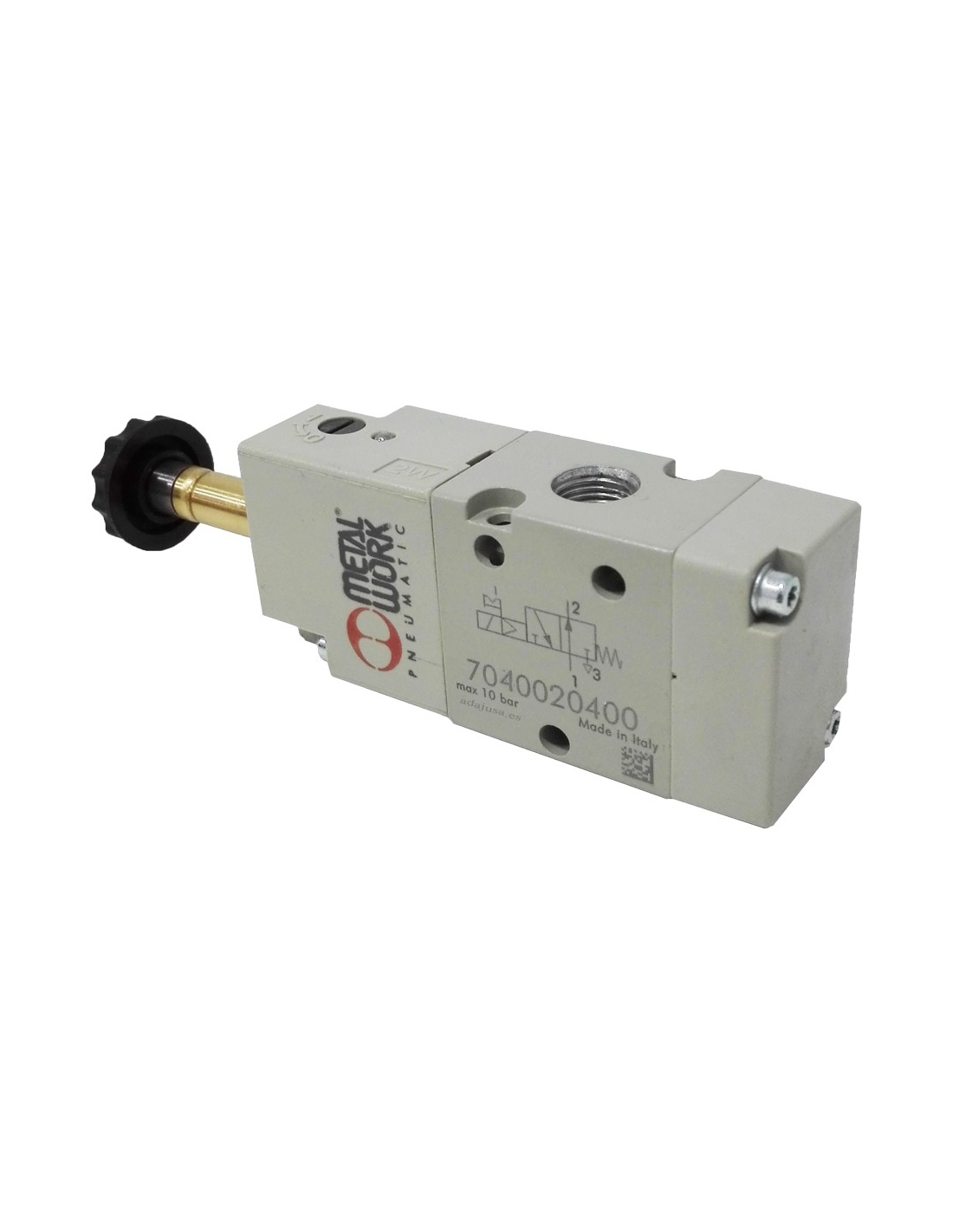

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 3/8 3 ways 2 monostable positions. For general and industrial applications. The solenoid valve is normally open (NO), without tension in the coil, the fluid or air will be passed through the solenoid valve, when the coil is put into tension the passage of the fluid or air will be interrupted.

Characteristics:

Provider: Metal Work
Reference: 7040020400 - SOV C3 SOS NO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)
