Solenoid valve 3/8 3 ways monostable NO 230 Vac - Metal Work

€101.76 Tax included

€83.41 tax excl.

PK-383NO230

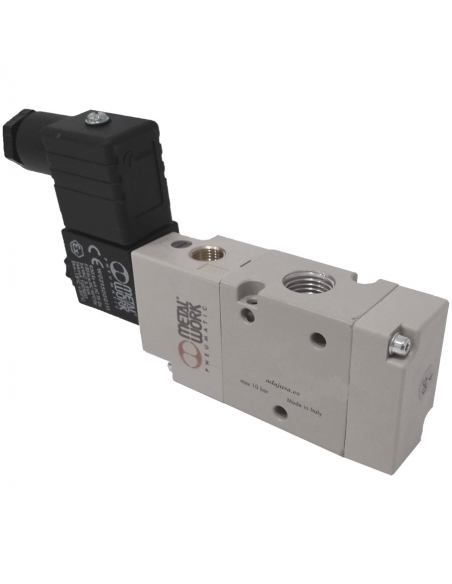

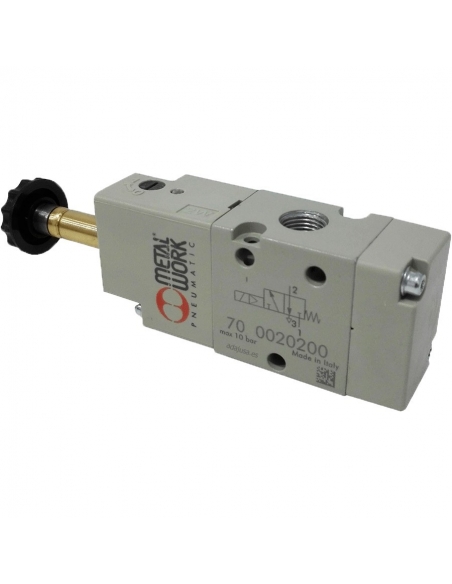

3/8" 3/2-way monestable pneumatic solenoid valve, (NO), for industrial and general use applications. Connector with coil 230 Vac


Logo-Metal-Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 3/8 3 ways 2 monostable positions. For general and industrial applications. The solenoid valve is normally open (NO), without tension in the coil, the fluid or air will be passed through the solenoid valve, when the coil is put into tension the passage of the fluid or air will be interrupted.

The supply includes:
  • Valve electorveve 3/8 3/2 monostable NO
  • Coil 230Vac - 3,50 VA
  • T22 connector
Features:
  • Provider: Metal Work
  • Solenoid valve reference: 7040020400- SOV C3 SOS NO
  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 13.3 mm
  • Conductance C Nl/min · bar: 505.52
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
  • Flow rate at 6 bar ΔP 1 bar Nl/min:2150
  • Monostable TRA/TRR at 6 bar ms: 21/72
  • Bistable TRA/TRR at 6 bar ms: 18/18
  • Coil voltage: 220 Vac - 240 Vac
  • Power: 3.50 VA
  • Voltage tolerances %: -10 ÷ +15


Material for professional use, install in compliance with the regulations in force at the place of installation.
