Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA

Solenoid valve 3/8 3 ways bistable - Metal Work - ADAJUSA

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

Solenoid valve 3/8 3 ways bistable 24 Vac- Metal Work

Name: Solenoid valve 3/8 3 ways bistable 24 Vac- Metal Work
Brand: Metal Work
SKU: PK-383B24A
Price: 125.37 EUR
Availability: BackOrder

€125.37 Tax included

102.76 tax excl.

PK-383B24A

3/8" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. With 24 Vac connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.51

Coil for solenoid valve 24VAC Metal Work W0215000111 Price adajusa

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€9.28

Solenoid valve 3/8 3 ways bistable - Metal Work

€103.77

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

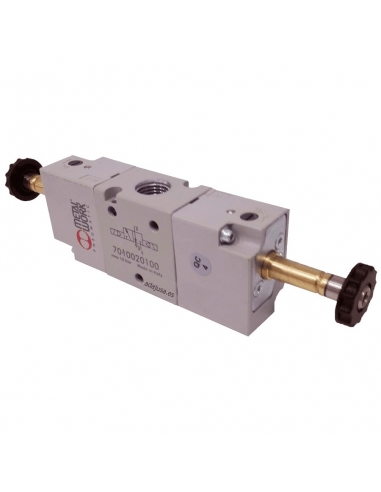

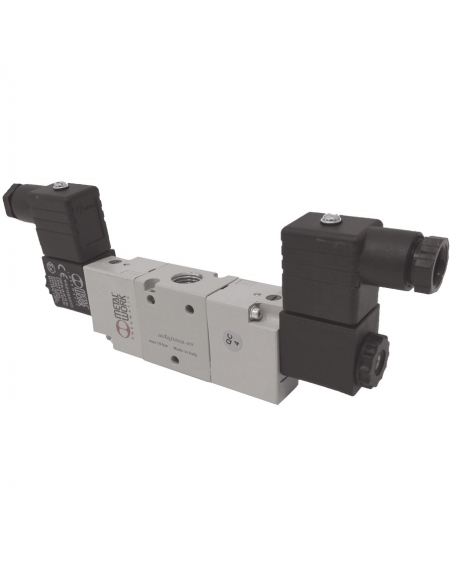

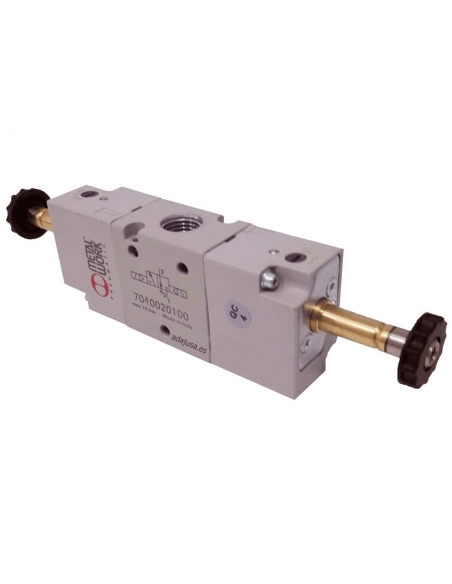

Pneumatic solenoid valve of 3/8 3 ways 2 bistable positions. For general and industrial applications.

The supply includes:

Solenoid valve 3/8 3/2 bistable
2 Coils 24Vca 3.5VA
2 T22 connectors

Characteristics:

Provider: Metal Work
Solenoid valve reference: 7040020100- SOV C3 SOB OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15
Voltage: 24Vac
Power: 3.5 VA

Material for professional use, install in compliance with the regulations in force at the place of installation.
